Forklifts

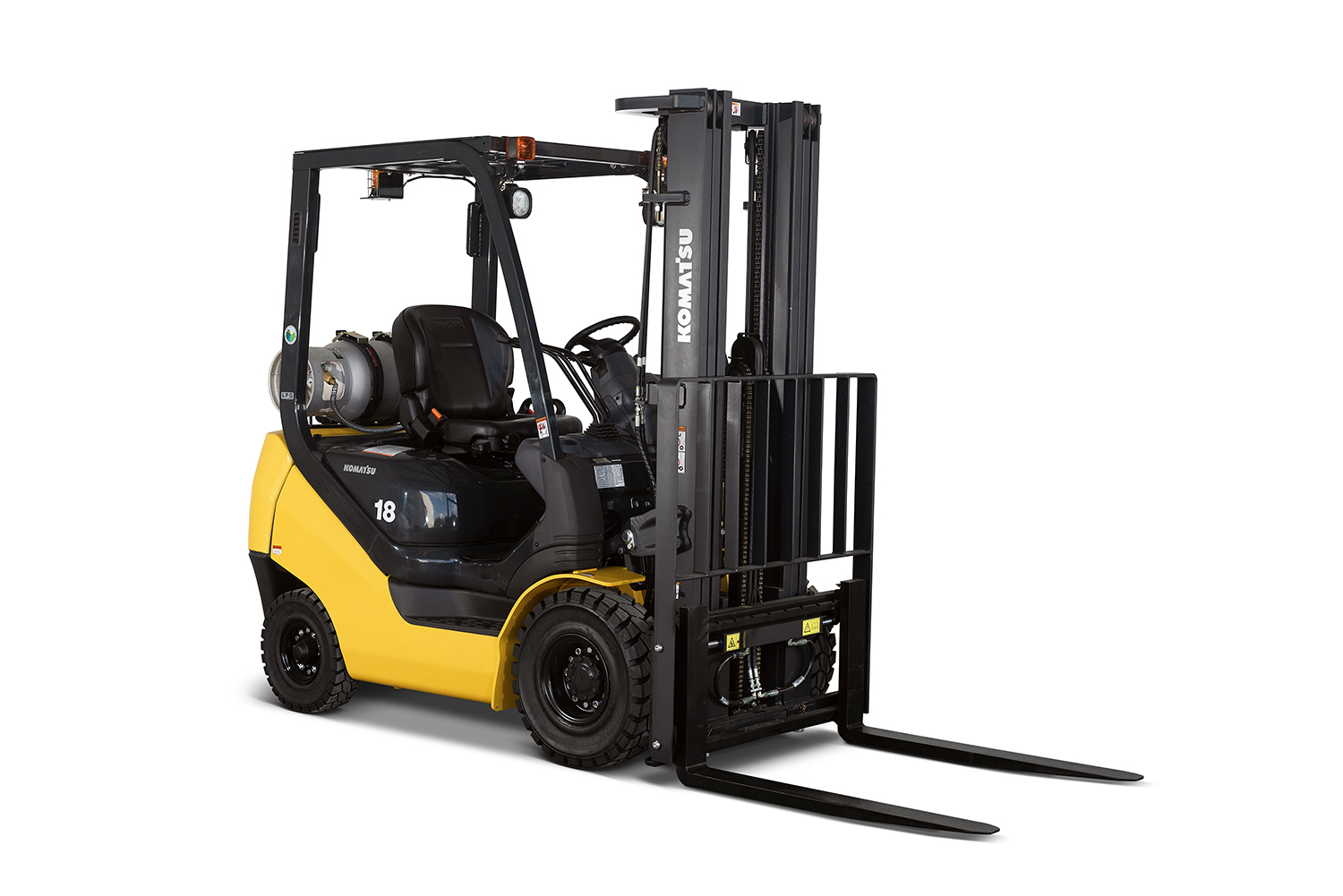

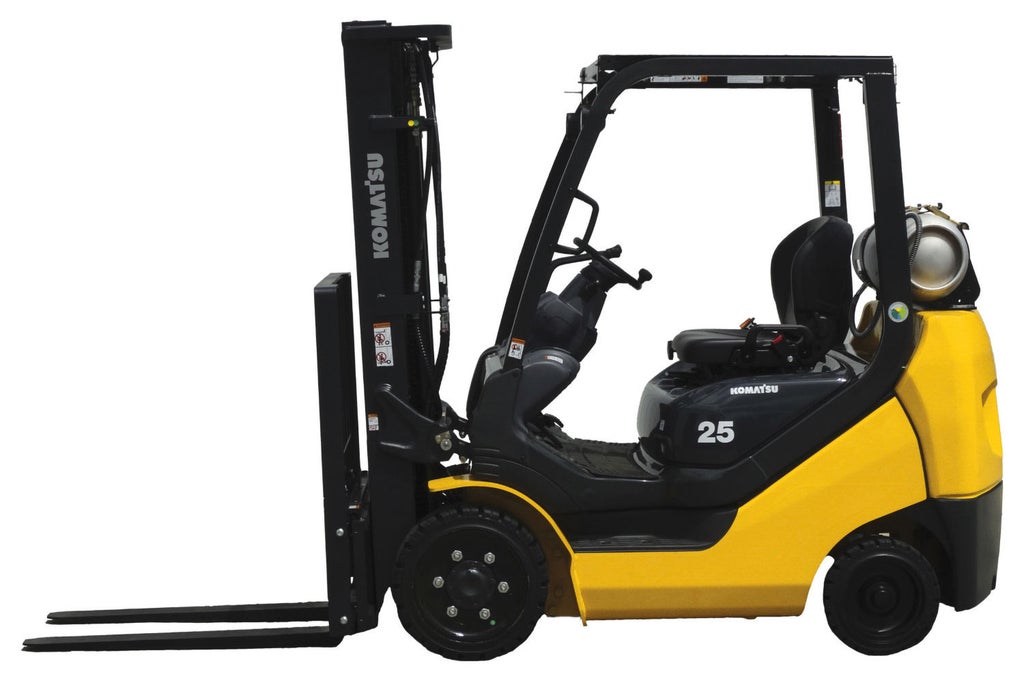

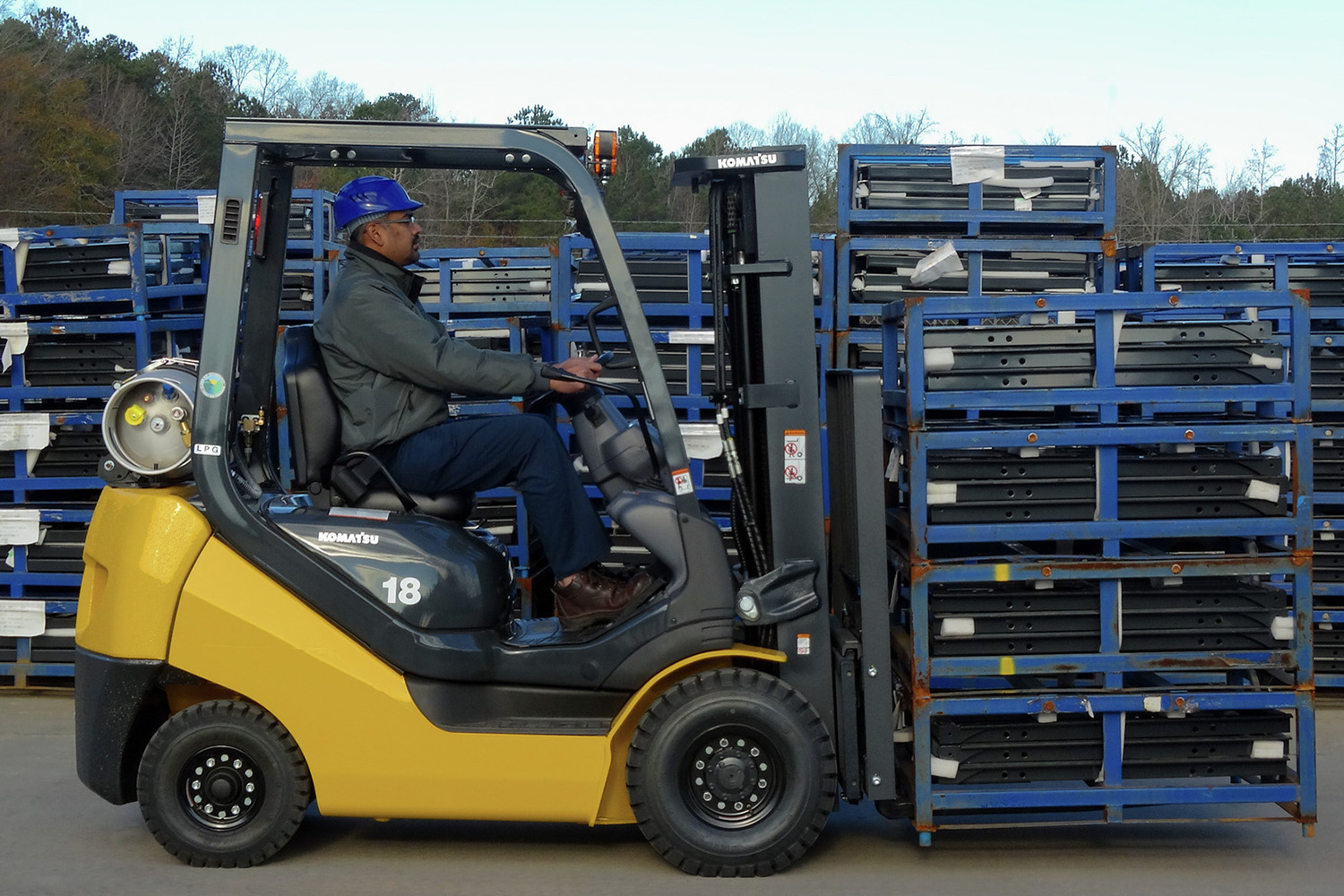

FG15HTU-20
IC pneumatic
- Tire type Pneumatic
- Power type LPG/Dual fuel
- Capacity (kg) 1 360 - 1 580
- Capacity (lbs) 3,000 - 3,500
Big power and performance in a small package
The AX50 is designed to move high volumes and big loads reliably. Integrating Komatsu’s 100-year history of rigorous engineering in mining and construction, it’s built for efficiency and productivity with operator comfort in mind.
- Optimized operator comfort and efficiency
- Fuel efficiency, low maintenance help lower costs
- Engineered for utmost durability and reliability
Features and benefits
Enhanced safety for employees and goods
The Komatsu Operator Presence System (KOPS) Plus, standard with AX50 series, locks out lift, lower, tilt and travel functions when the operator leaves the seat for more than three seconds. The forks cannot lower while the key is in the off position.
High-efficiency drivetrain
Our expertise in construction is behind the AX50’s full floating drive train. High torque delivered by powerful engines is channeled through a heat dissipating aluminum transmission case and a rugged dust- and leak-resistant, double-seal U-joint design.
Multiple solutions to reduce operator fatigue
The fully hydrostatic power steering (FHPS) system offers you easy steering even at slow speeds and is engineered to eliminate kickback. Further improving operator feel are a small-diameter steering wheel and optional spinner knob for one-handed control.
Advanced ergonomic design
Designed to improve operator comfort and reduce fatigue, the Komatsu Komfort Zone is a dual floating structure: dampening mounts protect the frame from engine vibration; additional mounts isolate your operators from the frame. Sealed floorboard reduces engine noise and heat.
Angled ports to manage exhaust and dust
Hot engine air, dust and exhaust can affect operators over time. The AX50 series’ angled exhaust ports in the counterweight aim exhaust away while traveling in reverse. Exhaust vents low on the counterweight point away from the ground and don’t stir up dust.
Excellent sightlines front and rear
An unrestricted view of the fork tips and surroundings for the operator. The thoughtfully designed EZ view mast, console and low-profile dash provide outstanding forward visibility. Upper corners of the counterweight are angled for clear sightlines in reverse.
Specifications
- Full specs
- Standard equipment
- Optional equipment
- Power source type: LPG / Dual Fuel
- Operation type: Sit-Down
- Capacity @ 600 mm load center (kg): 1 360
- Capacity @ 24 in load center (lbs): 3,000
- Wheelbase (mm): 1 400
- Wheelbase (in): 55.1
- Load distance from center axle (2 stage)(in): 15.4
- Load distance from center axle (2 stage)(mm): 390
- Relief pressure, maximum (psi): 2,630
- Relief pressure, maximum (bar): 182
- Transmission: Powershift
- Travel speed, forward, loaded/unloaded (kph): 18.5 / 19
- Travel speed, forward, loaded/unloaded (mph): 11.5 / 11.8
- Lifting speed, loaded/unloaded (2-stage mast) (fpm): 116 / 126
- Lifting speed, loaded/unloaded (2-stage mast) (mm/s): 590 / 640
- Lowering speed, loaded/unloaded (2-stage mast) (mm/s): 500 / 550
- Lowering speed, loaded/snloaded (2-stage mast) (fpm): 98.4 / 108.3
- Maximum drawbar pull, loaded (kN): 16.7
- Maximum drawbar pull, loaded (lbs): 3,700
- Maximum gradeability (%): 39
- Service brake, operation/control: Foot / Hydraulic
- Parking brake, operation/control: Hand / Mechanic
- Steering type: FHPS
- Maximum torque (SaE net)(Nm): 159 Nm @ 1 600 rpm
- Maximum torque (SaE net)(lbs-ft): 117 lbs.-ft. @ 1,600 rpm
- Rated output (SaE Net) (HP): 54 HP @ 2,700 rpm
- Rated output (SaE Net) (kW): 40 kW @ 2 700 rpm
- Engine manufacturer / model: GCT / GK21
- Fuel tank capacity (L): 40
- Fuel tank capacity (US gal): 10.6
- Number of cylinders / Displacement (cm^3): 4 / 2 065
- Number of cylinders / Displacement (in^3): 4 / 126
- Height overhead guard (mm): 2 070
- Ground clearance, center of wheelbase (mm): 130
- Ground clearance, center of wheelbase (in): 5.1
- Tilting angle, 2-Stage (FV) masts, forward/backward: 6 / 8
- Tilting angle, 3-Stage (TFV) masts, forward/backward: 6 / 5
- Free lift height(2-stage std. mast) (mm): 140
- Free lift height(2-stage std. mast) (in): 5.5
- Forks, thickness x width x length (in): 1.6 x 3.9 x 42
- Forks, thickness x width x length (mm): 40 x 100 x 1070
- Carriage width/ITa class (mm): 1 040 mm / II
- Carriage width/ITa class (in): 41 in / II
- Ground clearance, under mast (in): 140
- Ground clearance, under mast (mm): 5.5
- Length to fork face (2-stage mast) (in): 87.6
- Length to fork face (2-stage mast) (mm): 2 225
- Height overhead guard (in): 81.5
- Maximum fork height(2-stage std. mast) (mm): 3 250
- Maximum fork height(2-stage std. mast) (in): 128
- Mast height - extended(2-stage std. mast) (in): 176
- Mast height - extended(2-stage std. mast) (mm): 4 470
- Mast height - lowered (2-stage std. mast) (mm): 2 170
- Mast height - lowered (2-stage std. mast) (in): 85.5
- Turning radius, outside (mm): 1 955
- Turning radius, outside (in): 77
- Overall width at drive tires (in): 42.1
- Overall width at drive tires (mm): 1 070
- Right angle stacking aisle(2-stage mast w/o load length & clearance) †† (mm): 2 345
- Length, with standard forks (in): 129.7
- Length, with standard forks (mm): 3 295
- Right angle stacking aisle(2-stage mast w/o load length & clearance) †† (in): 92.4
- Tire type details: Pneumatic
- Number of wheels, front/rear: 2x / 2
- Tire size - front: 6.5 - 10 - 10PR (I)
- Tire size - rear: 5 - 8 - 8PR (I)
- Tread - front (in): 35
- Tread - front (mm): 890
- Tread - rear (in): 35.2
- Tread - rear (mm): 895
- Axle loading - loaded front (kg): 3 525
- Axle loading - loaded front (lbs): 7,770
- Axle loading - loaded rear (lbs): 1,170
- Axle loading - loaded rear (kg): 530
- Axle loading - unloaded front (kg): 1 190
- Axle loading - unloaded front (lbs): 2,620
- Axle loading - unloaded rear (kg): 1 505
- Axle loading - unloaded rear (lbs): 3,320
- Service weight (kg): 2 695
- Service weight (lbs): 5,940
- EPA-compliant GK21 industrial Engine with high torque at low RPMs for power and fuel efficiency
- Komfort zone dual floating structure
- Full floating transmission
- Spinner knob steering wheel
- Self-adjusting brakes
- EZ view mast
- KOPS Plus lock lift/Travel interlock
- Low-profile dash display
- Drawbar pin in counterweight
- Electronic ignition, anti-restart ignition switch
- Fully hydrostatic power steering
- Long-life headlights (OHG-mounted)
- High-mount air intake
- Horn with actuator on center of steering wheel
- Full suspension Komfort seat and operator restraint system with orange seat belt
- 3-function hydraulic control valve
- Parking brake with double-action release
- Large, open floor space with operator compartment suspended-mount pedals
- Transmission torque converter oil cooler
- Load backrest
- Engine protection system
- Critical wiring harness connectors are waterproof
- Contoured, easy-to-grip, hydraulic control lever knobs
- EPA-compliant GK21 industrial Engine with high torque at low RPMs for power and fuel efficiency
- Komfort zone dual floating structure
- Full floating transmission
- Spinner knob steering wheel
- Self-adjusting brakes
- EZ view mast
- KOPS Plus lock lift/Travel interlock
- Low-profile dash display
- Drawbar pin in counterweight
- Electronic ignition, anti-restart ignition switch
- Fully hydrostatic power steering
- Long-life headlights (OHG-mounted)
- High-mount air intake
- Horn with actuator on center of steering wheel
- Full suspension Komfort seat and operator restraint system with orange seat belt
- 3-function hydraulic control valve
- Parking brake with double-action release
- Large, open floor space with operator compartment suspended-mount pedals
- Transmission torque converter oil cooler
- Load backrest
- Engine protection system
- Critical wiring harness connectors are waterproof
- Contoured, easy-to-grip, hydraulic control lever knobs
- Warning lights and audible travel alarms
- Cotton-core radiator
- Dual-fuel system
- Optional fork lengths
- Side shifter - hang-on or integral
- 4-way valve and internal hosing
- Solid pneumatic Tires
- Non-marking Tires
- Fire extinguisher
- Warning lights and audible travel alarms
- Cotton-core radiator
- Dual-fuel system
- Optional fork lengths
- Side shifter - hang-on or integral
- 4-way valve and internal hosing
- Solid pneumatic Tires
- Non-marking Tires
- Fire extinguisher
