Forestry

S92

Harvester heads

  • Weight (kg) 959
  • Weight (lbs) 2,114
  • Maximum cutting diameter (in) 24.8
  • Maximum cutting diameter (mm) 630
  • Maximum delimbing diameter (in) 14.8
  • Maximum delimbing diameter (mm) 373

Productive and dependable thinning

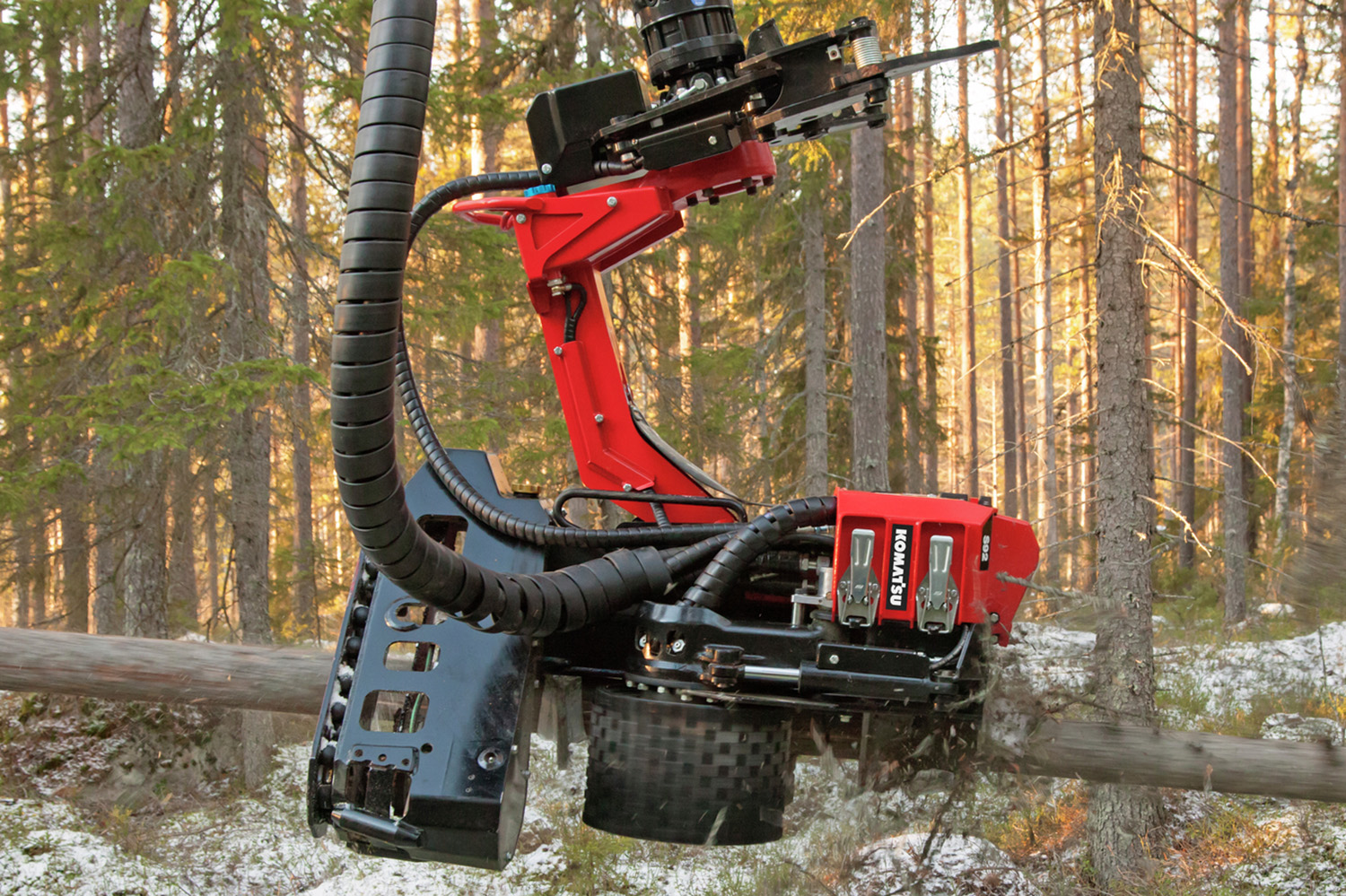

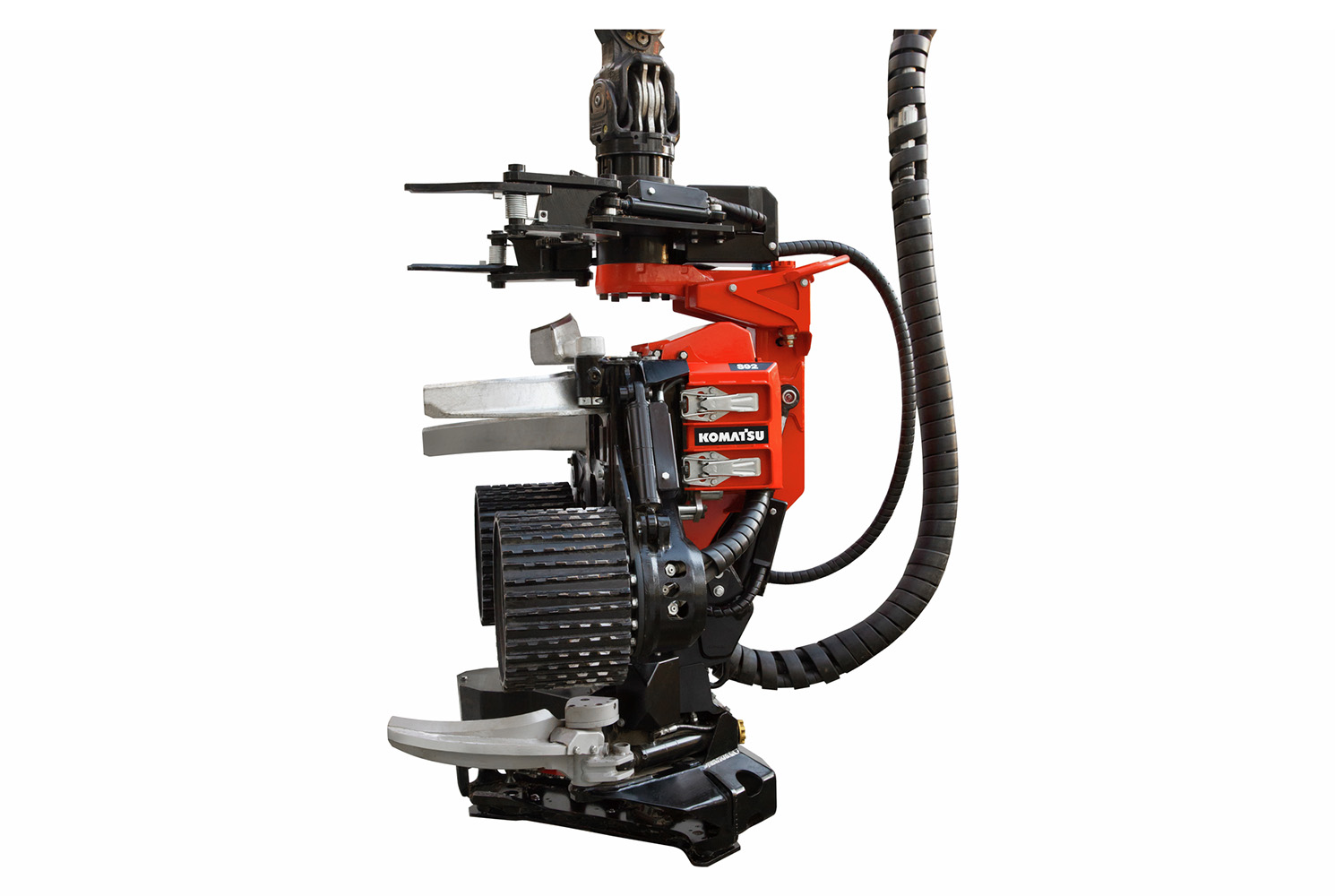

Designed for dependability and productivity, our S92 harvesting head features a powerful feed and efficient cutting system. It’s an ideal match for our 901, 901XC and 911 wheeled harvesters, and also works with other wheeled harvester brands.

  • Powerful two-motor and two-feed roller design
  • Rugged cast iron knives for durability
  • Robust butt saws deliver consistent production

Features and benefits

Advanced feed system

Advanced feed system

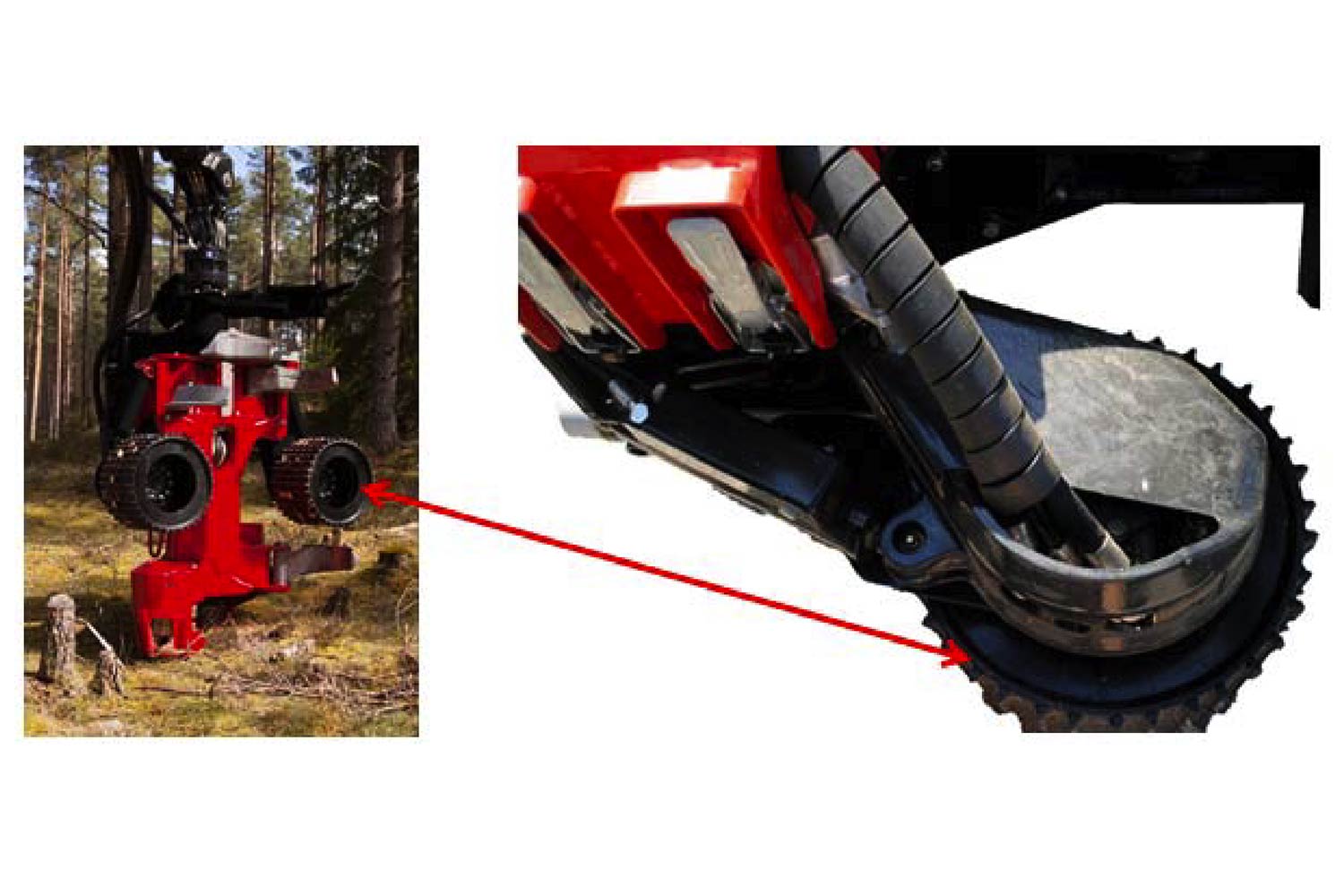

Two feed motors and two driven feed rollers provide excellent pressure contact points to squeeze the stem. Flex Friction Control system utilizes advanced sensors and intelligence to ensure low friction without sacrificing delimbing quality.

Rugged delimbing knife system

Rugged delimbing knife system

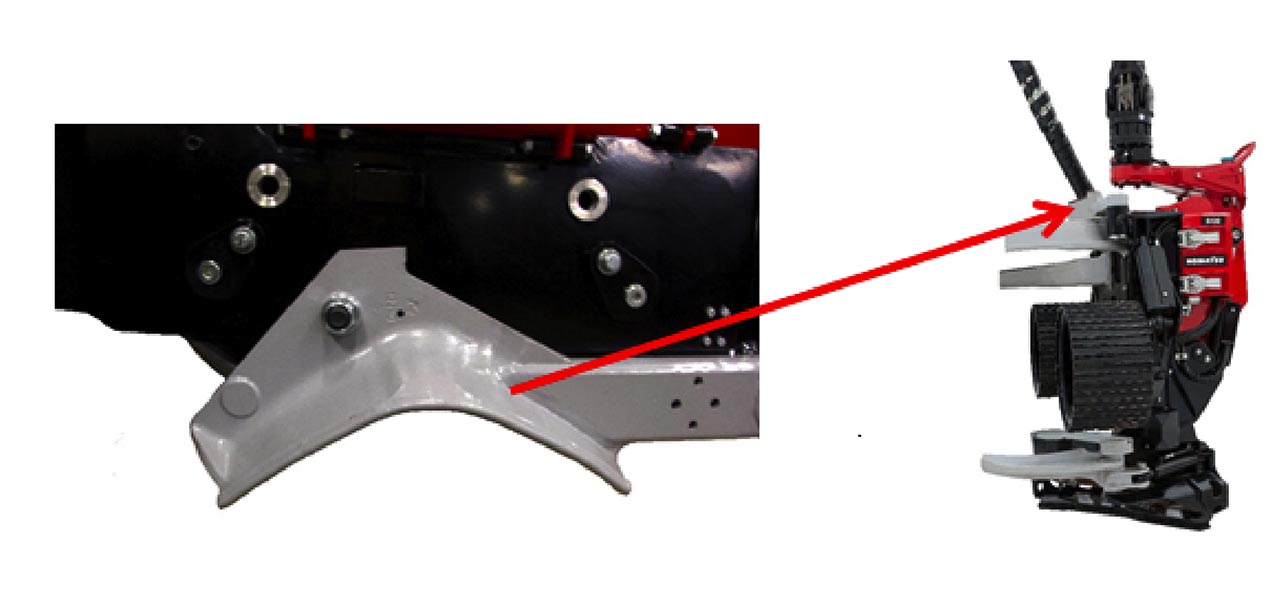

Three hydraulically controlled delimbing knives, a fourth moving vertical knife, and a fifth pre-delimbing knife deliver high performance. Cast iron knife construction ensures high durability.

Highly efficient cutting system

Highly efficient cutting system

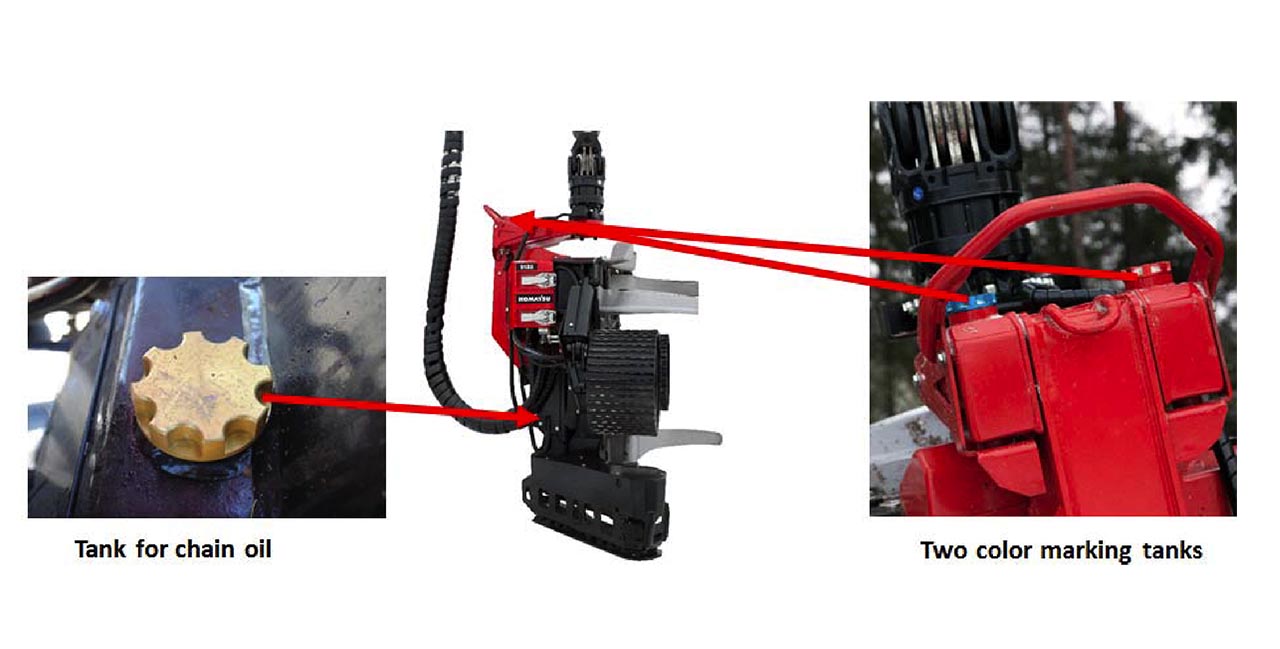

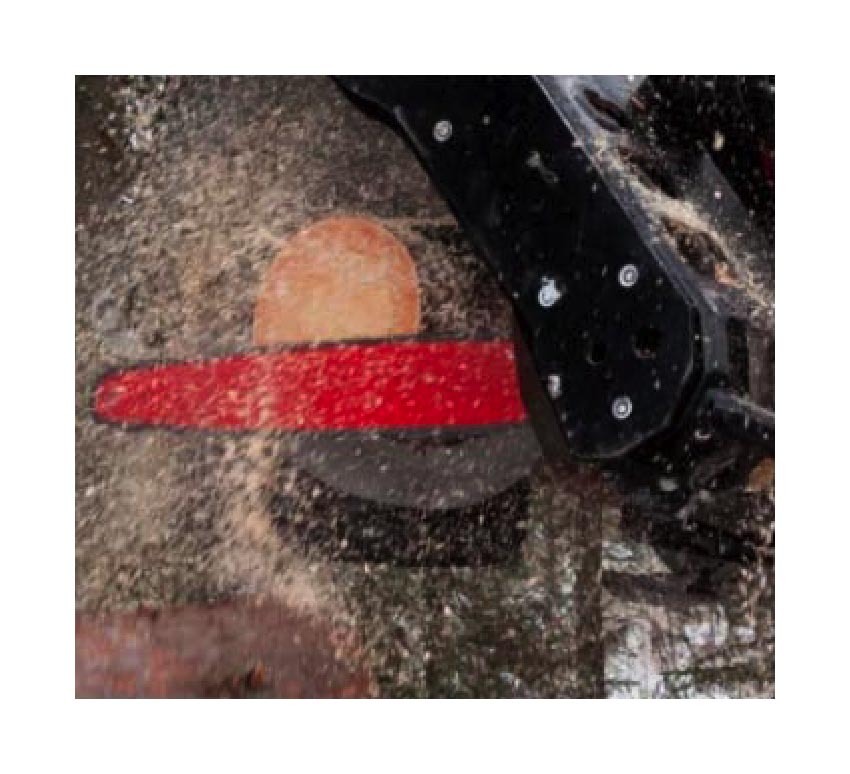

19 cm3 saw motor powers the rugged 29.5-in (750 mm) saw bar and chain. Automatic cut control, chain tensioning and chain oiling for efficient cutting all day long.

Accurate length/diameter measuring systems

Accurate length/diameter measuring systems

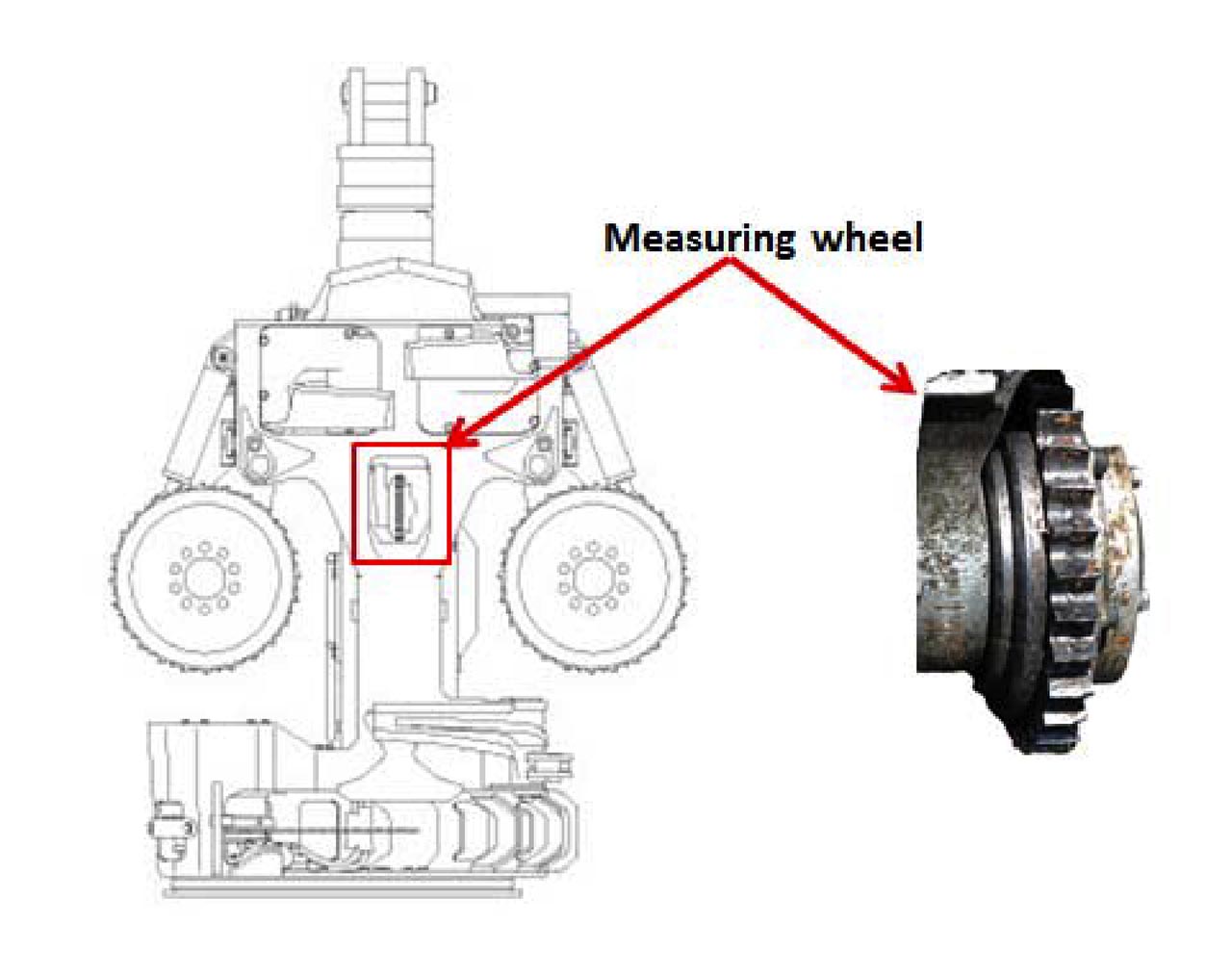

Patented length-measuring wheel cylinder design ensures constant pressure to closely follow stem irregularities and a find end photocell sensor provides excellent accuracy. Four-point diameter measuring system ensures superior diameter measurement.

MaxiXT smart control system

MaxiXT smart control system

State-of-the-art control system with intuitive graphical interface to manage all aspects of head control and performance. Easy programming of individual operator control preferences plus production parameters such as tree species, length and diameter.

Excellent reliability and serviceability

Excellent reliability and serviceability

Computer and hydraulic hoses/tubes are well-protected for high reliability. All daily service can be performed at ground level without repositioning. Centralized lubrication points further reduce service time.


Specifications

Metric Imperial (US)
Expand all

  • Max width (in): 54
  • Max width (mm): 1 371
  • Height including rotator (mm): 1 935
  • Height including rotator (in): 76.2
  • Roller diameter (mm): 426
  • Roller diameter (in): 16.8
  • Roller opening, max (in): 20.4
  • Roller opening, max (mm): 519
  • Opening knives, upper (in): 21.1
  • Opening knives, upper (mm): 536

  • Weight (lbs): 2,114
  • Weight (kg): 959
  • Feed speed (m/s): 0 - 4.1
  • Feed speed (ft/s): 0 - 13.5
  • Gross feed force (kN): 21.2
  • Gross feed force (lbf): 4,766
  • Feed wheel type: Steel rollers
  • Delimbing knives, number: 4
  • Delimbing knives, opening (mm): 375
  • Delimbing knives, opening (in): 14.8
  • Bar (option)(in): 25.2 / 29.5
  • Bar (option)(cm): 64 / 75
  • Saw motor (in^3/rev): 1.2
  • Saw motor (cm^3/rev): 19
  • Fell/Cut diam. theor. max (mm): 630
  • Fell/Cut diam. theor. max (in): 24.8
  • Max hydraulic flow (L/min): 230
  • Max hydraulic flow (gpm): 60.8
  • Max hydraulic pressure (psi): 3,626
  • Max hydraulic pressure (MPa): 25

  • Notes: Standard and extra equipment are market-dependent and vary between countries. The specification describes possible equipment, not that which is standard or optional. Stated weights are based on standard equipment. Specifications and designs are subject to change without notice.

Technology that works as hard as you do

Select continent

MaxiXT smart control system

The MaxiXT smart control system is designed to enable fast, accurate execution of even the narrowest of cutting windows. The power of the knives, feed rollers and tilt down function are determined by stem diameter and tree species, and are easily adjusted using a graph. This helps optimize your productivity, measurement accuracy and time savings.
