Forestry

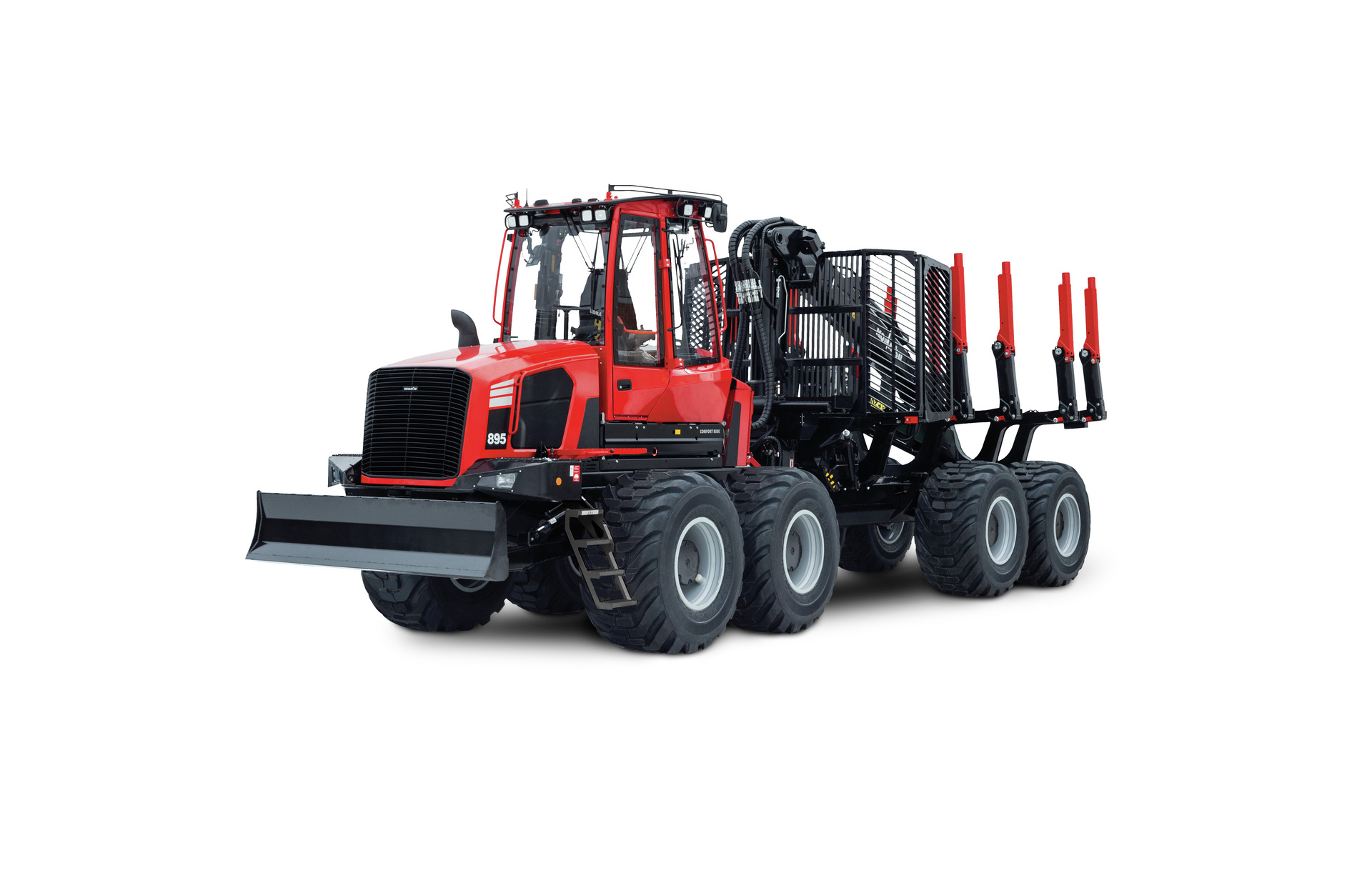

XF895-3
Forwarders
- Gross load capacity (kg) 20000
- Gross load capacity (lbs) 44092
- Horsepower (HP) 287 HP @ 1,850 rpm
- Horsepower (kW) 214 kW DIN @ 1,850 rpm
- Tractive force (kN) 262
- Tractive force (lbf) 58900
The power and size to deliver
Our largest forwarder is a final felling specialist with a formidable capacity — components designed to handle up to 20 metric tons confidently. Thanks to Komatsu designs such as Comfort Bogies, it is built to maneuver challenging terrain with confidence and effortlessly load with powerful cranes and ergonomic controls.
- Innovative, versatile load space
- Powerful cranes with tech for precision, speed
- Outstanding maneuverability
Resources
Features and benefits

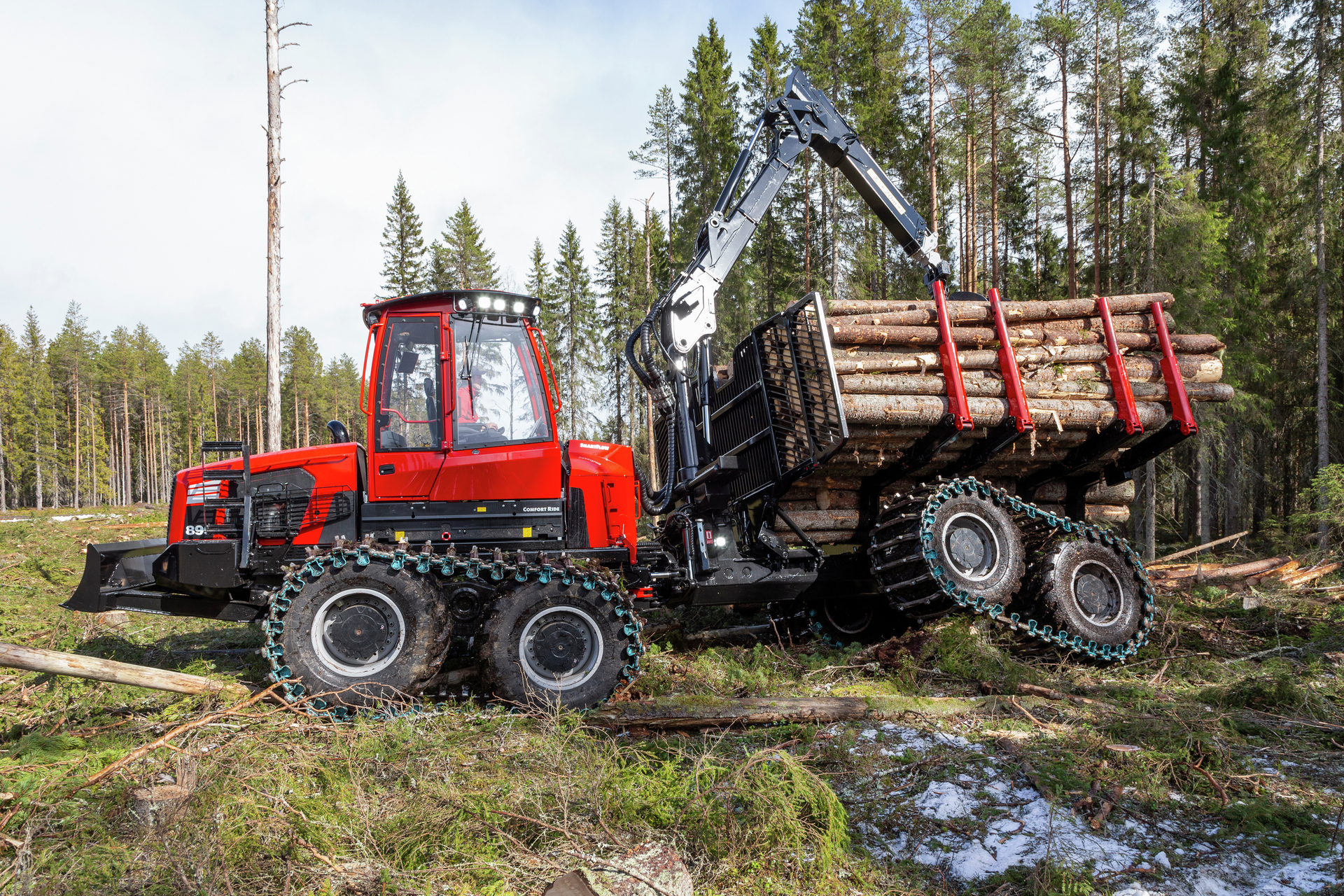

Nimble in rugged terrain
Traverse the forest with confidence, even when fully loaded. Comfort Bogie axles with a high portal offset and V-shaped frames provide some of the highest ground clearance in the industry.

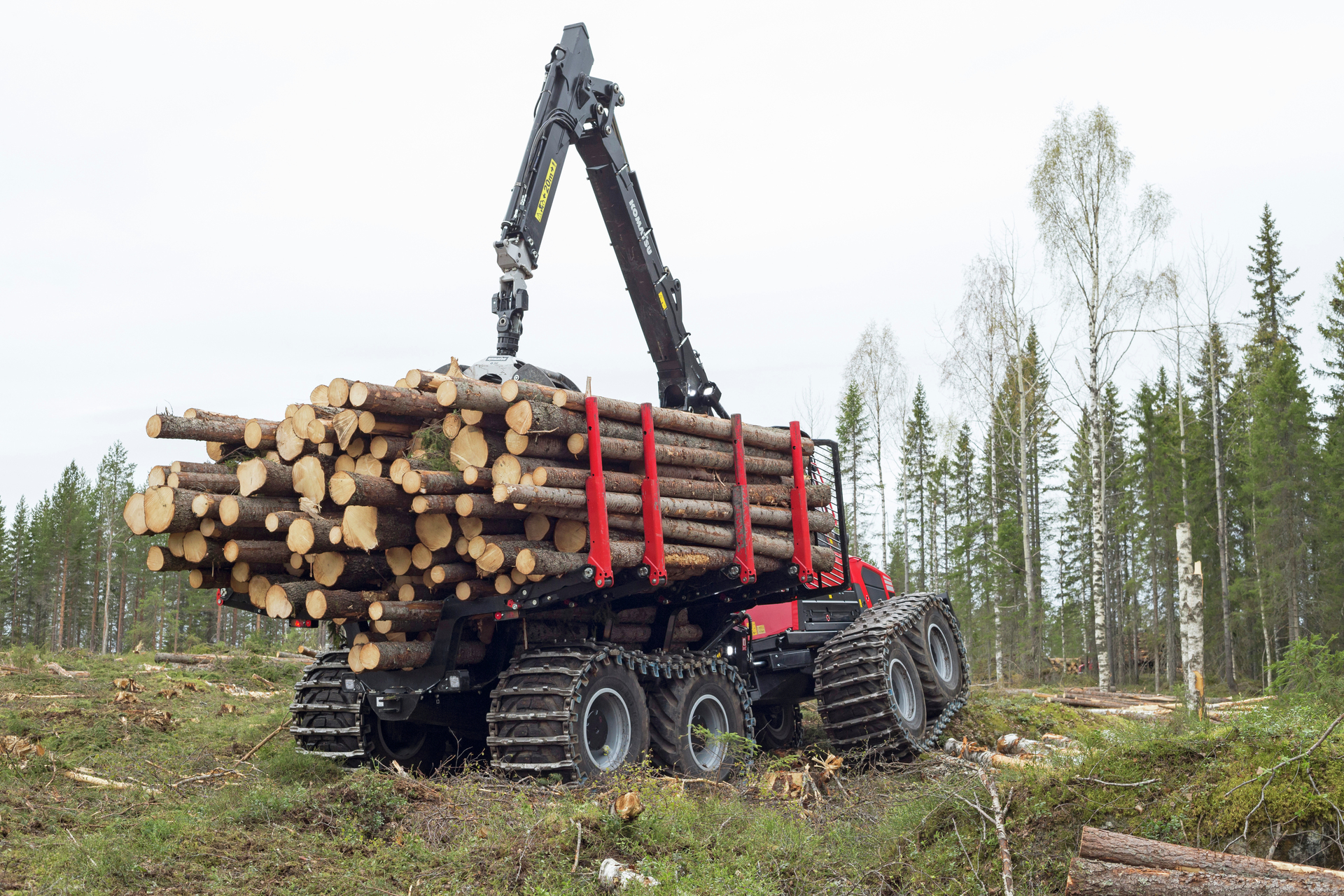

Hard wearing, flexible load space
Adapt the load space to your needs thanks to rugged bunks and gate, both with width and height adjustments (among many others). Match the machine to your job with 12, 14, 16 or 20 metric ton load capacity choice and several frame-length options.

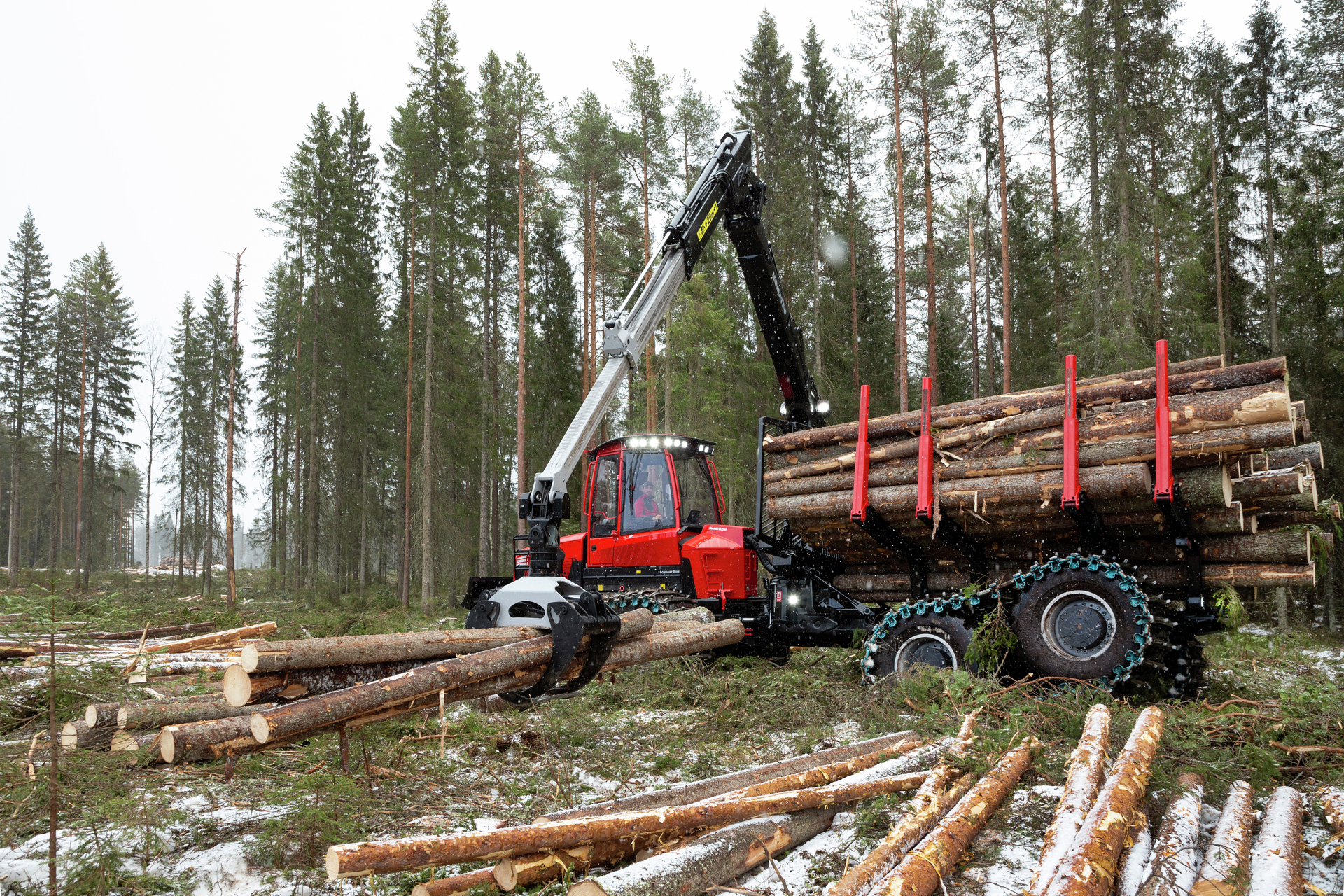

Smooth, precise cranes
Designed specifically for Komatsu forwarders, robust crane options are smooth and precise with long reach and excellent lifting and slewing torque. The standard 165F crane provides quick and smooth loading. The optional 205F is the most powerful, with 205 kNm lifting and 51.9 kNm slewing torque.
:photo-3x2-sm)

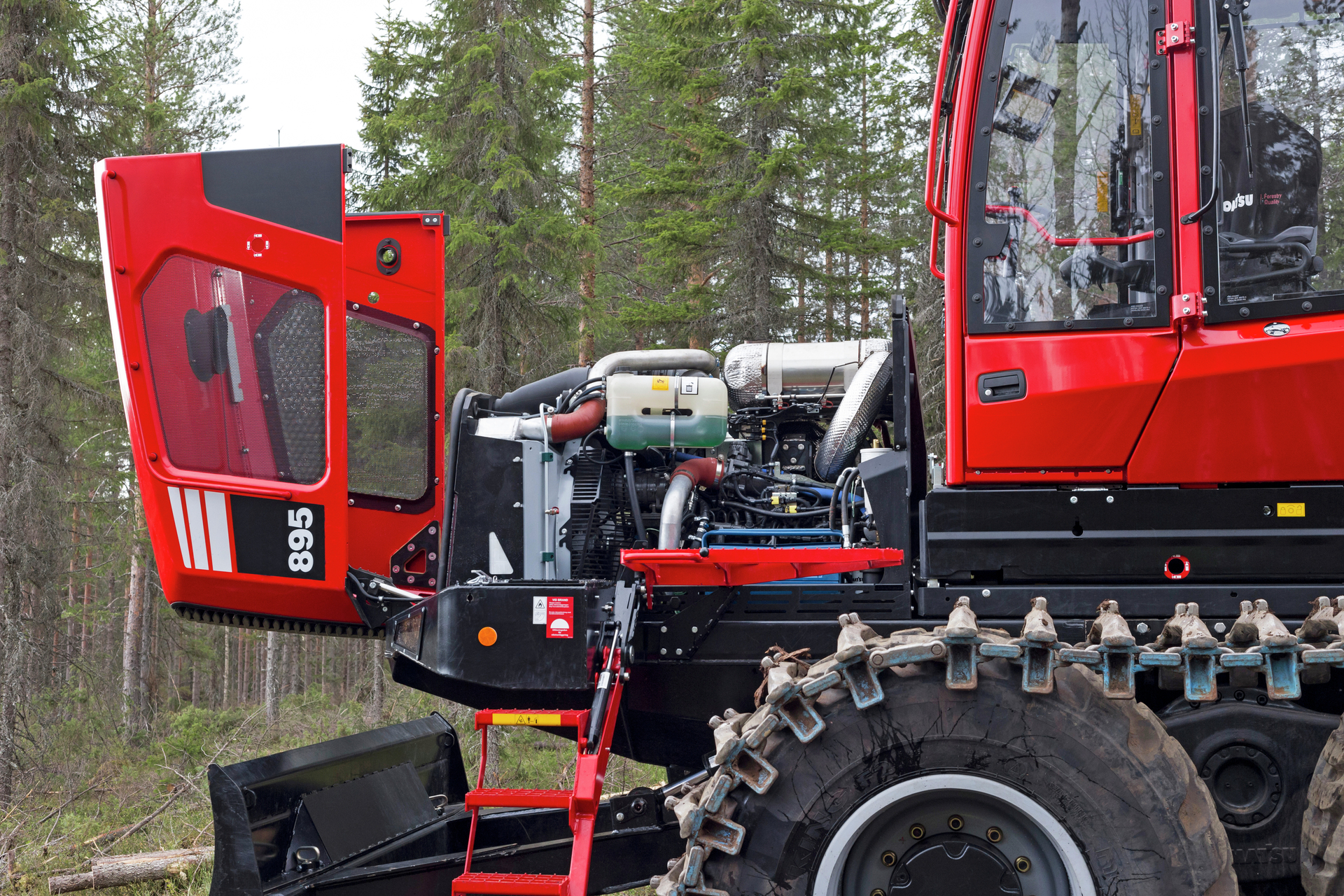

Powerful, efficient engine
A combination of high power with high torque at low rpm helps in tackling harsh forest terrain. A sophisticated control system automatically adapts to changes in engine load to boost fuel efficiency.

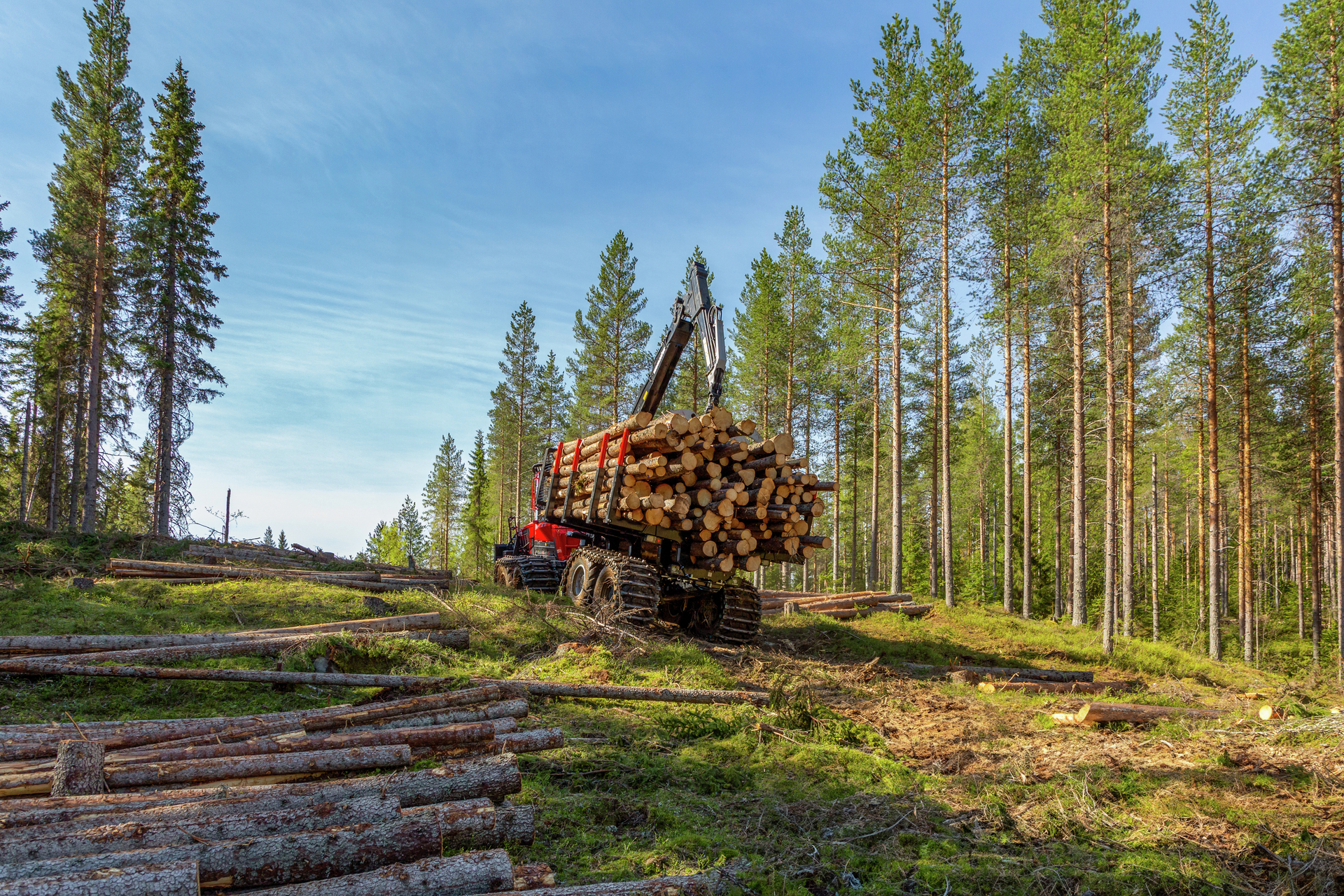

Technology-driven traction
Get exceptional tractive force thanks to an intelligent hydrostatic transmission system that considers machine load, terrain conditions, power and torque output. Hydraulic retarder overspeed protection ensures the driveline matches conditions.

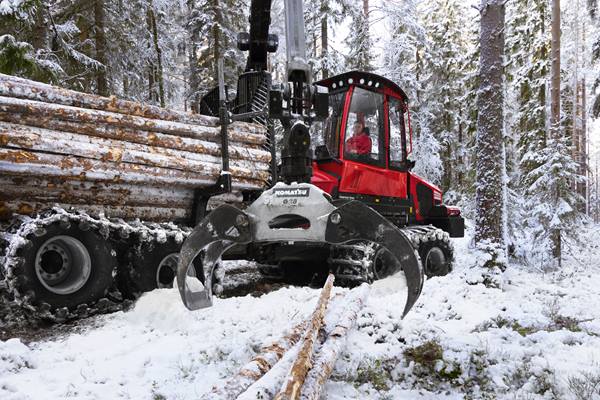

Smart Crane system
This tech eases crane tip operation by combining joystick movements enabling the operator to place the grapple exactly where they want. Telescopic boom extension is automatic. SmartFlow with active damping delivers even more responsiveness and control.

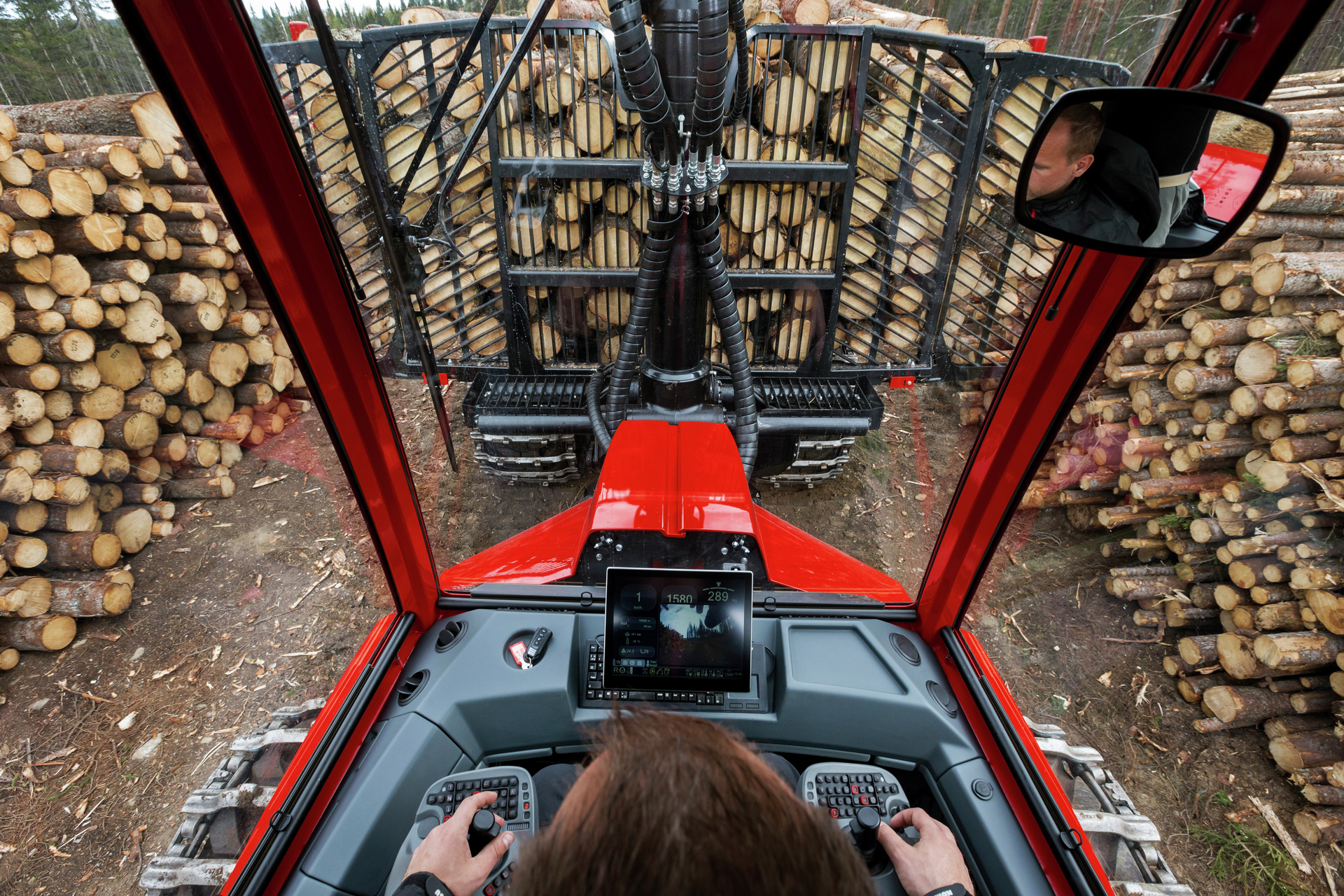

Comfortable cab
A comfortable operator is a productive one. Spacious and open, our cab provides fantastic visibility, ergonomic controls and a seat that delivers all-day comfort. Optional hydraulic Comfort Ride cab suspension provides added plushness.

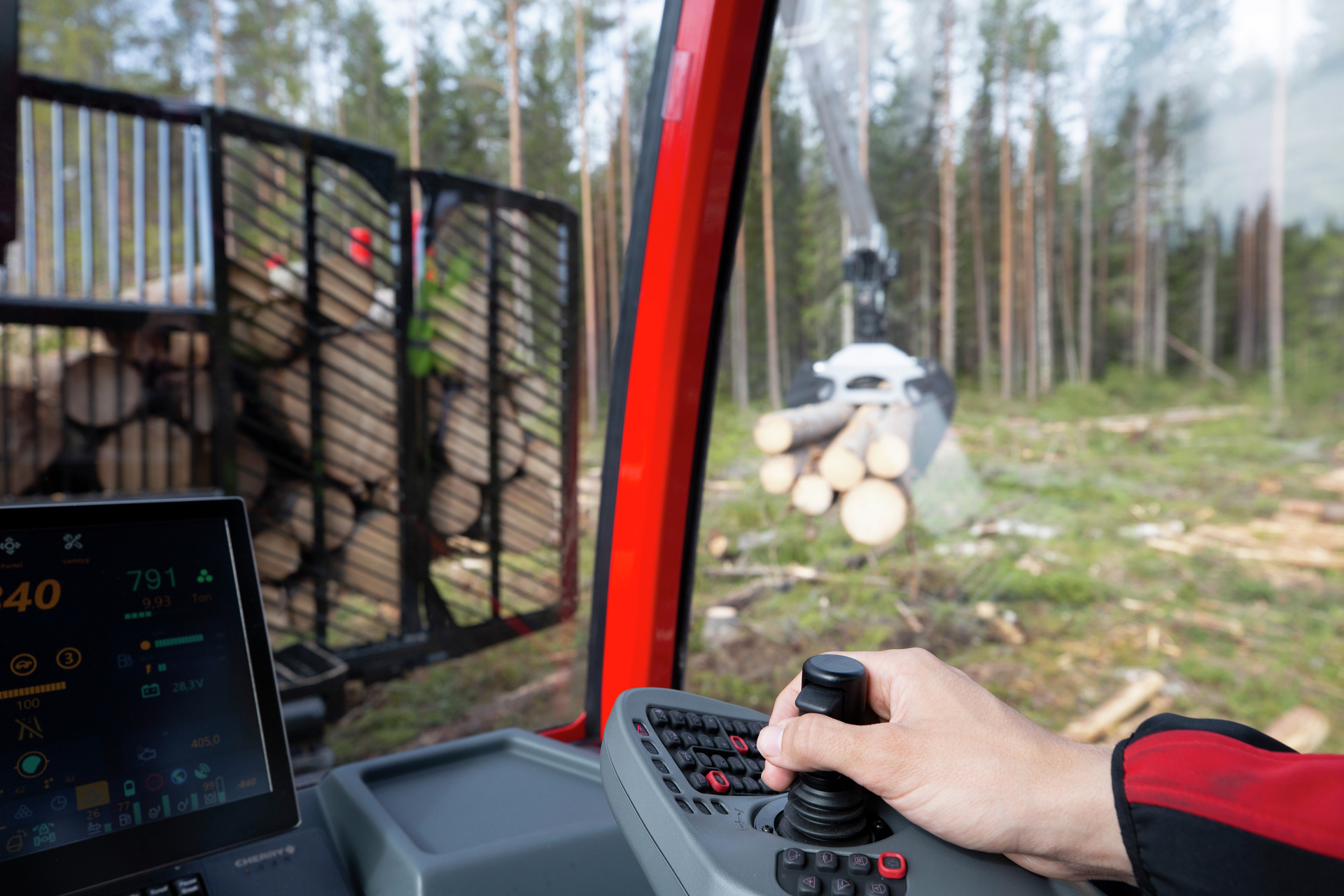

Customized controls
Speed operator performance with fine-tuning of controls for sensitivity, speed, smoothness and accuracy. Most buttons are customizable. Our state-of-the-art in-cab MaxiXT system monitors and controls nearly everything.
Easy to maintain
Less time servicing means more time forwarding. Maintenance is quickly and easily completed with a service-friendly design featuring an electronically powered tilting hood and access ladders. All filters are located together for easy access under the hood.

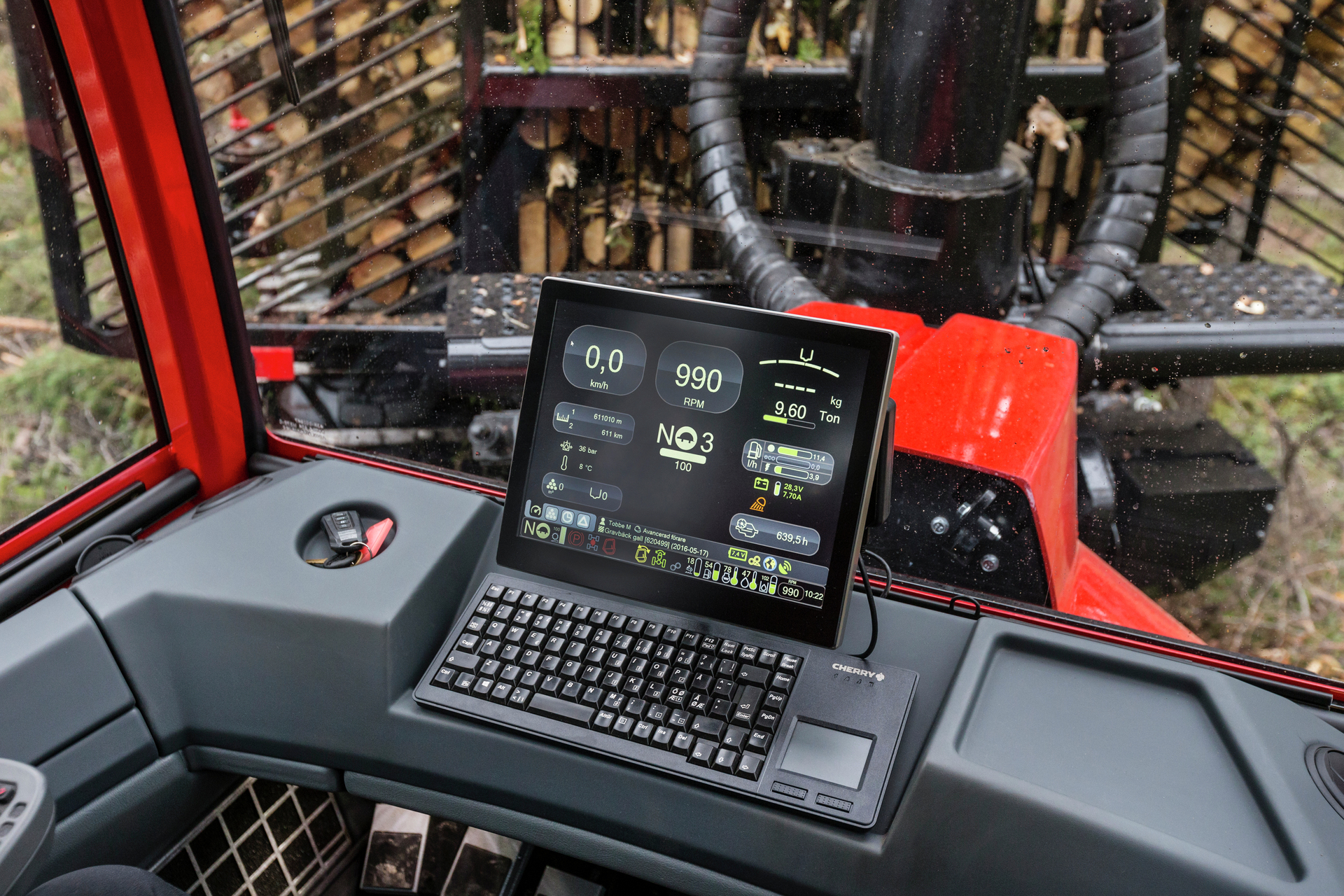

Customizable for your operation
Multiple options are available to enhance your productivity and comfort, including bunk options, rear- and front-view video cameras, computer touchscreen, electric fuel fill pump, Comfort Ride cab suspension and more.

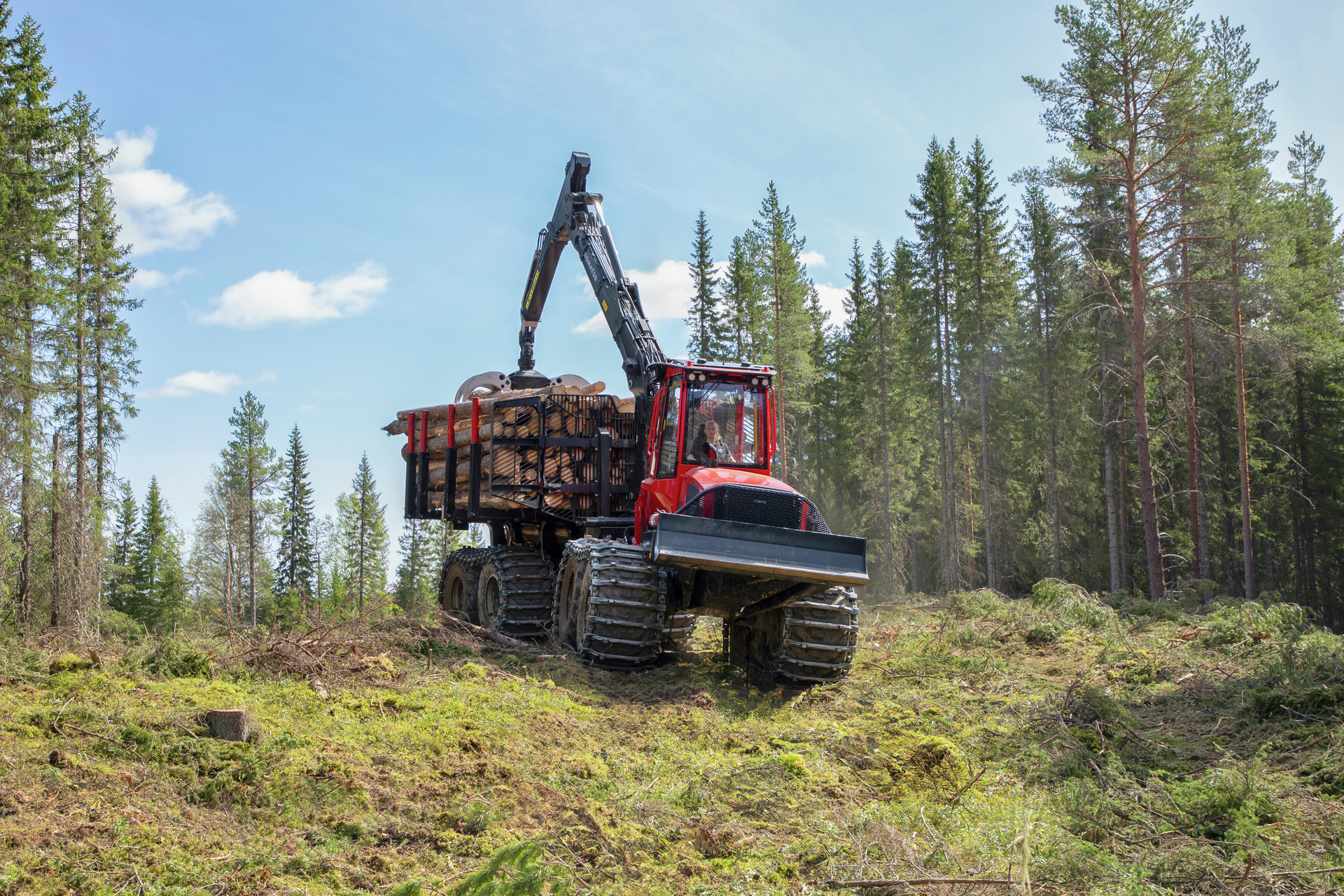

Heavy-duty stacking blade
When you need to do ground or stump leveling on tough terrain, an optional heavy-duty stacking blade is available. Mounted with a high angle of departure for climbing obstacles, there’s no interference between blade, battery boxes or hood guard.

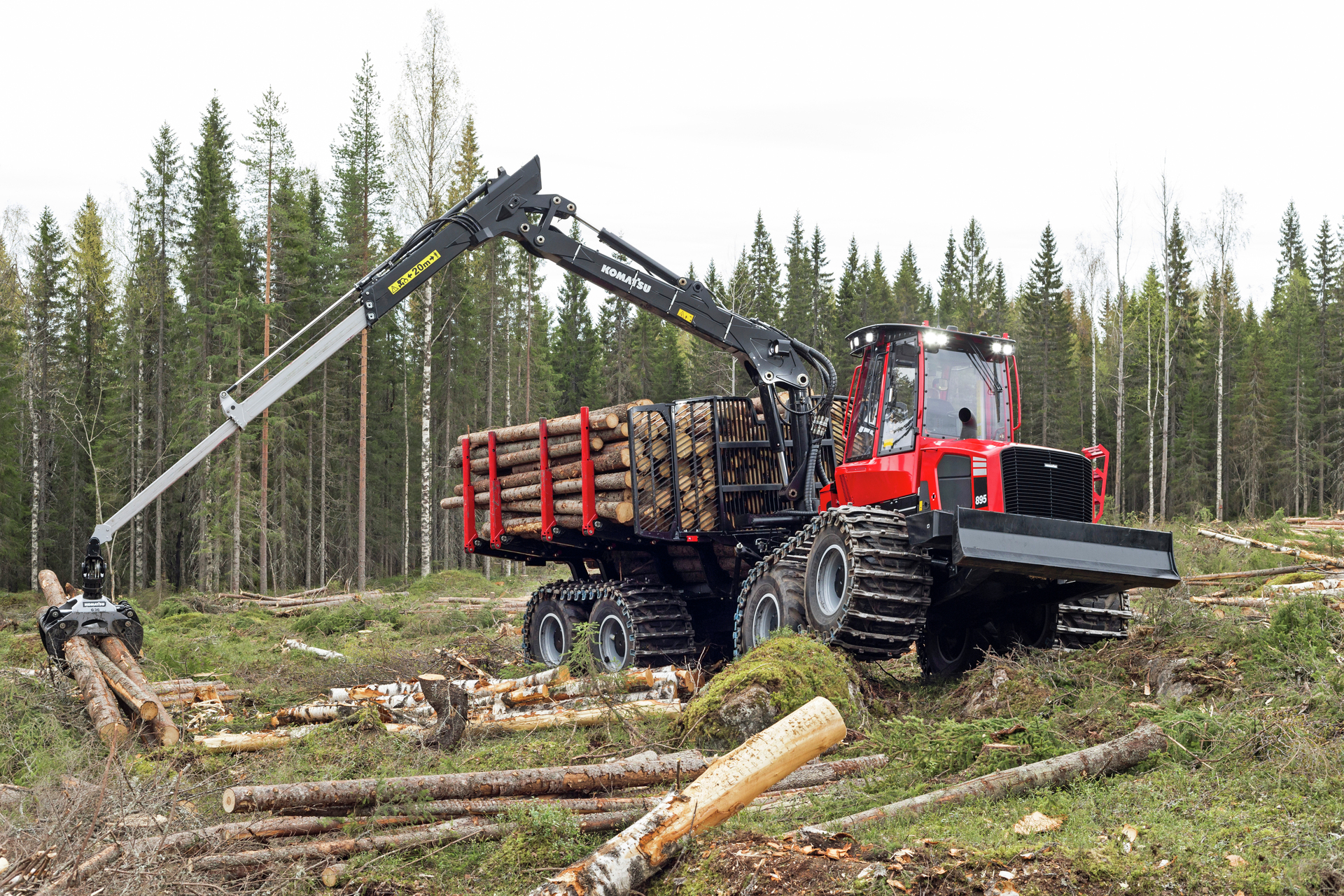

Cold weather starting
Don’t lose valuable time when the temperatures drop. A standard diesel heater system heats the engine coolant, hydraulic oil and the batteries.
Specifications
- Full specs
- Standard equipment
- Optional equipment
- Driving speed (kph): 23
- Driving speed (mph): 14
- Tractive force (lbf): 58900
- Tractive force (kN): 262
- Type, Europe and North America: 6-cylinder diesel engine with turbo and intercooler (U.S. EPA Tier 4 Final emission certifiied); 74 LFTN-D4
- Engine_displacement_metric: 7.4
- Engine_displacement_imperial: 2
- Power, max.: (kW): 214 kW DIN @ 1,850 rpm
- Power, max.: (HP): 287 HP @ 1,850 rpm
- Torque (Nm): 1,280 Nm @ 1,500 rpm
- Fuel tank (L): 245
- Fuel tank (US gal): 64.7
- AdBlue® tank: (gal): 5.7 (filled volume)
- AdBlue® tank: (L): 21.5 (filled volumne)
- Hydraulic details: Single-circuit load-sensing with variable piston pump; pressure filter for hydrostatic circuit; combined return oil filters for hydrostat and working hydraulics; hydraulic oil level alarm; sight glass level check; clogging indicator for return oil filter; visual alarm in cab.
- Flow (L/min): 409 @ 1,950 rpm
- Flow (gpm): 108 @ 1,950 rpm
- Hydraulic oil tank (US gal): 39
- Hydraulic oil tank (L): 150
- Reach (ft): 24.6/27.9/32.8 (Komatsu 165F crane) or 24.6/27.9/32.8 (Komatsu 205F crane)
- Reach (m): 7.5/8.5/10 (Komatsu 165F crane) or 7.5/8.5/10 (Komatsu 205F)
- LIfting torque, gross (lbs-ft): 121,699 (Komatsu 165F crane) or 151,200 (Komatsu 205F crane)
- LIfting torque, gross (kNm): 165 (Komatsu 165F crane) or 205 (Komatsu 205F crane)
- Slewing torque, gross (kNm): 43.4 (Komatsu 165F crane) or 51.9 (Komatsu 205F crane)
- Slewing torque, gross (lbs-ft): 32,084 (Komatsu 165F crane) or 38,280 (Komatsu 205F crane)
- Rotator: G181 (Komatsu 165F crane) or GX (Komatsu 205F crane)
- Grapple: G84H/G85H/G86H/G87H (Komatsu 165F crane) or G86H/G87H/G88H (Komatsu 205F crane)
- Crane tip: ProTec (Komatsu 165F or 205F crane)
- Gross load (lbs): 44092
- Gross load (kg): 20000
- Load bunks: Mounted on runners, movable
- Load gate: Komatsu FlexGate, hydraulically flexible full-height gate, fixed
- Width (mm): 3160
- Width (ft): 10 ft. 4 in
- Voltage: 24 V
- Battery capacity: 2 x 180 Ah
- Engine, AGCO Power 74 LFTN-D4, EPA Tier 4 Final (287 NET HP (214 kW DIN) @ 1850 RPM)
- After-cooled, turbocharged direct injection
- Air cleaner, double element
Electrical system
- Alternator, 2 x 100 ampere, 24V
- Batteries, 2 x 12V, 180 Ah; heated by the diesel heater
- Emergency start battery cable kit
- 14-LED working lights (2-cab front, 4-cab right, 4-cab left, 2-boom, 2-rear frame)
- Hydrostatic-mechanical low/high range transmission with hydraulic retarder overspeed protection
- Front/Rear axle, comfort bogie with differential lock
- Bogie protection plates
- Internal multi-disc wet brakes
- Hydraulic frame oscillation lock cylinders
- ± 42 degree articulation steering angle, electrical steering cylinder end damping
- Cab, ROPS (ISO8082), FOPS (ISO8083), OPS (ISO8084), WCB (G603)
- Mini-levers advanced control handles
- Steering control on left/right controls
- Automatic climate control with heating, air conditioning and filtered air intake
- AM/FM radio/CD, MP3 player interface, aux/USB connection, Bluetooth®
- Front/rear window wipers and washers l Fully adjustable Be-Ge 3000 high back air suspension seat, air vented
- Turnable operator seat - 180 deg rotation
- Seat belt, retractable
- Sun blinds, drink cup holder, coat hook
- 4 cab ceiling-mounted interior LED lights
- Heating and cooling boxes for food/beverages
- Side/Rear emergency escape
- Load sensing hydraulic system, 95.1 gpm (360 ltr/min) pump flow
- High pressure filter for hydrostatic travel circuit
- Low hydraulic oil warning
- 24V electric hydraulic tank oil fill pump
- 24V hydraulic system vacuum pump
- Shell Tellus S2 VX46 hydraulic oil
- Thermostatically controlled hydraulic oil cooling
- 165F crane with 24'6" (7.5m) reach
- Komatsu ProTec grapples hose protection system
- G181 rotator
- Long Frame, 18'3" (5550 mm) headboard to center of rear bunk
- Carrier - Long wood with 4 FlexBunks with 2-position
- FlexGate fixed headboard with 14" (350 mm) wideners on each side
- MaxiXT Microsoft Windows-based graphic user interface with integrated vehicle and control system
- Maxi PC X40, Microsoft Windows operating system, 8GB RAM, 128 GB solid state drive, wired keyboard with track ball
- 12" color screen
- GPS receiver
- Engine, AGCO Power 74 LFTN-D4, EPA Tier 4 Final (287 NET HP (214 kW DIN) @ 1850 RPM)
- After-cooled, turbocharged direct injection
- Air cleaner, double element
Electrical system
- Alternator, 2 x 100 ampere, 24V
- Batteries, 2 x 12V, 180 Ah; heated by the diesel heater
- Emergency start battery cable kit
- 14-LED working lights (2-cab front, 4-cab right, 4-cab left, 2-boom, 2-rear frame)
- Hydrostatic-mechanical low/high range transmission with hydraulic retarder overspeed protection
- Front/Rear axle, comfort bogie with differential lock
- Bogie protection plates
- Internal multi-disc wet brakes
- Hydraulic frame oscillation lock cylinders
- ± 42 degree articulation steering angle, electrical steering cylinder end damping
- Cab, ROPS (ISO8082), FOPS (ISO8083), OPS (ISO8084), WCB (G603)
- Mini-levers advanced control handles
- Steering control on left/right controls
- Automatic climate control with heating, air conditioning and filtered air intake
- AM/FM radio/CD, MP3 player interface, aux/USB connection, Bluetooth®
- Front/rear window wipers and washers l Fully adjustable Be-Ge 3000 high back air suspension seat, air vented
- Turnable operator seat - 180 deg rotation
- Seat belt, retractable
- Sun blinds, drink cup holder, coat hook
- 4 cab ceiling-mounted interior LED lights
- Heating and cooling boxes for food/beverages
- Side/Rear emergency escape
- Load sensing hydraulic system, 95.1 gpm (360 ltr/min) pump flow
- High pressure filter for hydrostatic travel circuit
- Low hydraulic oil warning
- 24V electric hydraulic tank oil fill pump
- 24V hydraulic system vacuum pump
- Shell Tellus S2 VX46 hydraulic oil
- Thermostatically controlled hydraulic oil cooling
- 165F crane with 24'6" (7.5m) reach
- Komatsu ProTec grapples hose protection system
- G181 rotator
- Long Frame, 18'3" (5550 mm) headboard to center of rear bunk
- Carrier - Long wood with 4 FlexBunks with 2-position
- FlexGate fixed headboard with 14" (350 mm) wideners on each side
- MaxiXT Microsoft Windows-based graphic user interface with integrated vehicle and control system
- Maxi PC X40, Microsoft Windows operating system, 8GB RAM, 128 GB solid state drive, wired keyboard with track ball
- 12" color screen
- GPS receiver
- Heater, fuel fired jacket water and hydraulic oil preheater 9.1 kW capacity (also heats the 2 x 12V batteries)
- Electric cab tilt for service with under cab service lights
- Bogie protection plates
- Steps and service ladders
- Engine hood guard with brush sweep cables
- Towing hooks
- O-ring kit for hydraulic hoses
- Tool box and tools
- Fire extinguishers, 2 x 13.2 lb (6 kg), hand held
- Back-up (reverse) alarm signal
- Documentation in memory stick and paper formats
- Marks and plates, English
- Marks and plates, French
- Pump, 24V electric fuel fill
- XT transmission
- Fully adjustable Be-Ge 3000 high back air suspension seat, air vented - Leather Uphostered
- Turnable operator seat - 220 deg rotation
- Sidewiper
- Front and rear view video camera
- Smart Crane
- Smart Flow
- 165F crane with 27'9" (8.5m) reach
- 205F crane with 24'6" (7.5m) reach
- 205F crane with 27'9" (8.5m) reach
- 205F crane with 32'10" (10m) reach
- GX rotator
- Komatsu G84HD grapple
- Komatsu G85 HD grapple
- Additional 12" computer screen
- MaxiPC X40 Computer touchscreen
- 780/50-28.5 Nokian Forest King F2
- 780/50-28.5 Nokian TRS2
- Spare - 780/50-28.5 Nokian Forest King F2
- Spare - 780/50-28.5 Nokian TRS2
- Automatic central lubrication system
- Comfort rude
- Front frame prepared for dozer blade
- Dozer blade (Factory install)
- Dozer blade (Field Install)
- Heater, fuel fired jacket water and hydraulic oil preheater 9.1 kW capacity (also heats the 2 x 12V batteries)
- Electric cab tilt for service with under cab service lights
- Bogie protection plates
- Steps and service ladders
- Engine hood guard with brush sweep cables
- Towing hooks
- O-ring kit for hydraulic hoses
- Tool box and tools
- Fire extinguishers, 2 x 13.2 lb (6 kg), hand held
- Back-up (reverse) alarm signal
- Documentation in memory stick and paper formats
- Marks and plates, English
- Marks and plates, French
- Pump, 24V electric fuel fill
- XT transmission
- Fully adjustable Be-Ge 3000 high back air suspension seat, air vented - Leather Uphostered
- Turnable operator seat - 220 deg rotation
- Sidewiper
- Front and rear view video camera
- Smart Crane
- Smart Flow
- 165F crane with 27'9" (8.5m) reach
- 205F crane with 24'6" (7.5m) reach
- 205F crane with 27'9" (8.5m) reach
- 205F crane with 32'10" (10m) reach
- GX rotator
- Komatsu G84HD grapple
- Komatsu G85 HD grapple
- Additional 12" computer screen
- MaxiPC X40 Computer touchscreen
- 780/50-28.5 Nokian Forest King F2
- 780/50-28.5 Nokian TRS2
- Spare - 780/50-28.5 Nokian Forest King F2
- Spare - 780/50-28.5 Nokian TRS2
- Automatic central lubrication system
- Comfort rude
- Front frame prepared for dozer blade
- Dozer blade (Factory install)
- Dozer blade (Field Install)
