Excavators

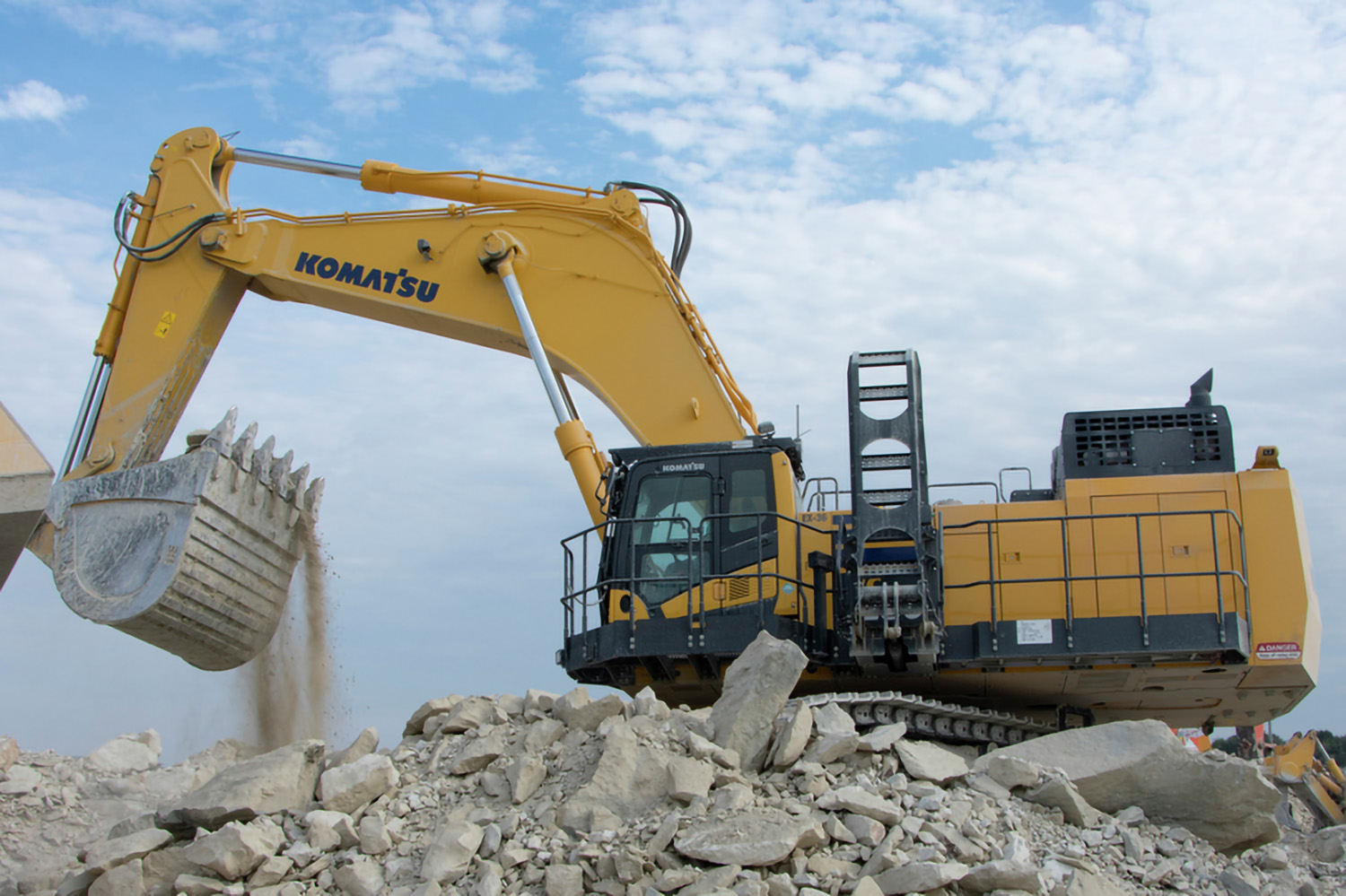

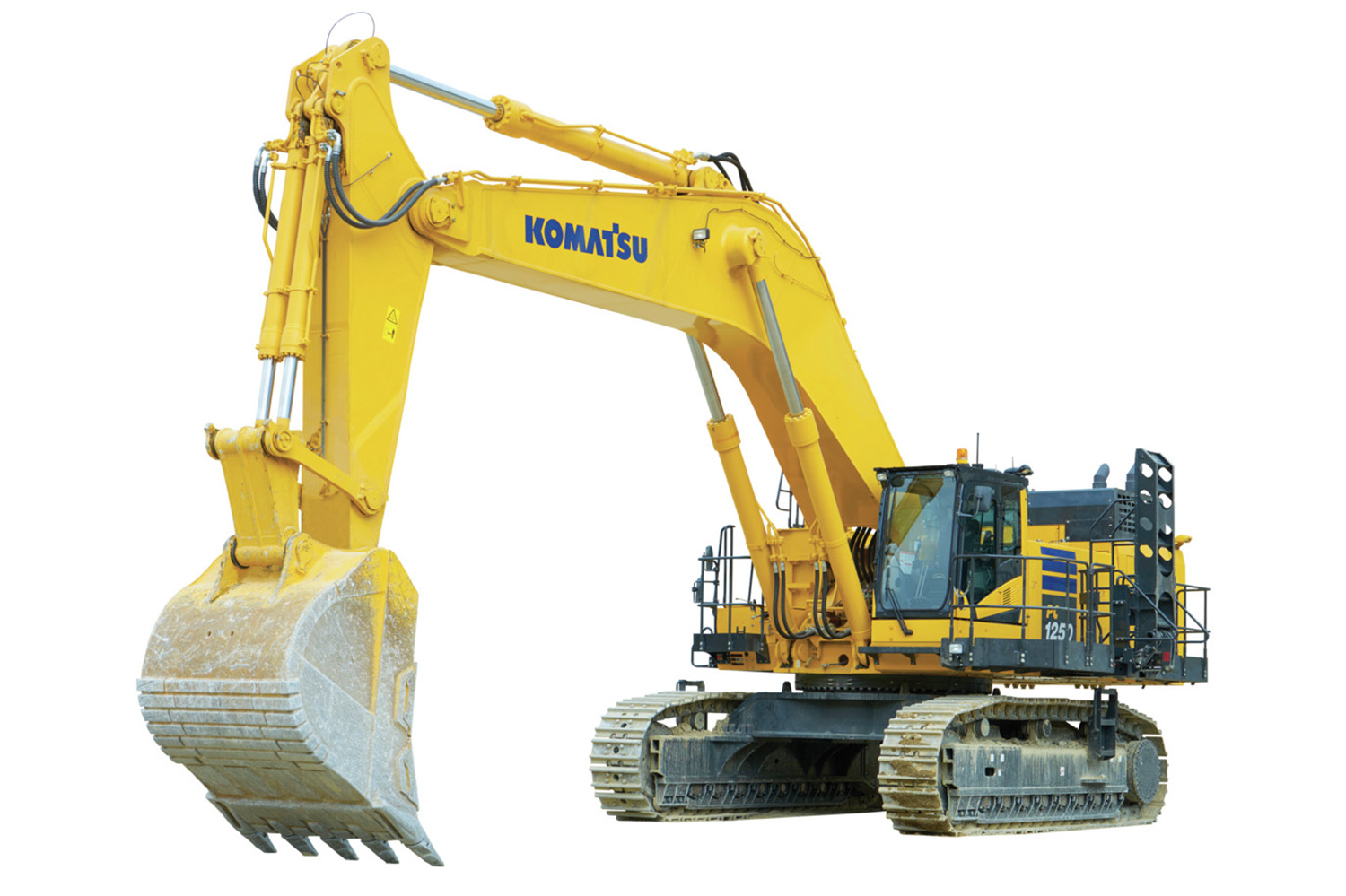

PC1250LC-11

Large excavators

  • Horsepower (HP) 758 HP @ 1,800 rpm
  • Horsepower (kW) 565 kW @ 1 800 rpm
  • Operating weight (kg) 122 152 - 123 649
  • Operating weight (lbs) 269,300 - 272,600
  • Bucket Capacity (m^3) 4.1-7.3
  • Bucket Capacity (yd^3) 5.3-9.5

Purchase options

Request a quote Find a dealer

Power and performance.

Get power and versatility with long boom and three arm options for extended reach and depth. Ideally suited for large general construction projects or deep underground utility work, this machine offers excellent digging performance for your tough jobs.

  • 13% more HP and up to 8% increase in performance*
  • Versatility with two application configurations
  • Exceptional operator awareness
  • Designed for serviceability

Features and benefits

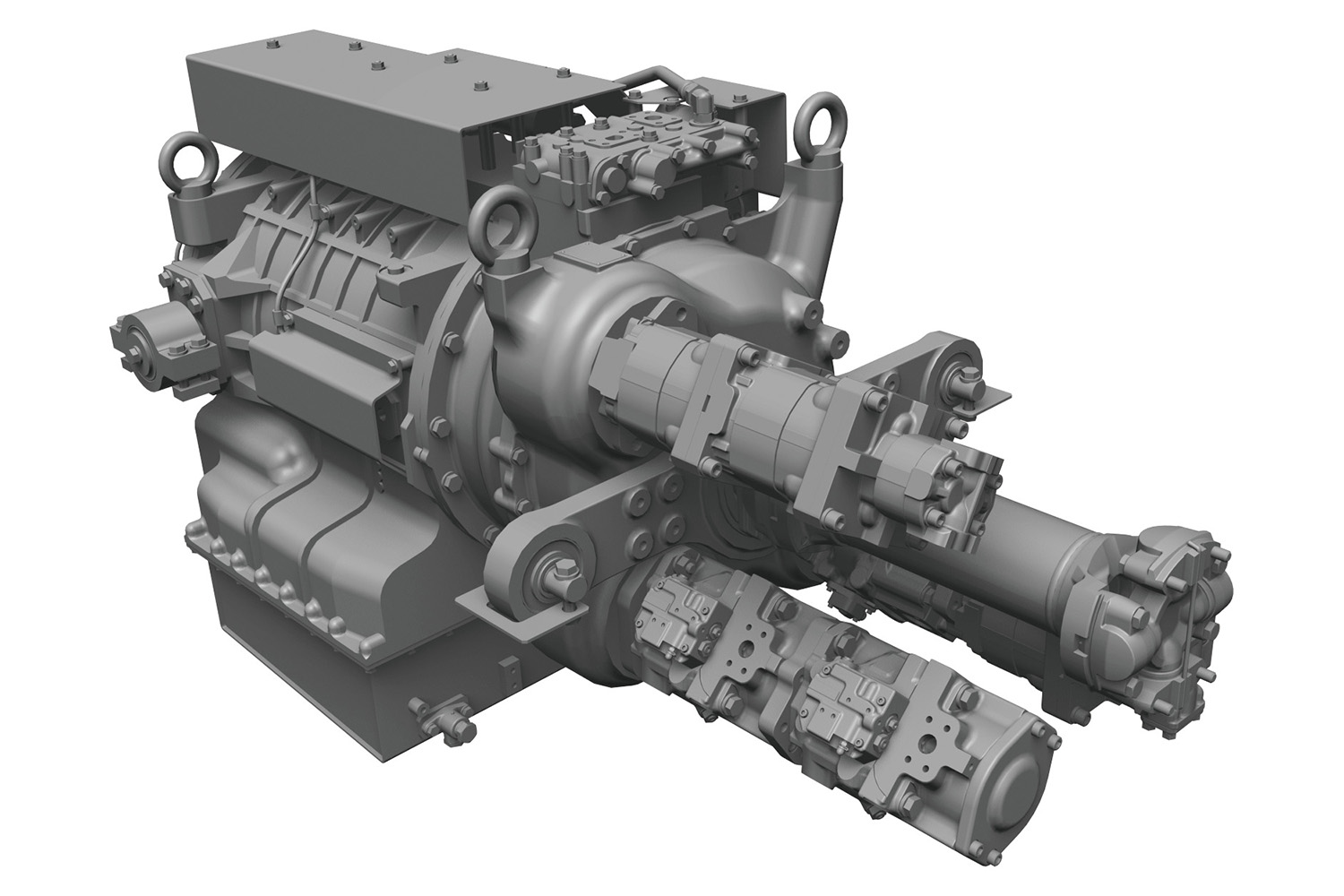

Powerful engine

Powerful engine

13% more HP and up to 8% greater productivity*. A Tier 4 Final-compliant engine without requiring diesel exhaust fluid or a selective catalytic converter. Auto idle shutdown timer and thermostatically controlled variable speed cooling fan.

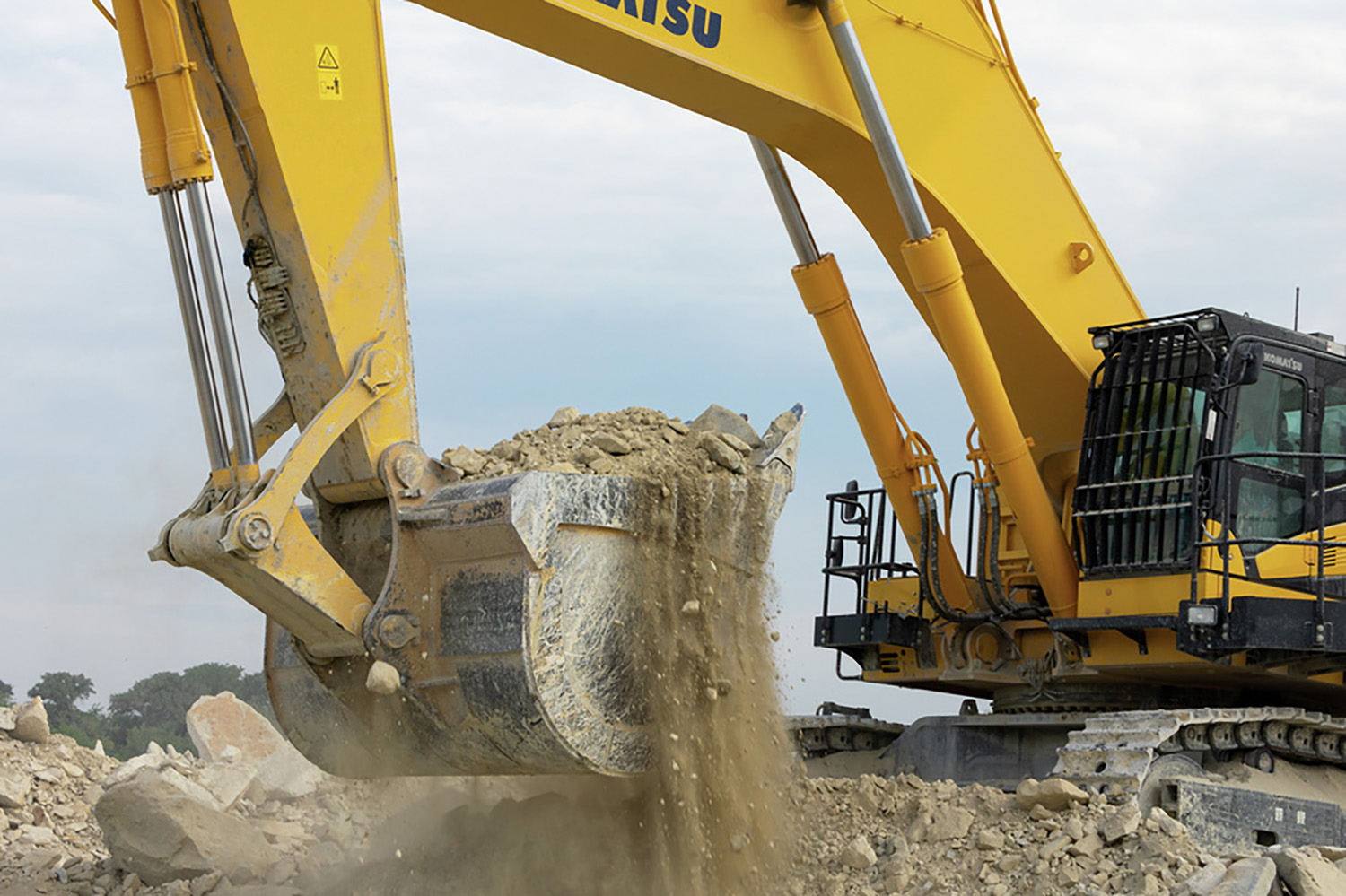

Reinforced structures

Reinforced structures

Withstand tough applications with strengthened revolving, center and crawler frames. Large cross-section structures use high-tensile-strength steel to increase durability and resistance to bending and torsional stresses.

Improved serviceability

Improved serviceability

Gain easy access to engine, hydraulic system and maintenance service areas with center and large left side walkways. Engine air cleaners have been relocated outside the engine compartment for easy access.

Enhanced cab

Enhanced cab

Keep your operators comfortable with a large pressurized cab that comes with a 7-inch color monitor and fully adjustable, heated air-suspension seat. Optional 45° hydraulic access ladder for ease of operator entry and exit.

Enhanced hydraulic system

Enhanced hydraulic system

Smarter hydraulics with increased flow at higher pressures and new EPC valves improve machine logic to match working loads.* New filter by-pass sensors monitor system health and alert operators if clogging conditions exist.

Improved operator awareness

Improved operator awareness

Standard KomVision -camera system provides a bird’s-eye view of the surrounding area for improved operator situational awareness.* Komtrax Plus enables expanded monitoring of the fleet via satellite and wireless LAN.


Specifications

Metric Imperial (US)
Expand all

  • Drive method: 2 x hydraulic motors
  • Swing reduction: Planetary gear
  • Swing circle lubrication: Grease-bathed
  • Service brake: Oil disc brake
  • Holding brake/Swing lock: Mechanical disc brake
  • Swing speed (rpm): 5.8
  • Swing torque (ft-lbs): 299,524
  • Swing torque (kN-m): 406.1

  • HydrauMind Type: Open-center load sensing system, 1 selectable working mode
  • Hydraulic cylinders

    • Boom (Number of cylinders – bore x stroke x rod diameter)(in): 8.9 x 94.1 x 6.3
    • Boom (Number of cylinders – bore x stroke x rod diameter)(mm): 225 x 2 390 x 160
    • Arm (Number of cylinders – bore x stroke x rod diameter)(in): 9.8 x 95.9 x 6.7
    • Arm (Number of cylinders – bore x stroke x rod diameter)(mm): 250 x 2 435 x 170
  • Main pump

    • Variable Type: Variable capacity piston
    • Maximum flow implement and travel (L/min): 2 x 494
    • Maximum flow implement and travel (gpm): 2 x 130.5
    • Maximum flow swing (gpm): 1 x 158.5
    • Maximum flow swing (L/min): 1 x 600
    • Sub-pump for control circuit: Gear type
  • Relief valve setting

    • Implement circuits (psi): 4,550
    • Travel circuit (psi): 4,980
    • Implement circuits (MPa): 31.4
    • Swing circuit (psi): 4267
    • Pilot circuit (psi): 455
    • Implement circuits (kgf/cm^2): 320
    • Pilot circuit (kgf/cm^2): 33
    • Pilot circuit (MPa): 3.1
    • Swing circuit (kgf/cm^2): 300
    • Swing circuit (MPa): 29.4
    • Travel circuit (kgf/cm^2): 350
    • Travel circuit (MPa): 34.3
  • Bucket

    • SP / 2 (in): 6.3 x 76.8 x 4.5
    • SP / 2 (mm): 160 x 1 950 x 115
    • Standard / 2 (mm): 160 x 1 825 x 115
    • Standard / 2 (in): 6.3 x 71.8 x 4.5
  • Hydraulic motors

    • Travel: 2 x axial piston motors with parking brake
    • Swing: 2 x axial piston motors with swing holding brake

  • Fuel tank (US gal): 359.3
  • Coolant (US gal): 37.5
  • Engine (US gal): 22.7
  • Final drive (US gal): 5.5
  • Swing drive (L): 2 x 20
  • Swing drive (US gal): 2 x 5.3
  • Hydraulic tank (L): 670
  • Hydraulic tank (US gal): 177
  • Engine (L): 86
  • Fuel tank (L): 1 360
  • Final drive (L): 21
  • Coolant (L): 142

  • Operating weight features (mm): PC1250LC-11: Operating weight, including 9 100 mm boom, 3 400 mm arm, 5.0 m³ bucket, operator, lubricant, coolant, full fuel tank, and standard equipment.
  • Operating weight features (ft): PC1250LC-11: Operating weight, including 29 ft. 10 in boom, 11 ft. 2 in arm, 6.5 yd³ bucket, operator, lubricant, coolant, full fuel tank, and standard equipment
  • Double grouser shoes

    • Ground pressure with double-grouser shoes 1 000 mm (kg/cm^2): 0.95
    • Ground pressure with double-grouser shoes 39.4 in (psi): 13.45
    • Operating weight with double-grouser shoes 39.4 in (lbs): 269,300
    • Operating weight with double-grouser shoes 1 000 mm (kg): 122 409
    • Ground pressure with double-grouser shoes 47.25 in (psi): 11.35
    • Ground pressure with double-grouser shoes 1 200 mm (kg/cm^2): 0.80
    • Operating weight with double-grouser shoes 47.25 in (lbs): 272,600
    • Operating weight with double-grouser shoes 1 200 mm (kg): 11.35

  • Engine Model: Komatsu SAA6D170E-7*
  • Cooling Type: Water-cooled, 4-cycle, direct injection
  • Aspiration: Turbocharged, aftercooled, cooled, EGR
  • Number of cylinders: 6
  • Bore (mm): 170
  • Bore (in): 6.69
  • Stroke (in): 6.69
  • Stroke (mm): 170
  • Piston displacement (L): 23.15
  • Piston displacement (in^3): 1,413
  • Engine Rated (rpm): 1,800
  • Governor: All-speed control, electronic
  • Fan drive method for radiator cooling: Hydraulic
  • Horsepower

    • SAEJ1995 - Gross (kW): 578
    • SAEJ1995 - Gross (HP): 775
    • ISO 9249 / SAE J1349 - Net (kW): 565
    • ISO 9249 / SAE J1349 - Net (HP): 758
    • Fan at maximum speed - Net (HP): 696
    • Fan at maximum speed - Net (kW): 519

  • Drive method type: Fully hydrostatic
  • Maximum drawbar pull (lbf): 154,320
  • Service brake type: Hydraulic lock
  • Parking brake: Oil disc brake
  • Gradeability: 70%, 35°
  • Travel motor: Axial piston motor, in-shoe design
  • Maximum travel speed

    • High (mph): 2
    • High (kph): 3.3
    • Low (mph): 1.5
    • Low (kph): 2.3

  • Center frame: H-leg
  • Track frame: Box-section
  • Track adjuster: Hydraulic
  • Number of shoes (each side): 48
  • Number of carrier rollers (each side): 3
  • Number of track rollers (each side): 8
  • Seal of track: Sealed

  • Exterior – ISO 6395 (dB(A)): 109.9
  • Operator – ISO 6396 (dB(A)): 68.5

  • Number of Long Undercarriage shoes (each side): 55
  • Number of Long Undercarriage track rollers (each side): 10
Metric Imperial (US)
Engine
  • Automatic Engine warm-up system
  • Dry type air cleaner, double element
  • Engine, Komatsu SAA6D170E-7
  • Fuel pre-filter with water separator
  • Variable speed cooling fan, hydraulic drive, reversible
Electrical system
  • Alternator, 24 V/90 A
  • Auto idle shutdown (programmable)
  • Auto-decelerator
  • Batteries, 2 x 12 V/220 Ah
  • Battery disconnect switch w/lock out - tag out
  • Circuit breaker
  • Lever lock auto-lock
  • Power supply, 12 V
  • Starting motor, 2 x 24 V/11k
  • Step light with timer
  • Service isle light
  • Working lights, 2 boom, 2 Cab roof front, 1 right front, 2 LED rear facing
Guards and covers
  • Cab guards
    -Bolt-on top guard, OPG Level 2 (ISO 10262)
  • Strengthened revolving frame underguards
  • Revolving frame swivel guard
  • Track guiding guards, ends and center
  • Travel motor guard
  • Radiator and oil cooler dustproof net
Hydraulic system
  • 2 speed travel with auto shift
  • Power+ work mode
  • Automatic swing holding brake
  • Fully hydraulic, with Open-Center Load-Sensing and Engine speed sensing
    (Pump and Engine mutual control system)
  • Heavy lift mode
  • In-line high pressure pump outlet filters
  • Pressure Proportional Control (PPC) hydraulic control system
  • Shockless control system for boom
  • Two-mode setting for boom
Operator environment
  • 2 x 12V power ports in Cab
  • Auto climate control, A/C with defroster
  • AM/FM radio
  • Auxiliary input (3.5 mm jack)
  • Cab with opening front window
  • Engine shut down secondary switch
  • High back air suspension seat, heated
  • KomVision, 4 camera system
  • Large high resolution LCD color monitor
  • Lock lever
  • Mirrors (RH,LH)
  • Rear & Side view monitor system
  • Seat belt, retractable, 3"
  • Washable Cab floor mat
Other equipment
  • Counterweight, 36,640 lb
  • Electric priming pump for fuel system
  • Equipment Management Monitoring System
  • Grease gun, with hose reel and air power pump
  • Hand rails & guard rails
  • Horn, air
  • KOMTRAX 5.0 with KOMTRAX Plus
  • One-touch Engine oil drainage
  • Preventive Maintenance (PM) service connector
  • Tie off points on boom & arm
  • Rear reflector
  • Seat belt indicator
  • Slip-resistant plates
  • Travel alarm
  • Vandalism protection locks
  • Wide walkways
PC1250LC-11 undercarriage
  • Carrier rollers, 3 (Each side)
  • Hydraulic track adjusters (Each side)
  • Track rollers, 10 (Each side)
  • Track shoes, 39.4"double grouser
Engine
  • Automatic Engine warm-up system
  • Dry type air cleaner, double element
  • Engine, Komatsu SAA6D170E-7
  • Fuel pre-filter with water separator
  • Variable speed cooling fan, hydraulic drive, reversible
Electrical system
  • Alternator, 24 V/90 A
  • Auto idle shutdown (programmable)
  • Auto-decelerator
  • Batteries, 2 x 12 V/220 Ah
  • Battery disconnect switch w/lock out - tag out
  • Circuit breaker
  • Lever lock auto-lock
  • Power supply, 12 V
  • Starting motor, 2 x 24 V/11k
  • Step light with timer
  • Service isle light
  • Working lights, 2 boom, 2 Cab roof front, 1 right front, 2 LED rear facing
Guards and covers
  • Cab guards
    -Bolt-on top guard, OPG Level 2 (ISO 10262)
  • Strengthened revolving frame underguards
  • Revolving frame swivel guard
  • Track guiding guards, ends and center
  • Travel motor guard
  • Radiator and oil cooler dustproof net
Hydraulic system
  • 2 speed travel with auto shift
  • Power+ work mode
  • Automatic swing holding brake
  • Fully hydraulic, with Open-Center Load-Sensing and Engine speed sensing
    (Pump and Engine mutual control system)
  • Heavy lift mode
  • In-line high pressure pump outlet filters
  • Pressure Proportional Control (PPC) hydraulic control system
  • Shockless control system for boom
  • Two-mode setting for boom
Operator environment
  • 2 x 12V power ports in Cab
  • Auto climate control, A/C with defroster
  • AM/FM radio
  • Auxiliary input (3.5 mm jack)
  • Cab with opening front window
  • Engine shut down secondary switch
  • High back air suspension seat, heated
  • KomVision, 4 camera system
  • Large high resolution LCD color monitor
  • Lock lever
  • Mirrors (RH,LH)
  • Rear & Side view monitor system
  • Seat belt, retractable, 75 mm
  • Washable Cab floor mat
Other equipment
  • Counterweight, 16620 kg
  • Electric priming pump for fuel system
  • Equipment Management Monitoring System
  • Grease gun, with hose reel and air power pump
  • Hand rails & guard rails
  • Horn, air
  • KOMTRAX 5.0 with KOMTRAX Plus
  • One-touch Engine oil drainage
  • Preventive Maintenance (PM) service connector
  • Tie off points on boom & arm
  • Rear reflector
  • Seat belt indicator
  • Slip-resistant plates
  • Travel alarm
  • Vandalism protection locks
  • Wide walkways
PC1250LC-11 undercarriage
  • Carrier rollers, 3 (Each side)
  • Hydraulic track adjusters (Each side)
  • Track rollers, 10 (Each side)
  • Track shoes, 1000 mm double grouser
Metric Imperial (US)
Guards and covers
  • Cab guards -Full front guard, OPG Level 2 (ISO 10262)
Operator environment
  • Hydraulically operated access stairway
  • Hydraulic operated access stairway Field Installation Kit
Undercarriage
  • PC1250LC-11 - 47.2" double grouser track shoes
Other
  • Boom cylinders only
Work equipment
  • Booms PC1250LC-11 -29'10" boom assembly
  • Arms PC1250LC-11 -11'2" arm assembly -14'9" arm assembly -18'8" arm assembly

Guards and covers

  • Cab guards -Full front guard, OPG Level 2 (ISO 10262)

Operator environment

  • Hydraulically operated access stairway
  • Hydraulic operated access stairway Field Installation Kit

UNDERCARRIAGE

  • PC1250LC-11 -1200 mm double grouser track shoes

Other

  • Boom cylinders only

Work equipment

  • Booms PC1250LC-11 -9100 mm boom assembly
  • Arms PC1250LC-11 -3400 mm arm assembly -4500 mm arm assembly -5700 mm arm assembly
