Dozers

D65WX-18

Mid-size dozers

  • Horsepower (HP) 217 HP @ 1,950 rpm
  • Horsepower (kW) 162 kW @ 1 950 rpm
  • Operating weight (kg) 22 117 - 23 373
  • Operating weight (lbs) 48,760 - 51,529
  • Blade capacity (m^3) 5.9
  • Blade capacity (yd^3) 7.7

Purchase options

Request a quote Find a dealer

Torque converter dozers for your heavy jobs

For work sites with steep terrain, choose a dozer designed to excel on slopes. The D65WX-18 joins the EX's standard-length track and the PX's wide gauge and a choice of high-capacity blades. Extended wear life undercarriage with 30” track shoes is standard.

  • Engineered for powerful dozing
  • Excellent blade capacity
  • Quiet cab with smooth ride and great visibility

Features and benefits

Custom build the dozer you need

Custom build the dozer you need

All the dozers in the D65/85/155 family offer you outstanding power, economy and reliability. Customize yours with the blade (straight, Semi-U, Sigmadozer and Full U (D155 only)), track shoe width and horsepower combo best suited to your particular application.

Helps minimize fuel use

Helps minimize fuel use

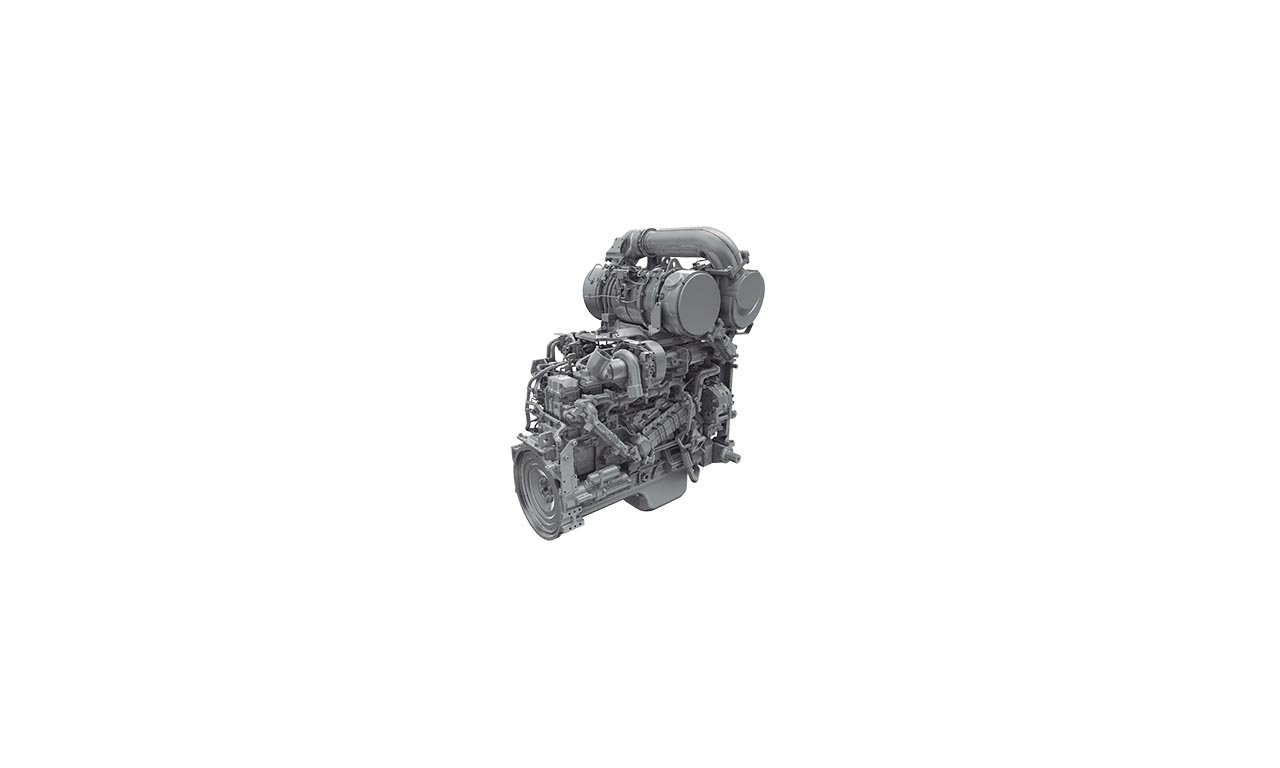

An advanced Tier 4 engine offers you a potent combo of power and fuel efficiency. An auto idle shutdown, adjustable from 5-60 minutes, also helps cut fuel use and emissions.

Controls help fight operator fatigue

Controls help fight operator fatigue

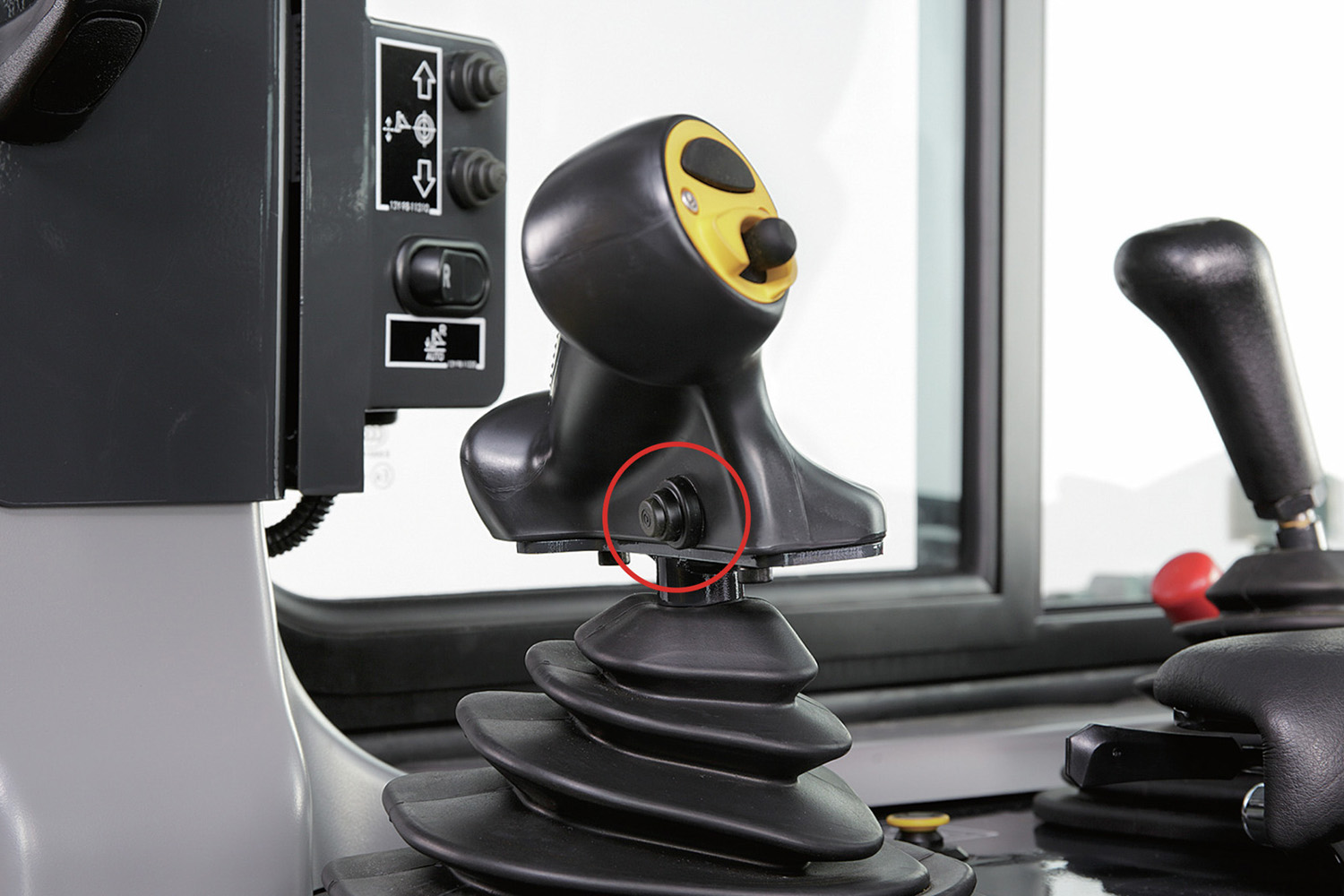

Operators will enjoy the palm command electronic control joysticks that fit the natural relaxed shape of their hands. Auto-shift or manual-shift modes are easily selected with one push of a button for precision with less fatigue over the course of a shift.

Smooth, powerful handling

Smooth, powerful handling

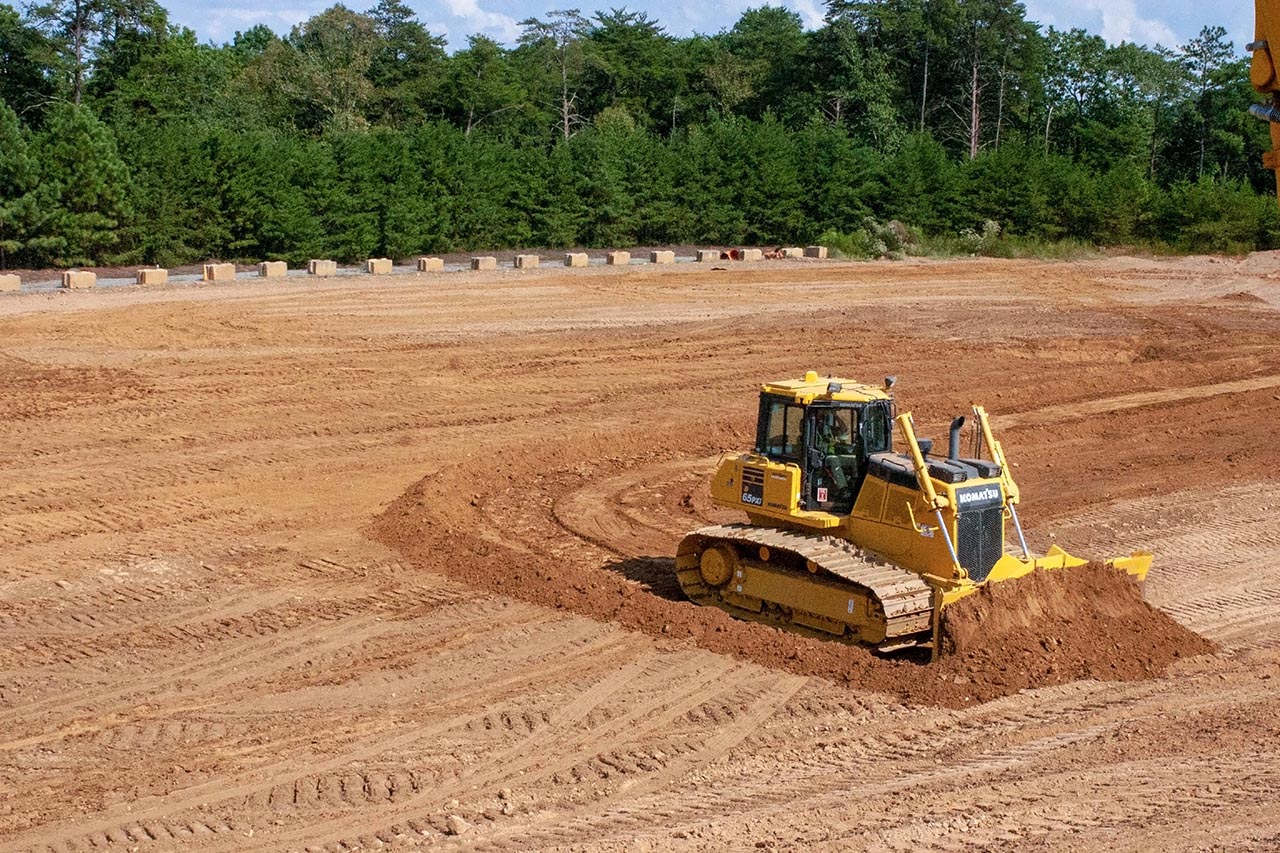

Your operators can execute smooth powerful turns with the hydrostatic steering system. It transmits engine power to both tracks without power interruption and minimizes turning radius with counter-rotation while in neutral.

Long-lasting undercarriage

Long-lasting undercarriage

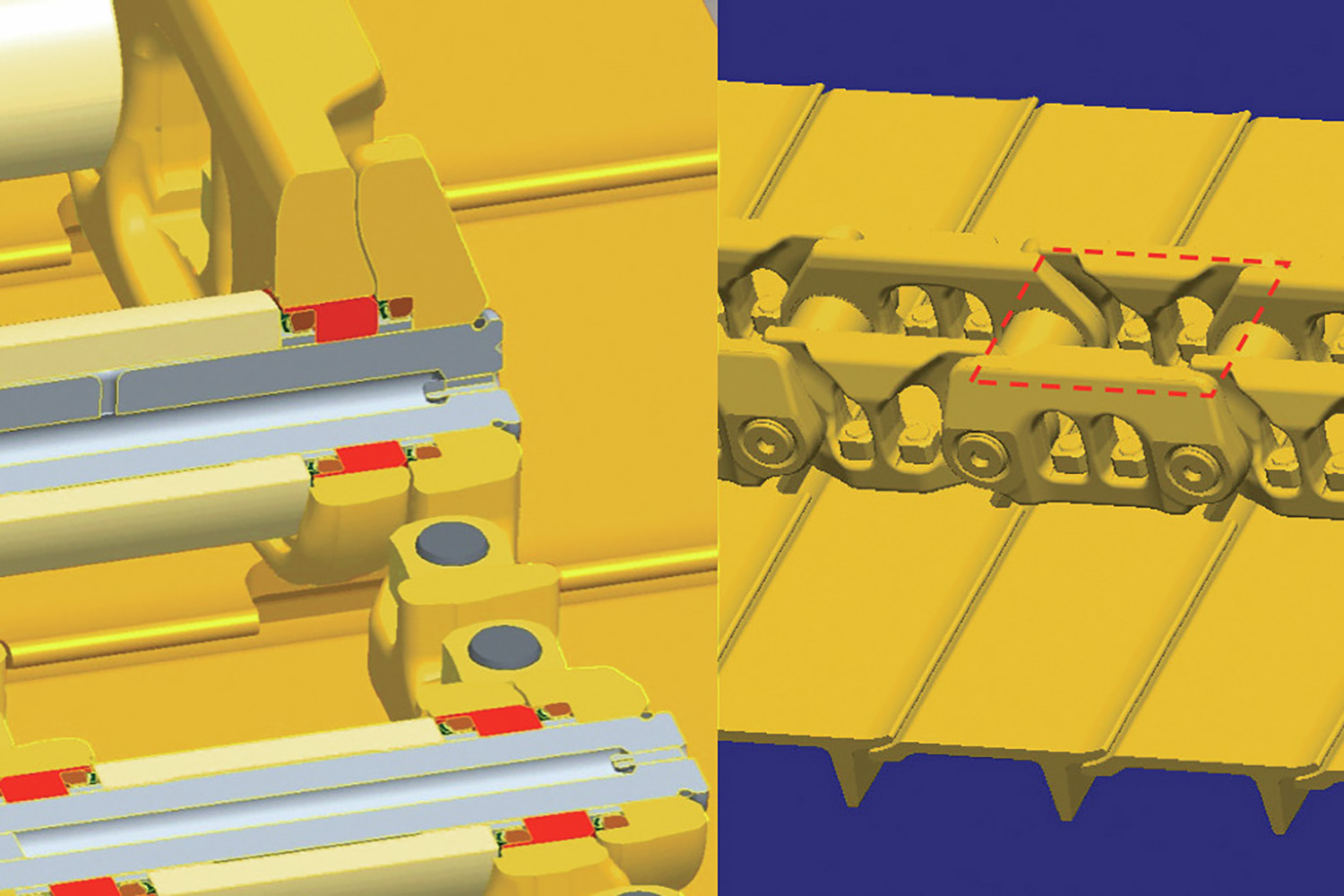

Get the most from your dozer. The Parallel Link Undercarriage System (PLUS) with rotating bushings delivers up to twice the life of our conventional undercarriage with no pin and bushing turn required. Parts wear evenly and last longer before needing replacement.

Work with fuel-efficient power

Work with fuel-efficient power

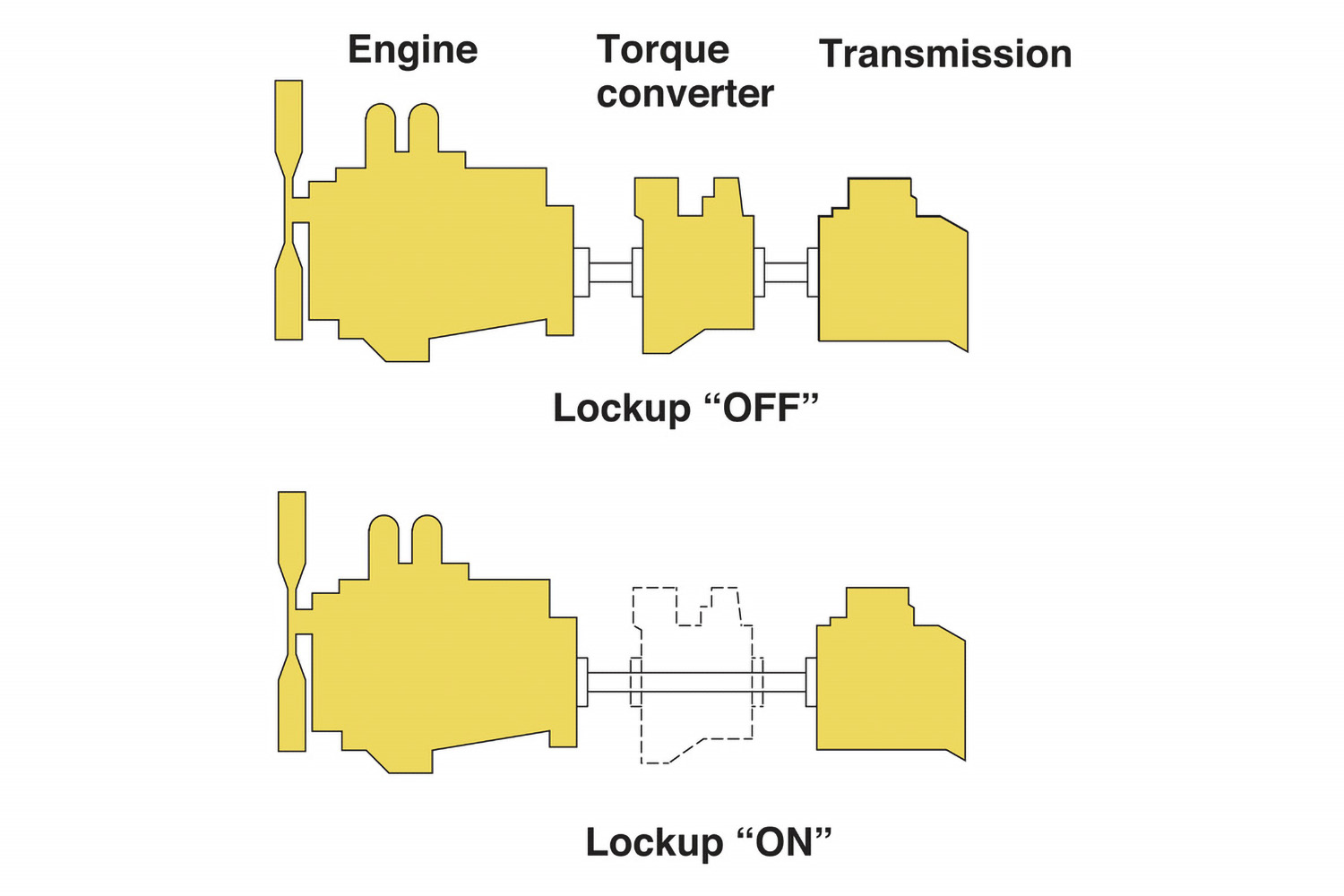

Seek maximum work efficiency with a lock-up torque converter. It determines the appropriate gear based on load and conditions. The lockup mechanism then automatically transfers engine power directly to the transmission, helping boost drive train efficiency.

Help operators stay focused

Help operators stay focused

Your operators perform best when they’re comfortable. That’s why they’ll love the air suspension seat with lumbar support and tilt. It’s easy for them to adjust to suit their needs, and electric heat helps them stay comfortable in the cold.


Specifications

Metric Imperial (US)
Expand all

  • Suspension: Oscillating equalizer bar and pivot shaft
  • Track roller frame: Monocoque, large section, durable construction
  • Rollers and idlers: Lubricated
  • Type of shoes (standard): MS PLUS
  • Number of track rollers (each side): 7
  • Number of shoes (each side): 42
  • Lubricated tracks: Parallel Link Undercarriage System (PLUS) with lubricated rotating bushings for extended system wear life and lower maintenance costs. Track tension is easily adjusted with grease gun.
  • Grouser height (in): 2.6
  • Grouser height (mm): 65
  • Shoe width (standard)(mm): 760
  • Shoe width (standard)(in): 30
  • Ground contact area (cm^2): 50 969
  • Ground contact area (ft2): 54.9
  • Ground pressure (with standard shoe)(ISO 16754)(psi): 5.57
  • Ground pressure (with standard shoe)(ISO 16754)(kg/cm^2): 0.39
  • Ground pressure (with standard shoe)(ISO 16754)(kpa): 38
  • Track gauge (mm): 2 050
  • Track gauge (ft): 6 ft. 9 in
  • Length of track on ground (mm): 2 970
  • Length of track on ground (ft): 9 ft. 9 in
  • Tractor specifications details: Tractor for outside mounted blade (Straight Tilt, Semi-U,SIGMADOZER®) and Tractor with inside mounted PAT blade (requires Waste Package). See page 17 for tractor/blade combinations.

  • Hydraulic system features: Closed-Center Load Sensing System (CLSS) designed for precise and responsive control, and for efficient simultaneous operation.
  • Hydraulic control unit (ltr/min): All spool valves externally mounted beside the hydraulic tank. Piston type hydraulic pump with capacity (discharge flow) of 248 L/min 65.5 US gpm at rated engine rpm.
  • Hydraulic control unit (U.S. gal/min): All spool valves externally mounted beside the hydraulic tank. Piston type hydraulic pump with capacity (discharge flow) of 65.5 US gpm at rated engine rpm.
  • Relief valve setting (psi): 4,050
  • Relief valve setting (kg/cm^2): 285
  • Relief valve setting (MPa): 27.9
  • Control valve: Spool control valves for SIGMADOZER® or straight tilt dozer
    • Positions

      • Blade lift: Raise, hold, lower, and float
      • Blade tilt: Right, hold, and left
      • Rear attachment: Raise, hold and lower

  • Engine Model: Komatsu SAA6D114E-6*
  • Dozers type: 4-cycle, water-cooled, direct injection
  • Aspiration: Komatsu variable geometry turbocharged, air-to-air aftercooled
  • Number of cylinders: 6
  • Bore x stroke (in): 4.49 x 5.69
  • Bore x stroke (mm): 114 x 144.5
  • Piston displacement (L): 8.85
  • Piston displacement (in^3): 540
  • Governor: All-speed and mid-range, electronic
  • Footnote: *EPA Tier 4 Final emissions certified
  • Horsepower

    • SAEJ1995 - Gross (kW): 164
    • SAEJ1995 - Gross (HP): 220
    • ISO 9249 / SAE J1349 - Net (HP): 217
    • ISO 9249 / SAE J1349 - Gross (kW): 162
    • Rated RPM: 1,950
    • Fan drive type: Hydraulic
  • Lubrication system

    • Filter: Full-flow
    • Method: Gear pump, force lubrication

  • Fuel tank (US gal): 109.6
  • Fuel tank (L): 415
  • Diesel Exhaust Fluid (DEF) tank (L): 23.5
  • Diesel Exhaust Fluid (DEF) tank (US gal): 6.2
  • Coolant (US gal): 12.9
  • Coolant (L): 49
  • Engine oil (US gal): 8.1
  • Engine oil (L): 30.5
  • Torque converter, transmission, bevel gear, and steering system (US gal): 12.7
  • Torque converter, transmission, bevel gear, and steering system (L): 48
  • Final drive (L): 27
  • Final drive (US gal): 7.1

  • Transmission features: Komatsu TORQFLOW transmission consists of a water-cooled, 3-element, 1-stage, 2-phase, torque converter with lockup clutch, and a planetary gear, multiple-disc clutch transmission which is electronically controlled, hydraulically actuated and force-lubricated for optimum heat dissipation. Shift lock lever and neutral safety switch.
  • Forward

    • 1st torqflow forward (kph): 3.7
    • 1st torqflow forward (mph): 2.3
    • 2nd torqflow forward (kph): 5.6
    • 2nd torqflow forward (mph): 3.5
    • 3rd torqflow forward (kph): 11.3
    • 3rd torqflow forward (mph): 7
    • 3rdL torqflow forward (kph): 7.3
    • 3rdL torqflow forward (mph): 4.5
  • Reverse

    • 1st torqflow reverse (kph): 4.5
    • 1st torqflow reverse (mph): 2.8
    • 2nd torqflow reverse (kph): 6.7
    • 2nd torqflow reverse (mph): 4.2
    • 3rd torqflow reverse (kph): 13.6
    • 3rd torqflow reverse (mph): 8.5
    • 3rdL torqflow reverse (kph): 8.7
    • 3rdL torqflow reverse (mph): 5.4

  • Operating weight

    • Operating weight (lbs): 48,760 - 51,529
    • Operating weight (kg): 22 117 - 23 373

  • Steering system features: Palm Command Control System (PCCS) lever controls for all directional movements. Pushing the PCCS lever forward results in forward machine travel, while pulling it rearward reverses the machine. Simply tilt the PCCS lever to the left for a left turns, tilt it right for right turns. Hydrostatic Steering System (HSS) power has been increased 25% by a larger HSS motor, greater hydraulic pump flow, and more engine power while steering. The result is more powerful turns and quicker counter-rotation. Wet, multiple-disc, pedalcontrolled service brakes are spring-actuated and hydraulically released. Gear shift lock lever also applies parking brake.
  • Minimum turning radius (in): 83
  • Minimum turning radius (m): 2.1

  • Final drive features: Double-reduction planetary gear final drives increase drawbar pull and reduce stresses for longer life. Segmented sprocket teeth are bolt-on for easy replacement. Triple labyrinth housing protects the final drive seals.
Metric Imperial (US)
  • Air cleaner, double element with dust indicator
  • Alternator, 90 ampere/24V
  • Auto idle shutdown function
  • Backup alarm
  • Batteries, 200 Ah/2 x 12V
  • Battery disconnect switch with lockout/tagout
  • Blade lift cylinders
  • Color monitor, LCD
  • Decelerator pedal
  • Engine hood
  • Engine intake centrifugal precleaner
  • Engine, gull-wing side covers
  • Engine shutdown secondary switch
  • Fenders
  • Front pull hook
  • High mount foot rests
  • Horn, warning
  • Hydraulic driven radiator cooling fan with reverse clean mode
  • Hydraulics for rear equipment
  • KOMTRAX® Level 5
  • Komatsu Diesel Particulate Filter (KDPF)
  • Komatsu Variable Geometry Turbocharger (KVGT)
  • Locks, filler caps and covers
  • Muffler with curved exhaust pipe
  • Oil pressure check ports for power train
  • Oil sampling ports for Engine, Trans, Hydraulics
  • Operator ID function
  • PM service connector
  • Radiator mask, heavy-duty, hinged, perorated
  • Radiator reserve tank
  • Rear cover
  • ROPS Cab**
    • 75 dB operator ear noise level
    • Air conditioner with fresh air pre-cleaner
    • Cab accessories
      12V power supply (2 ports)
      -Cup holder
      -Rearview mirror
      -Rear view monitoring (1 camera)
      -Radio, Bluetooth/USB compatible
    • Shovel holder
    • Work lights, LED type
      -2 front, hood mounted
      -2 front, Cab mounted
      -1 rear, left fender mounted
      -2 rear, Cab mounted
  • Seat, air suspension, fabric, heated low back, rotates 12.5° to right, headrest
  • Seat belt, 3", retractable
  • Seat belt indicator
  • Sealed electrical connectors
  • Secondary Engine shutoff switch
  • Starting motor, 24V
  • Steering system: Hydrostatic Steering System (HSS)
  • Tie-off points standard ISO 14567
  • Torque converter with auto lock-up
  • Track roller guards, center and end sections
  • Track shoe assembly
    - Heavy-Duty lubricated rotary bushing (PLUS) track
    • 24" MS shoe (EX with outside mount blade)
    • 30" MS shoe (WX with outside mount blade)
    • 30" MS shoe (PX PAT requires WASTE PACKAGE)
    • 36" MS shoe (PX with outside mount blade)
  • Transmission with auto/manual shift modes
  • Underguards, heavy duty
  • Hinged belly pan
  • Transmission
  • Water separator
  • Wide core cooling package

* Dozer assembly and rear mounted equipment are not included in base machine standard equipment
** Cab meets OSHA/MSHA ROPS and FOPS Level 2 standards

  • Air cleaner, double element with dust indicator
  • Alternator, 90 ampere/24V
  • Auto idle shutdown function
  • Backup alarm
  • Batteries, 200 Ah/2 x 12V
  • Battery disconnect switch with lockout/tagout
  • Blade lift cylinders
  • Color monitor, LCD
  • Decelerator pedal
  • Engine hood
  • Engine intake centrifugal precleaner
  • Engine, gull-wing side covers
  • Engine shutdown secondary switch
  • Fenders
  • Front pull hook
  • High mount foot rests
  • Horn, warning
  • Hydraulic driven radiator cooling fan with reverse clean mode
  • Hydraulics for rear equipment
  • KOMTRAX® Level 5
  • Komatsu Diesel Particulate Filter (KDPF)
  • Komatsu Variable Geometry Turbocharger (KVGT)
  • Locks, filler caps and covers
  • Muffler with curved exhaust pipe
  • Oil pressure check ports for power train
  • Oil sampling ports for Engine, Trans, Hydraulics
  • Operator ID function
  • PM service connector
  • Radiator mask, heavy-duty, hinged, perorated
  • Radiator reserve tank
  • Rear cover
  • ROPS Cab**
    • 75 dB operator ear noise level
    • Air conditioner with fresh air pre-cleaner
    • Cab accessories
      12V power supply (2 ports)
      -Cup holder
      -Rearview mirror
      -Rear view monitoring (1 camera)
      -Radio, Bluetooth/USB compatible
    • Shovel holder
    • Work lights, LED type
      -2 front, hood mounted
      -2 front, Cab mounted
      -1 rear, left fender mounted
      -2 rear, Cab mounted
  • Seat, air suspension, fabric, heated low back, rotates 12.5° to right, headrest
  • Seat belt, 76 mm, retractable
  • Seat belt indicator
  • Sealed electrical connectors
  • Secondary Engine shutoff switch
  • Starting motor,11 kW
  • Steering system: Hydrostatic Steering System (HSS)
  • Tie-off points standard ISO 14567
  • Torque converter with auto lock-up
  • Track roller guards, center and end sections
  • Track shoe assembly
    - Heavy-Duty lubricated rotary bushing (PLUS) track
    • 610 mm MS shoe (EX with outside mount blade)
    • 760 mm MS shoe (WX with outside mount blade)
    • 760 mm MS shoe (PX PAT requires WASTE PACKAGE)
    • 915 mm MS shoe (PX with outside mount blade)
  • Transmission with auto/manual shift modes
  • Underguards, heavy duty
  • Hinged belly pan
  • Transmission
  • Water separator
  • Wide core cooling package

* Dozer assembly and rear mounted equipment are not included in base machine standard equipment
** Cab meets OSHA/MSHA ROPS and FOPS Level 2 standards

Metric Imperial (US)
  • Dozer assembly
  • Drawbar, long type
  • Hitch
  • Rear counterweight 1,870 lbs.
  • Straight tilt frame for use with allied blades
  • Track roller guard, full length
  • Waste Package, available with EX semi-u, PX straight, PX PAT

Multi-shank ripper (for D65EX/WX)

  • Weight
    4,230 lbs.
  • Beam length
    7'1"
  • Maximum lift above ground
    2'1"
  • Maximum digging depth
    1'11"
  • Dozer assembly
  • Drawbar, long type
  • Hitch
  • Rear counterweight 850 kg
  • Straight tilt frame for use with allied blades
  • Track roller guard, full length
  • Waste Package, available with EX semi-u, PX straight, PX PAT

Multi-shank ripper (for D65EX/WX)

  • Weight
    1 920 kg
  • Beam length
    2 170 mm
  • Maximum lift above ground
    640 mm
  • Maximum digging depth
    590 mm
