Dozers

D61EX-24

Mid-size dozers

  • Horsepower (HP) 168 HP @ 2,200 rpm
  • Horsepower (kW) 125 kW @ 2 200 rpm
  • Operating weight (kg) 18 520
  • Operating weight (lbs) 40,830
  • Blade capacity (m^3) 3.37
  • Blade capacity (yd^3) 4.41

Purchase options

Request a quote Find a dealer

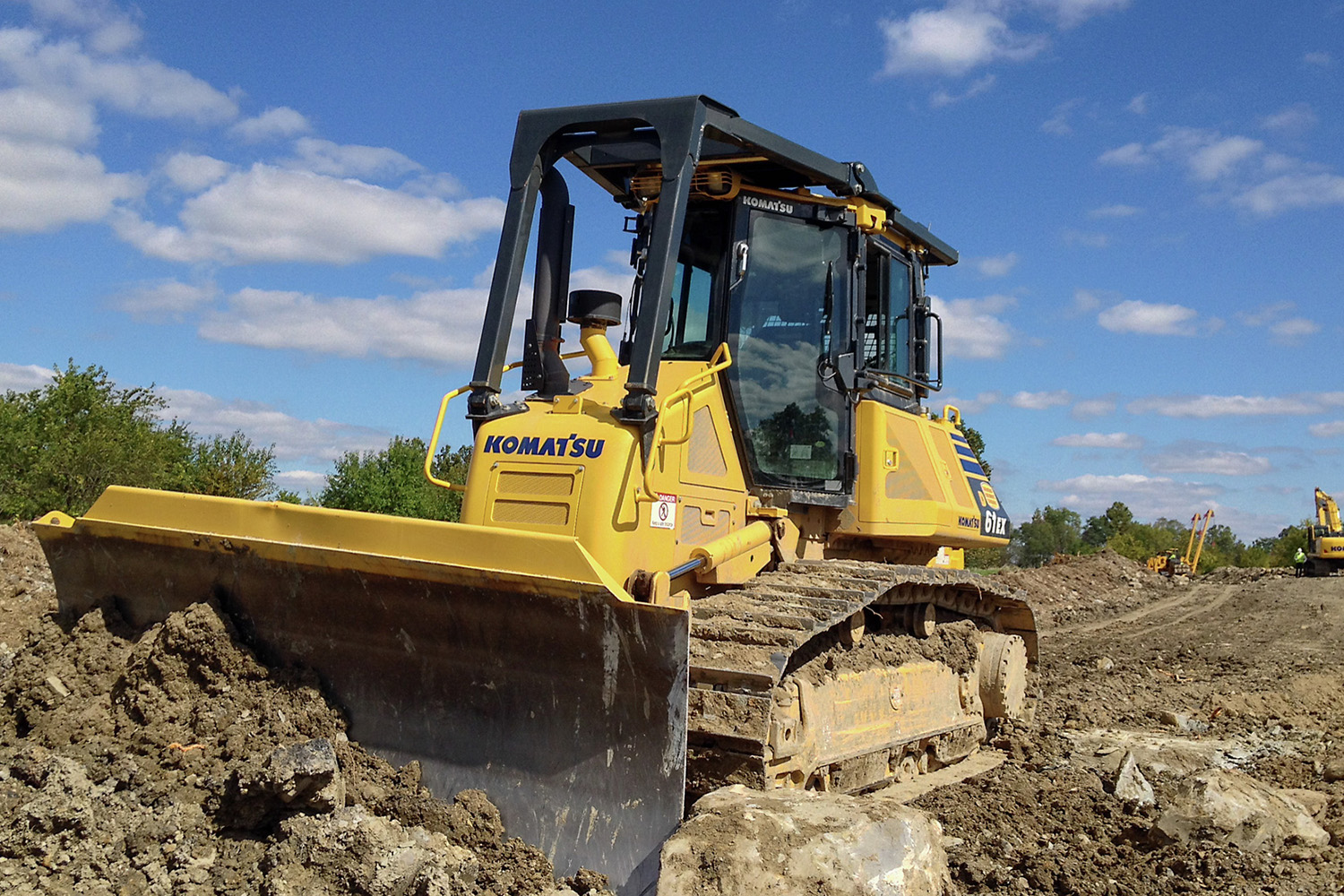

A mid-size dozer built for versatility

Versatile to accomplish any task, the D61EX-24 brings excellent visibility to all your projects. The second-generation mid-size dozer comes with a new H mode that helps operators maintain ground speed while operating under heavy loads.

  • Next step up in size
  • Can step in for some heavier dozing
  • Fuel consumption is reduced up to an additional 5% over prior model

Features and benefits

Parallel Link Undercarriage System (PLUS)

Parallel Link Undercarriage System (PLUS)

Designed to wear evenly so the machine provides close to 100% usage of undercarriage components, Komatsu PLUS undercarriage lowers undercarriage maintenance costs by up to 40% over a conventional undercarriage. Strengthened rollers and links increase wear life up to two times.

PAT dozer with adjustable pitch

PAT dozer with adjustable pitch

Expand your productivity and gain more versatility in a variety of applications with a power angle tilt (PAT) dozer blade with adjustable blade pitch system.

Exceptional blade visibility

Exceptional blade visibility

An innovative super-slant nose design provides excellent blade visibility for improved machine control and increased efficiency and productivity.

HST with electronic control

HST with electronic control

Fully electronic control provides complete automatic shifting and enables smooth control. Equipped with Komatsu-designed HST, this machine allows for Quick-Shift or variable speed selection.

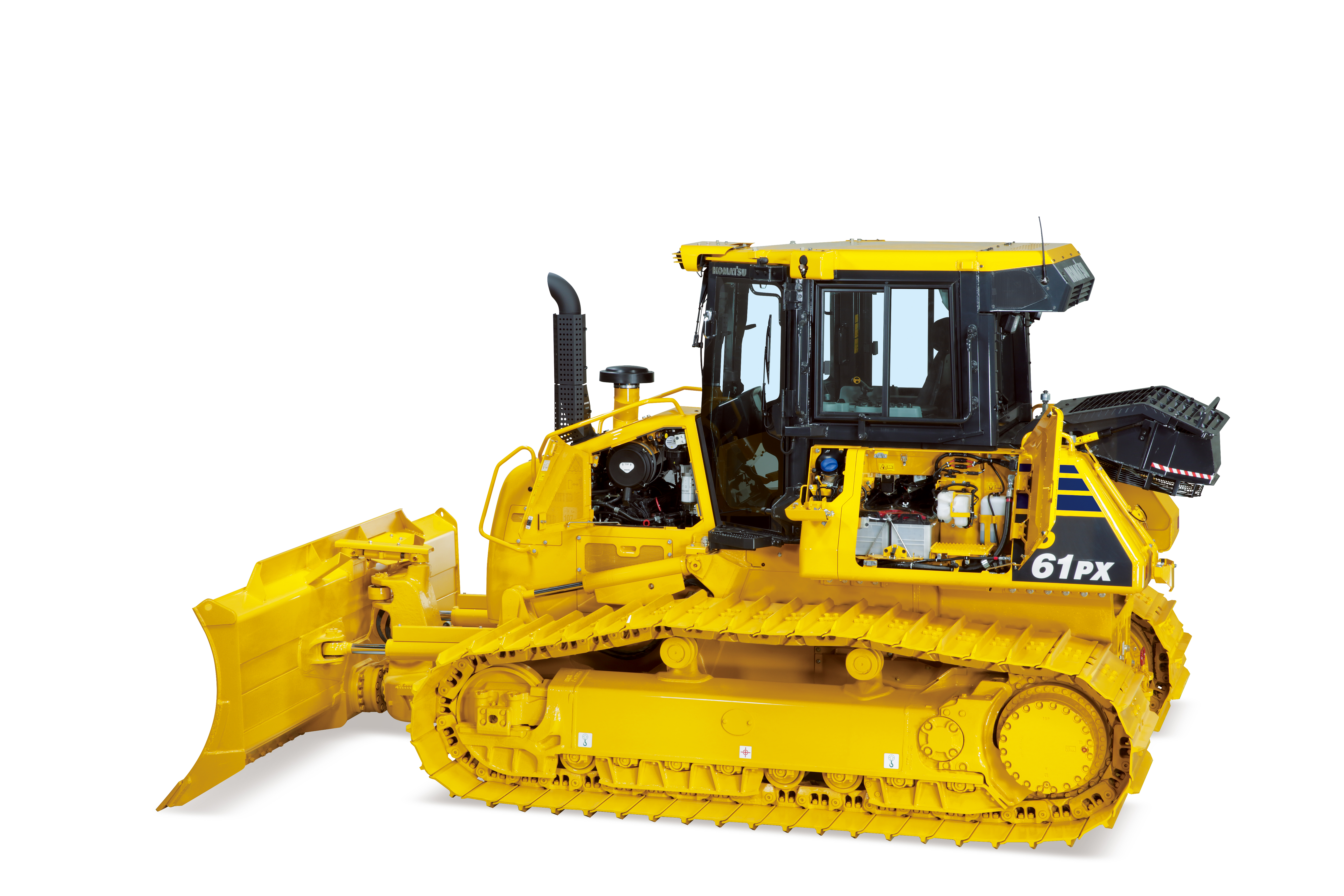

Easy-access maintenance features

Easy-access maintenance features

A swing-up fan with a gas strut-assisted lift system provides easy access to the radiator, oil cooler and charge air cooler. The hydraulic fan has a reversing fan for cleaning any objects that are restricting air flow.

Palm command control system lever

Palm command control system lever

Designed for your operator’s comfort and ease of use, the ergonomic, low-effort palm command control system (PCCS) joystick controls all directional movements, including machine travel speed, as well as counter-rotation.


Specifications

Metric Imperial (US)
Expand all

  • Suspension: Oscillating-type with equalizer bar and pivot shafts
  • Track roller frame: Monocoque, large section, durable construction
  • Rollers and idlers: Lubricated track rollers
  • Type of shoes (standard): Single grouser
  • Number of track rollers (each side): 8
  • Number of shoes (each side): 46
  • Lubricated tracks: Parallel Link Undercarriage System (PLUS) with lubricated rotating bushings for extended system wear life and lower maintenance costs. Track tension is easily adjusted with grease gun.
  • Grouser height (in): 2.3
  • Grouser height (mm): 57.5
  • Shoe width (standard)(mm): 600
  • Shoe width (standard)(in): 24
  • Ground contact area (cm^2): 37 980
  • Ground contact area (ft2): 40.9
  • Ground pressure (with standard shoe)(ISO 16754)(psi): 6.29
  • Ground pressure (with standard shoe)(ISO 16754)(kg/cm^2): 0.44
  • Ground pressure (with standard shoe)(ISO 16754)(kpa): 43.37
  • Track gauge (mm): 1 900
  • Track gauge (ft): 6 ft. 3 in
  • Length of track on ground (mm): 3 165
  • Length of track on ground (ft): 10 ft. 5 in

  • Hydrostatic transmission features: Dual-path, hydrostatic transmission provides infinite speed changes up to 9.0 km/h 5.6 mph. The variable capacity travel motors allow the operator to select the optimum speed to match specific jobs. Travel control lock lever and neutral switch.
  • Reverse

    • 1st reverse (kph): 0 - 4.1
    • 1st reverse (mph): 0 - 2.5
    • 2nd reverse (mph): 0 - 4.0
    • 2nd reverse (kph): 0 - 6.5
    • 3rd reverse (kph): 0 - 9.0
    • 3rd reverse (mph): 0 - 5.6
    • Travel speed reverse (variable mode) (kph): 0 - 9.0
    • Travel speed reverse (variable mode) (mph): 0 - 5.6
  • Forward

    • 1st forward (kph): 0 - 3.4
    • 1st forward (mph): 0 - 2.1
    • 2nd forward (kph): 0 - 5.6
    • 2nd forward (mph): 0 - 3.5
    • 3rd forward (kph): 0 - 9.0
    • 3rd forward (mph): 0 - 5.6
    • Travel speed forward (variable mode) (kph): 0 - 9.0
    • Travel speed forward (variable mode) (mph): 0 - 5.6

  • Hydraulic system features: Closed-Center Load Sensing System (CLSS) designed for precise and responsive control, and for efficient simultaneous operation.
  • Hydraulic control unit (ltr/min): All spool control valves externally mounted remote to the hydraulic tank. Piston-type hydraulic pump with capacity (discharge flow) of 171 ltr/min / 45 U.S. gal/min at rated engine rpm.
  • Hydraulic control unit (U.S. gal/min): All spool control valves externally mounted remote to the hydraulic tank. Piston-type hydraulic pump with capacity (discharge flow) of 171 L/min / 45 US gpm at rated engine rpm.
  • Relief valve setting (psi): 3,974
  • Relief valve setting (kg/cm^2): 280
  • Relief valve setting (MPa): 27.4
  • Control valve: 3-spool control valve for power angle tilt dozer
  • Hydraulic oil capacity (refill)

    • Power angle tilt dozer (US gal): 26.7
    • Power angle tilt dozer (L): 101
  • Number of cylinders

    • Blade tilt /1 (in): 4.7
    • Blade tilt /1 (mm): 120
    • Blade lift / 2 (in): 3.8
    • Blade lift / 2 (mm): 100
    • Blade angle / 2 (in): 4.3
    • Blade angle / 2 (mm): 100
    • Positions

      • Blade lift: Raise, hold, lower, and float
      • Blade tilt: Right, hold, and left
      • Blade angle: Right, hold, and left
      • Ripper lift: Raise, hold and lower
  • Hydraulic cylinders

    • Hydraulic cylinders: Double-acting, piston type

  • Engine Model: Komatsu SAA6D107E-3*
  • Dozers type: 4-cycle, water-cooled, direct injection
  • Aspiration: Komatsu Variable Geometry Turbocharged, air-to-air aftercooled, cooled EGR
  • Number of cylinders: 6
  • Bore x stroke (in): 4.21 x 4.88
  • Bore x stroke (mm): 107 x 124
  • Piston displacement (L): 6.69
  • Piston displacement (in^3): 408
  • Governor: All-speed and mid-range, electronic
  • Footnote: *EPA Tier 4 Final emissions certified
  • Horsepower

    • SAEJ1995 - Gross (kW): 127
    • SAEJ1995 - Gross (HP): 170
    • ISO 9249 / SAE J1349 - Net (HP): 168
    • ISO 9249 / SAE J1349 - Gross (kW): 125
    • Rated RPM: 2,200
    • Fan drive type: Hydraulic
    • Hydraulic fan at maximum speed - net (kW): 113
    • Hydraulic fan at maximum speed - net (HP): 152
  • Lubrication system

    • Filter: Full-flow
    • Method: Gear pump, force lubrication

  • Fuel tank (US gal): 98.3
  • Fuel tank (L): 372
  • Diesel Exhaust Fluid (DEF) tank (L): 20.5
  • Diesel Exhaust Fluid (DEF) tank (US gal): 5.4
  • Coolant (US gal): 11.9
  • Coolant (L): 45
  • Engine oil (US gal): 7.2
  • Engine oil (L): 27
  • Final drive (L): 8.1
  • Final drive (US gal): 2.2
  • Hydraulic tank (L): 101
  • Hydraulic tank (US gal): 26.7

  • Operator weight (approximate): Operating weight: Including PAT dozer, ROPS (ISO 3471) cab, operator, standard equipment, rated capacity of lubricant, coolant and full fuel tank.
  • Tractor weight

    • Tractor weight (kg): 17 530
    • Tractor weight (lbs): 38,647
    • Tractor weight inclusions: Including ROPS (ISO 3471) cab, C frame for PAT dozer, rated capacity of lubricant, coolant, full fuel tank, operator and standard equipment.
  • Operating weight

    • Operating weight (lbs): 40,830
    • Operating weight (kg): 18 520

  • Steering system features: PCCS joystick control for all directional movements. Pushing the joystick forward results in forward machine travel, while pulling it backward reverses the machine. Simply tilt the joystick to the left or right to make a turn. Tilting the joystick fully to the left or right activates counter-rotation. HST eliminates steering clutches and brakes, providing smooth powerful turns. Fully electronic control enables smooth control. The PCCS utilizes shift buttons to increase and decrease speed.
  • Minimum turning radius (in): 83
  • Minimum turning radius (m): 2.1

  • Final drive features: In-shoe mounted, axial-piston-type travel motors, with integrated two-stage planetary gear reduction. Compact, in-shoe mount reduces risk of damage by debris. Bolt-on sprocket ring with triple labyrinth seal design.
Metric Imperial (US)
  • Accumulator for Electric Proportional Control (EPC)
  • Air cleaner, dry, double element type with caution lamp on monitor
  • Air conditioner (A/C)
  • Air inlet
  • Alternator, 24 V/90 A
  • Back-up alarm
  • Batteries, large capacity 24 V/200 Ah
  • Cab accessories
    — 12 V × 2 power supply
    — Cup holder
    — Rear view mirror
    — Rear view monitor system (1 camera)
    — Bluetooth/USB compatible radio with remote AUX plug (3.5 mm)
  • Crankcase guard and underguard
  • Decelerator/brake pedal (Single pedal)
  • Electronically controlled Hydrostatic Transmission (HST) with quick-shift and variable speed settings
  • Electronic monitor panel with on-board diagnostics
  • Engine hood and side panels
  • Engine, KOMATSU SAA6D107E-3, gross output of 170 HP, direct injection, water-cooled turbocharged, air-to-air aftercooler, cooled EGR, EPA Tier 4 Final and EU Stage 4 emissions certified
  • Engine secondary shutdown switch
  • Equalizer bar grease port
  • Fan, hydraulic driven, electronic control
  • Filler cap locks and cover locks
  • Fluid sampling ports
  • Foot rest, high mounted
  • Fuel pre-filter (10 micron) and fuel filter (2 micron)
  • Grease gun holder
  • High altitude arrangement (No fuel adjustment up to 2300 m)
  • Horn
  • Hydraulics for PAT dozer
  • Hydraulics for rear equipment
  • Intake pipe with precleaner
  • Komatsu Diesel Particulate Filter (KDPF)
  • KOMTRAX Level 5.0
  • Large high-resolution LCD color monitor
  • LED worklights
  • Lunch box holder
  • Marks and plates, English
  • Operator Identification System
  • Palm Command Control System (PCCS) with electronic control for travel control
  • Palm Command Control System (PCCS) with EPC for blade control
  • Power turn with counter rotation
  • Pullhook, front
  • Radiator guard grid
  • Radiator reserve tank
  • Real-time DEF monitoring
  • Rear-hinged radiator guard
  • Reverse travel speed presets
  • ROPS Cab
    Meets ISO 3471, SAE J/ISO 3471 ROPS standards, and ISO 3449 FOPS standard.
  • Seat belt, 3" retractable
  • Seat belt indicator
  • Seat, air suspension, fabric, heated, low back, headrest
  • Shovel holder
  • Starting motor, 24 V/5.5 kW
  • Selective Catalytic Reduction (SCR)
  • Self adjusting roller
  • Side by side rear mounted cooling package
  • Sprockets, bolt-on
  • Sprocket inner guard
  • Tie off points standard (ISO 14567)
  • Track roller guards, end section
  • Track shoe assembly (PLUS)
    —Sealed and lubricated
    D61EX-24: 24" single grouser shoe
    D61PX-24: 34" single grouser shoe
  • Triple labyrinth final drive shield design
  • Underguards, heavy duty
  • Engine
  • Transmission
  • Variable Geometry Turbocharger (VGT)
  • Water separator

* Dozer assembly and rear mounted equipment are not included in base machine standard equipment
** Cab meets ROPS and FOPS Level 2 standards

  • Accumulator for Electric Proportional Control (EPC)
  • Air cleaner, dry, double element type with caution lamp on monitor
  • Air conditioner (A/C)
  • Air inlet
  • Alternator, 24 V/90 A
  • Back-up alarm
  • Batteries, large capacity 24 V/200 Ah
  • Cab accessories
    — 12 V × 2 power supply
    — Cup holder
    — Rear view mirror
    — Rear view monitor system (1 camera)
    — Bluetooth/USB compatible radio with remote AUX plug (3.5 mm)
  • Crankcase guard and underguard
  • Decelerator/brake pedal (Single pedal)
  • Electronically controlled Hydrostatic Transmission (HST) with quick-shift and variable speed settings
  • Electronic monitor panel with on-board diagnostics
  • Engine hood and side panels
  • Engine, KOMATSU SAA6D107E-3, gross output of 127 kW, direct injection, water-cooled turbocharged, air-to-air aftercooler, cooled EGR, EPA Tier 4 Final and EU Stage 4 emissions certified
  • Engine secondary shutdown switch
  • Equalizer bar grease port
  • Fan, hydraulic driven, electronic control
  • Filler cap locks and cover locks
  • Fluid sampling ports
  • Foot rest, high mounted
  • Fuel pre-filter (10 micron) and fuel filter (2 micron)
  • Grease gun holder
  • High altitude arrangement (No fuel adjustment up to 2300 m)
  • Horn
  • Hydraulics for PAT dozer
  • Hydraulics for rear equipment
  • Intake pipe with precleaner
  • Komatsu Diesel Particulate Filter (KDPF)
  • KOMTRAX Level 5.0
  • Large high-resolution LCD color monitor
  • LED worklights
  • Lunch box holder
  • Marks and plates, English
  • Operator Identification System
  • Palm Command Control System (PCCS) with electronic control for travel control
  • Palm Command Control System (PCCS) with EPC for blade control
  • Power turn with counter rotation
  • Pullhook, front
  • Radiator guard grid
  • Radiator reserve tank
  • Real-time DEF monitoring
  • Rear-hinged radiator guard
  • Reverse travel speed presets
  • ROPS Cab
    Meets ISO 3471, SAE J/ISO 3471 ROPS standards, and ISO 3449 FOPS standard.
  • Seat belt, 76 mm retractable
  • Seat belt indicator
  • Seat, air suspension, fabric, heated, low back, headrest
  • Shovel holder
  • Starting motor, 24 V/5.5 kW
  • Selective Catalytic Reduction (SCR)
  • Self adjusting roller
  • Side by side rear mounted cooling package
  • Sprockets, bolt-on
  • Sprocket inner guard
  • Tie off points standard (ISO 14567)
  • Track roller guards, end section
  • Track shoe assembly (PLUS)
    —Sealed and lubricated
    D61EX-24: 600 mm single grouser shoe
    D61PX-24: 860 mm single grouser shoe
  • Triple labyrinth final drive shield design
  • Underguards, heavy duty
  • Engine
  • Transmission
  • Variable Geometry Turbocharger (VGT)
  • Water separator

* Dozer assembly and rear mounted equipment are not included in base machine standard equipment
** Cab meets ROPS and FOPS Level 2 standards

Metric Imperial (US)
  • Dozer assembly
  • Drawbar, long type
  • Track roller guard, full length

Multi-shank ripper

  • Weight: 3,874 lb
  • Beam length: 7'1"
  • Maximum lift above ground: 1'8"
  • Maximum digging depth: 2'2"
  • Dozer assembly
  • Drawbar, long type
  • Track roller guard, full length

Multi-shank ripper

  • Weight: 1757 kg
  • Beam length: 2170 mm
  • Maximum lift above ground: 560 mm
  • Maximum digging depth: 665 mm

Technology

Select continent

Telematics

Telematics data can drive results for business operations, but only when you can collect and analyze it efficiently. Get the insights that can benefit your bottom line.

technology-image

Infographic

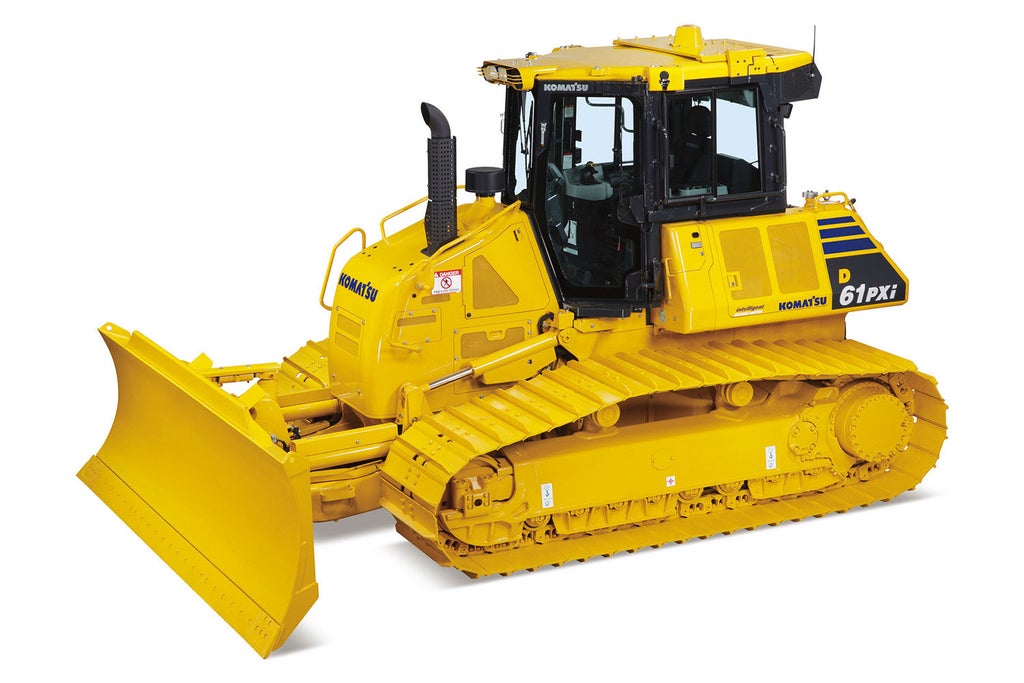

slant nose dozer, infographic, line of sight, low resolution for on-screen use, construction, layout, design, D61PXi-24, D61PXi D61PXi-24 Slant Nose Dozer Infographic
