Dozers
D155CX-8 K170
Large dozers
- Horsepower (HP) 354 HP @ 1,900 rpm
- Horsepower (kW) 264 kW @ 1 900 rpm
- Operating weight (kg) 54 870
- Operating weight (lbs) 120,970
- Lift capacity (kg) 77 272
- Lift capacity (lbs) 170,000
Designed with pipelayers in mind. Built with purpose.
Developed and designed in conjunction with pipeline companies, the D155CX-8 has a 170,000-pound lift capacity and traditional oval track design to deliver the stability and performance required on large pipeline jobs. The draw works package and boom options have been specifically designed for handling up to 36-inch steel pipe, making it ideal for gas and oil projects.
- Excellent stability with a traditional oval track undercarriage
- High performance and lift capacity
- 14% larger steering motor than the D155AX-8 base model dozer for improved maneuverability
Features and benefits

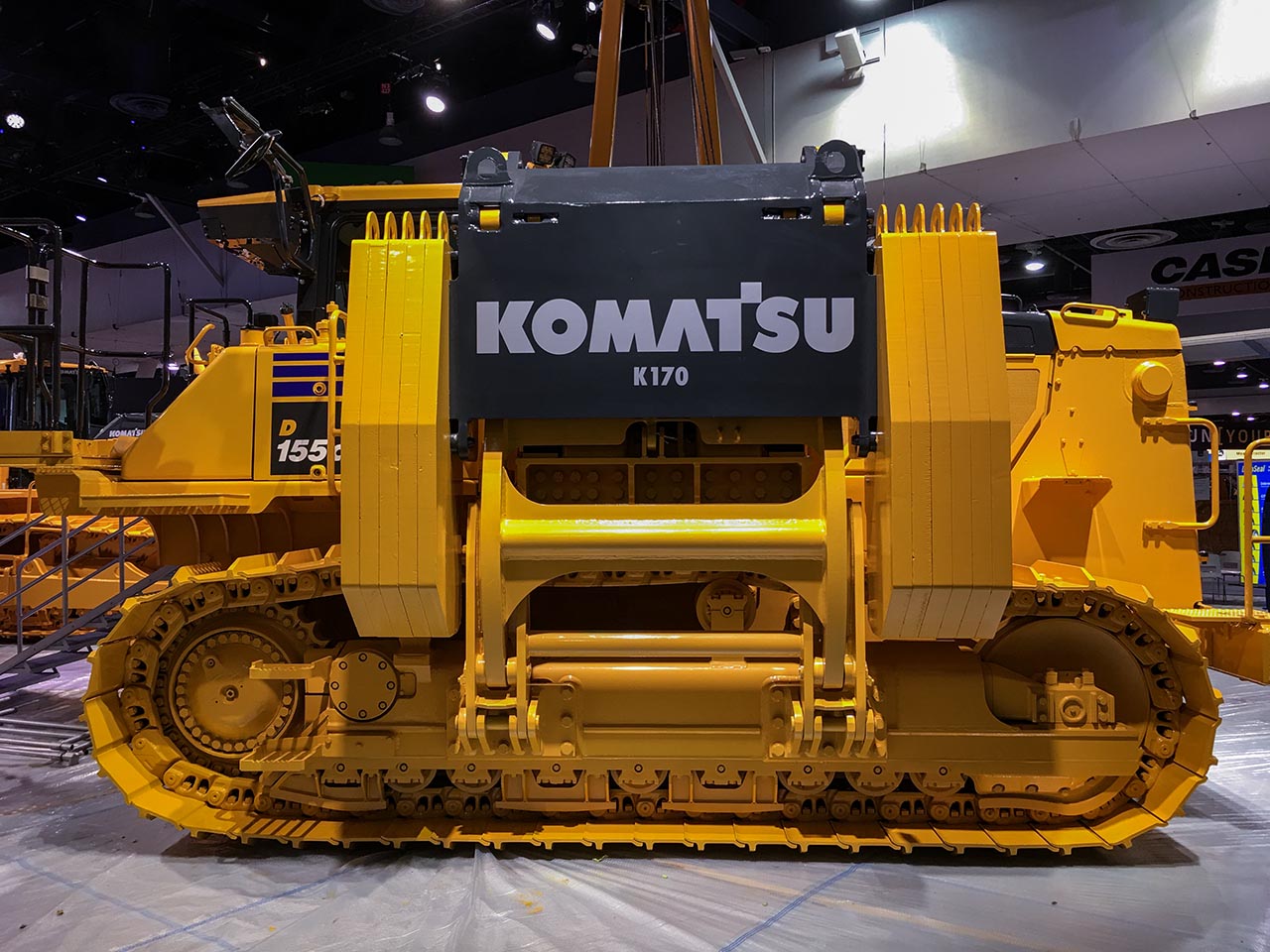

Longer track on ground
Extended track roller frames and wider track gauge over previous models provide a solid foundation for pipe lifting. Large 9-inch track pitch undercarriage is built for pipelayer applications.

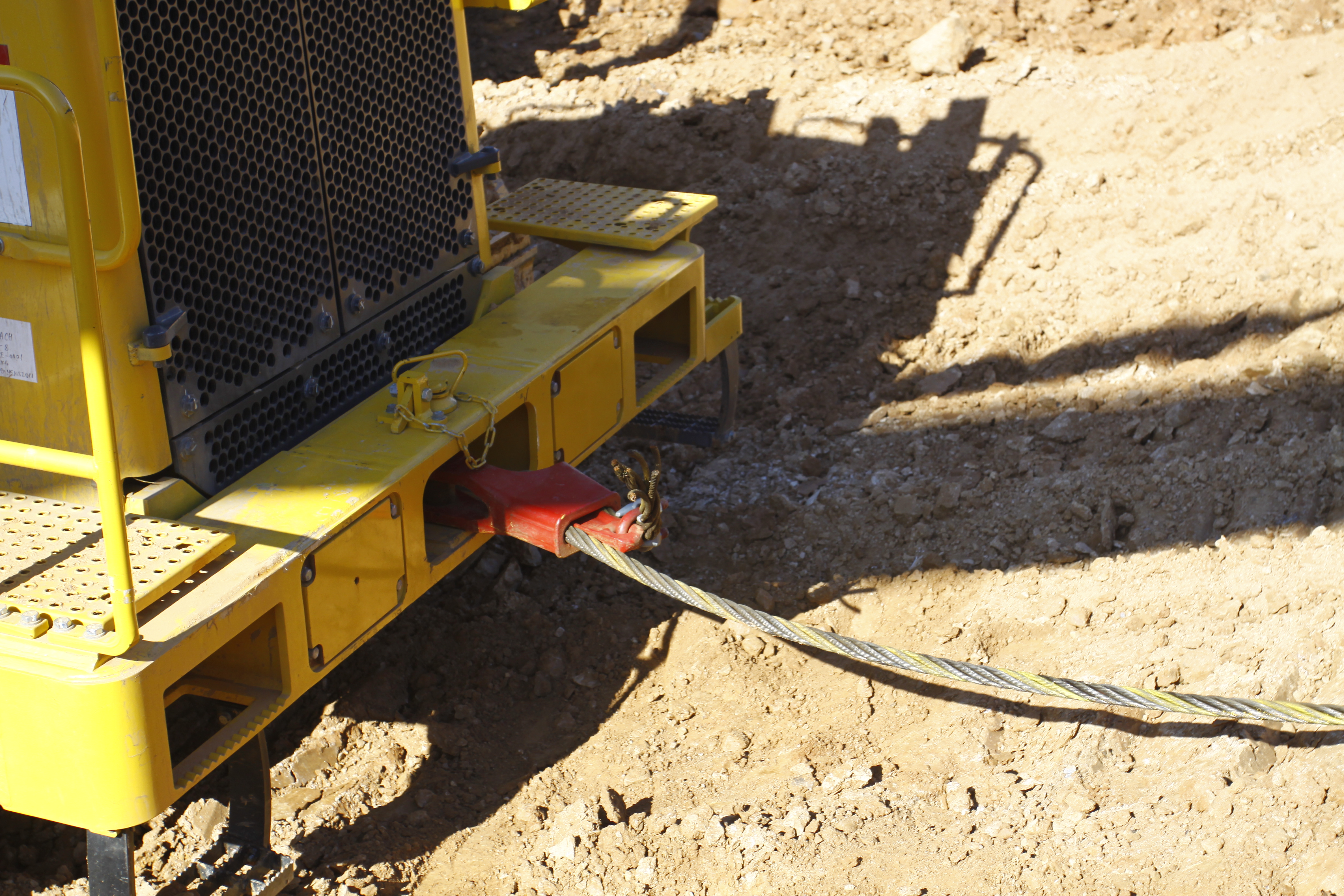

Purpose-built structures
Exceptional structural strength with a new front bumper and integrated towing pin designed to accept a standard winch rope terminator. An extended main frame with a non-oscillating hard bar has all drawworks mounts factory integrated.

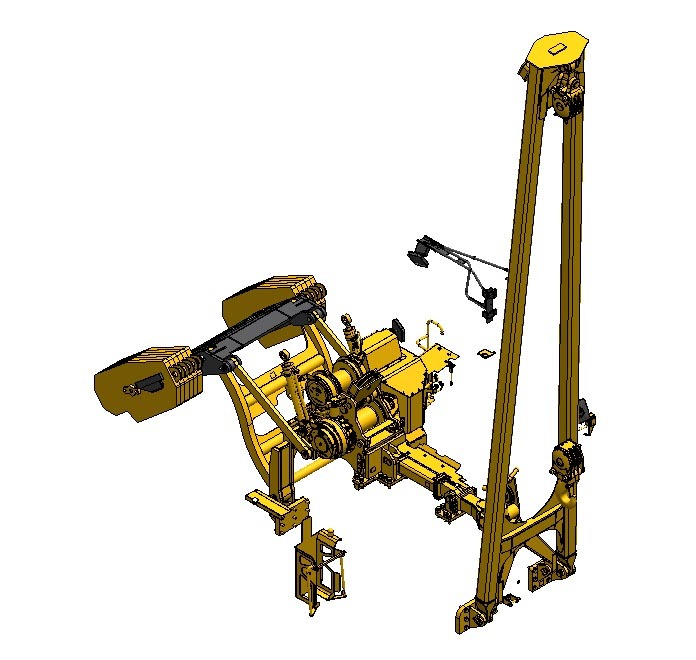

Drawworks package
The drawworks package uses custom-designed winches built to Komatsu specifications. Excellent hook speed, boom and counterweight control make precision pipework or handling large loads easy and efficient.

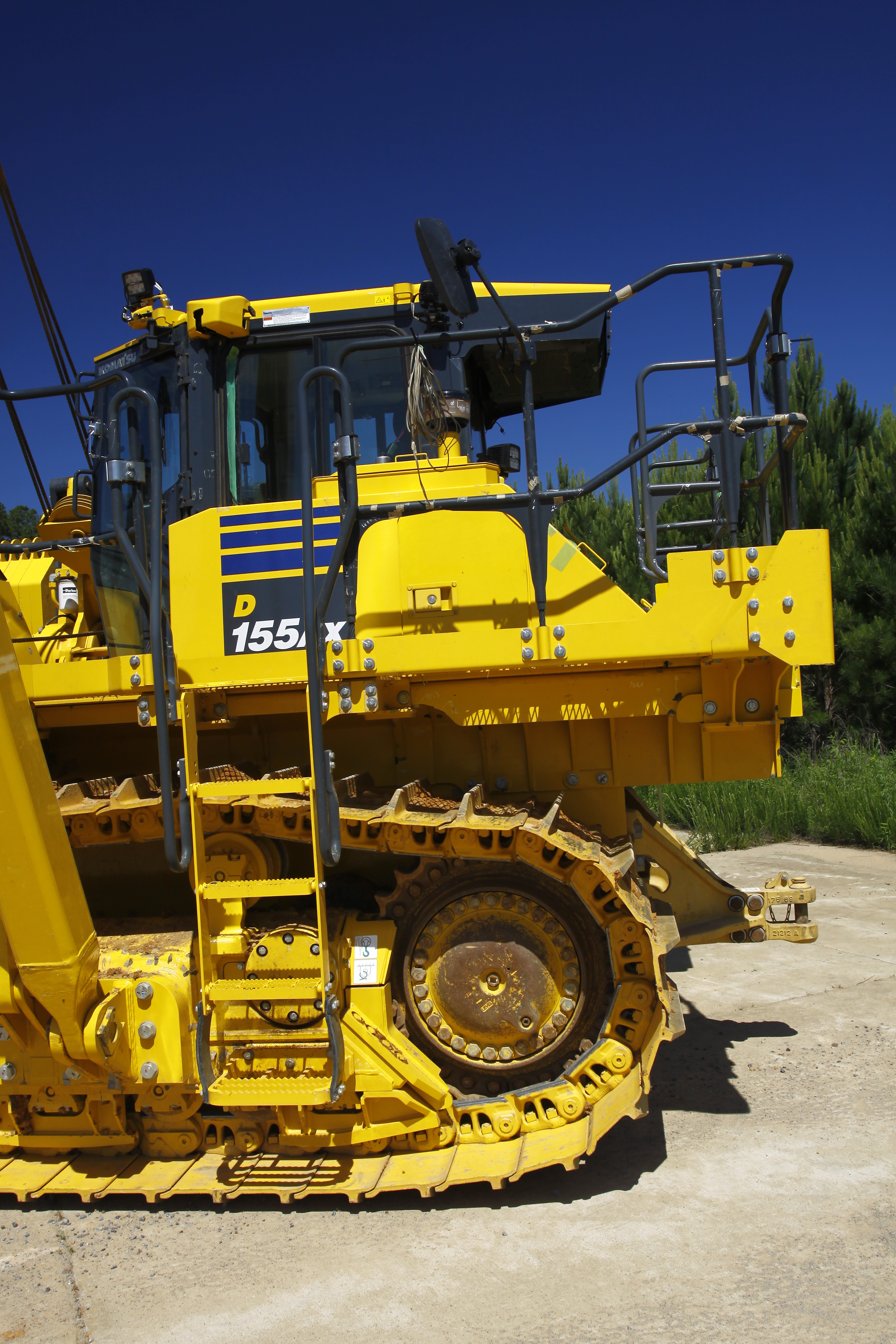

Easy machine access
Easily access your machine with integrated left/right front steps, left access ladder and left/right rear walkways.

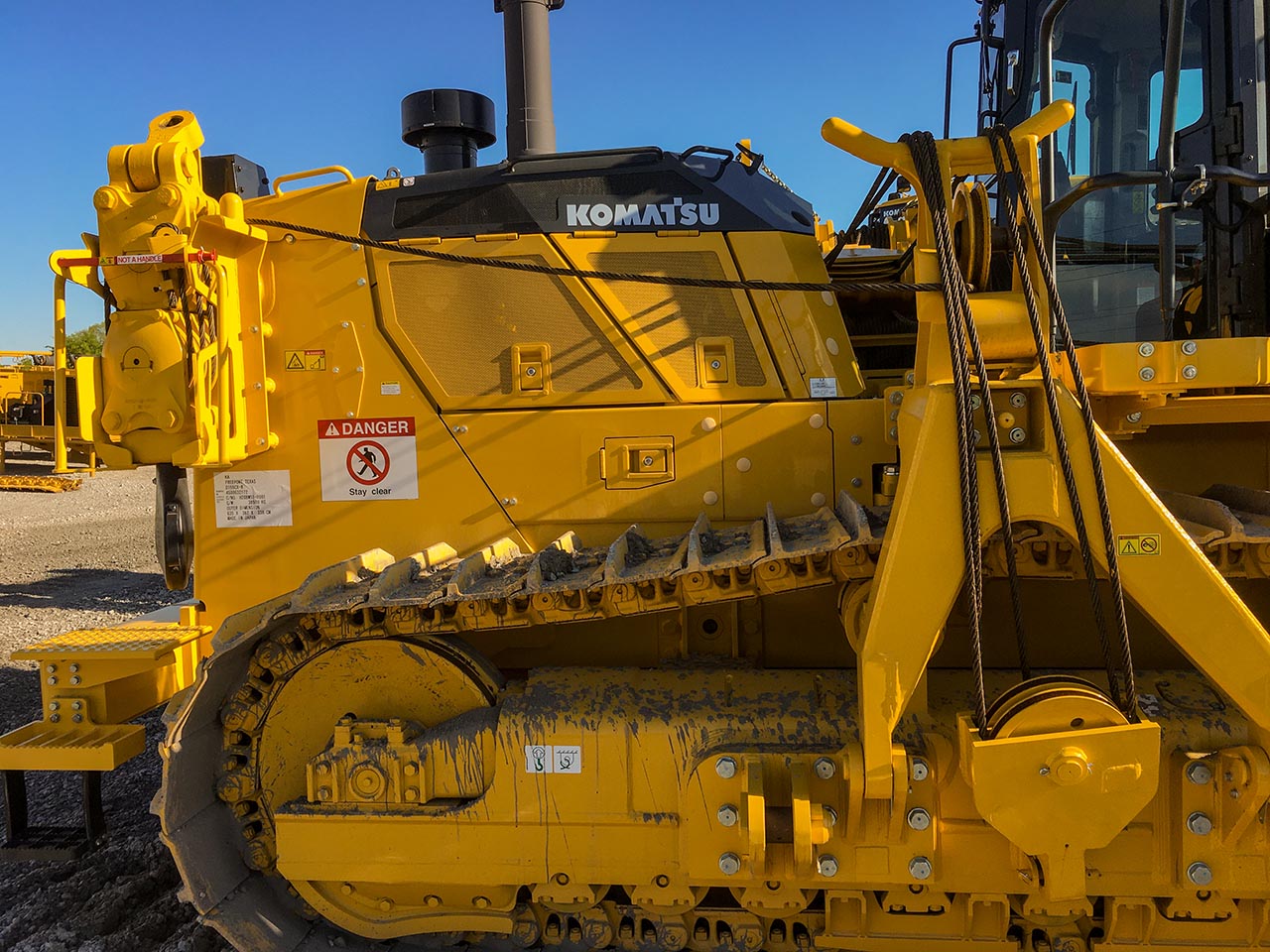

Transport storage bracket
Integrated load block transport storage bracket makes disassembly and assembly easier for shipping.

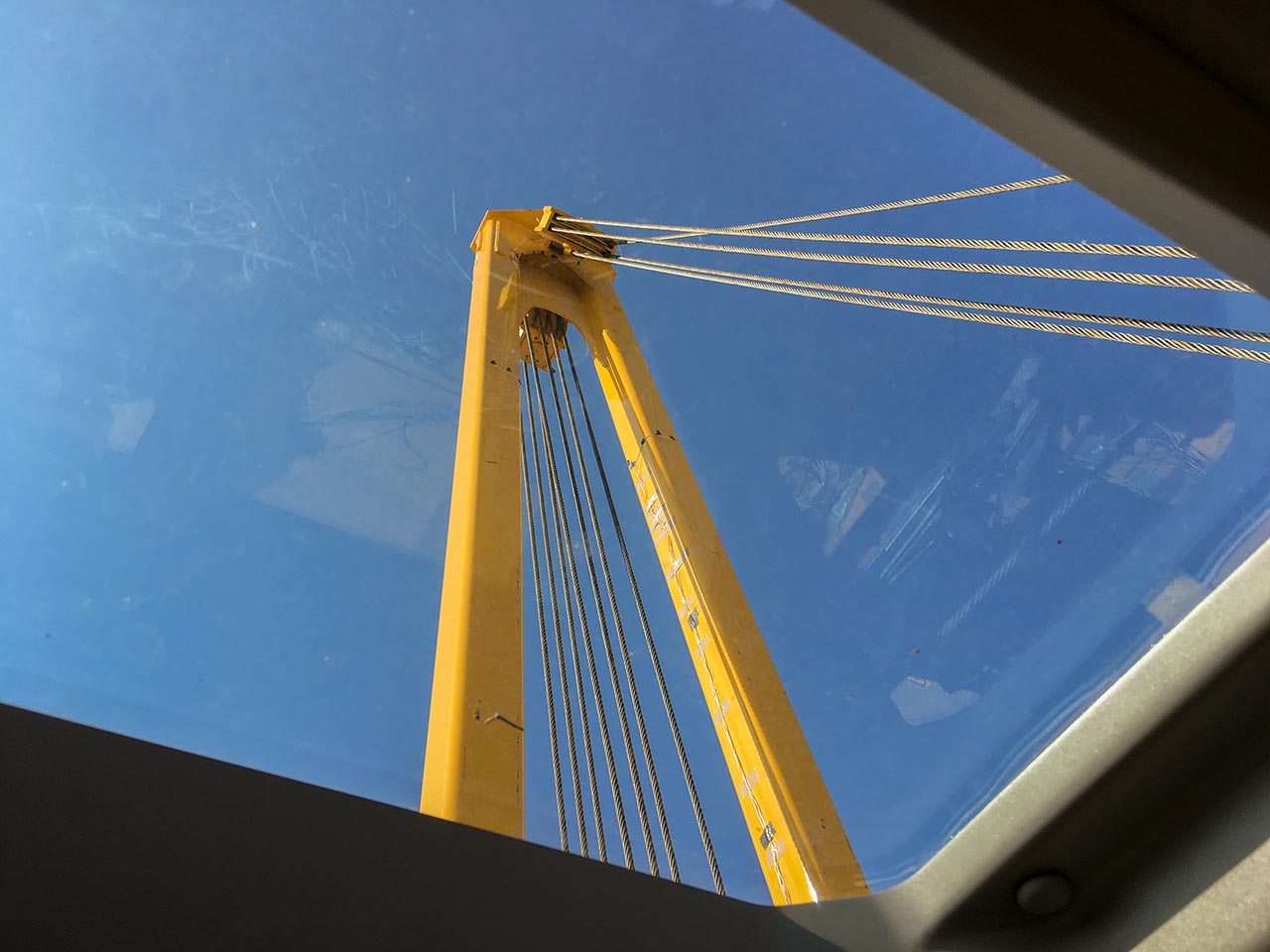

Integrated ROPS cab
Standard enclosed ROPS cab with auto climate control, large cab windows and skylight viewing area provides a comfortable operator environment in hot and cold climates.
Three-camera system
Improve your operator confidence with standard front, rear and right-side cameras that provide improved situational awareness around the machine.

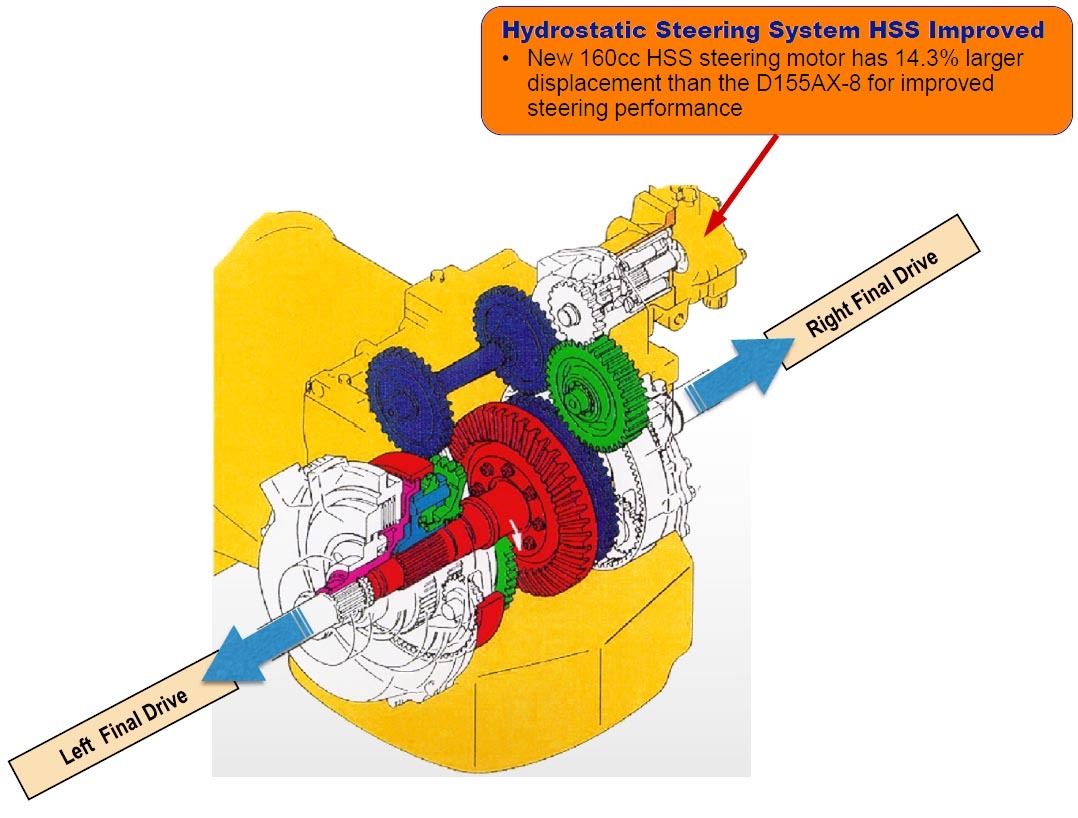

Hydrostatic steering system (HSS)
The Hydrostatic Steering System (HSS) with all-directional Palm Command Control System lever controls provide smooth, quick and powerful steering control in various ground conditions. A new 14% larger steering motor than the D155AX-8 base model improves steering power and maneuverability.

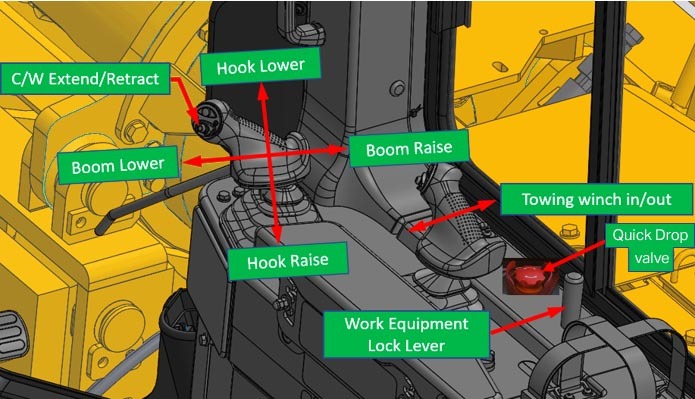

Precision single joystick drawworks control
A single joystick for control of load line, boom and counterweight provides your operator precise load control.

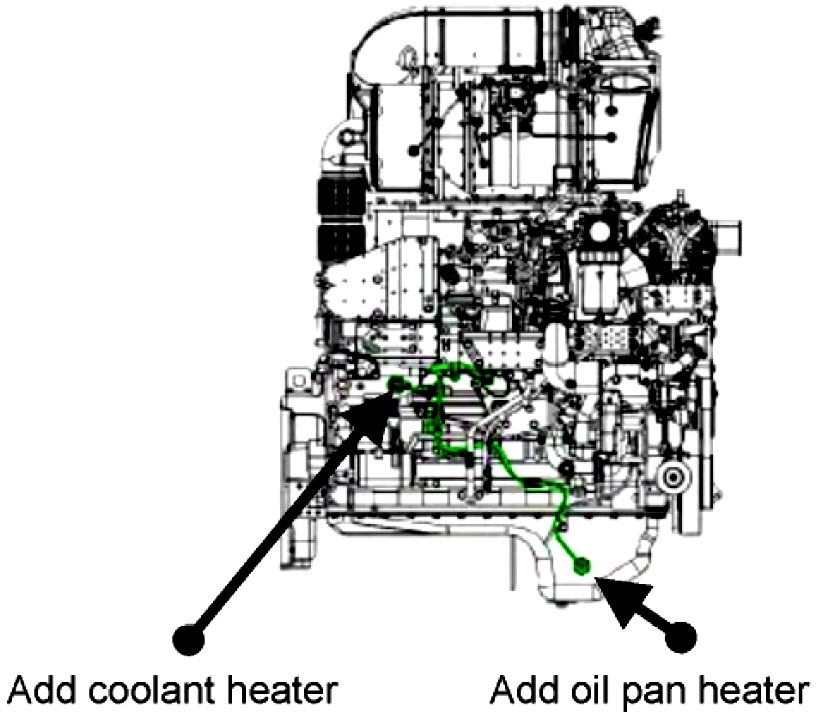

Cold weather operation
Designed for cold weather operation with large capacity batteries, engine air intake heater grid, and provisions to easily install engine oil and coolant heaters.

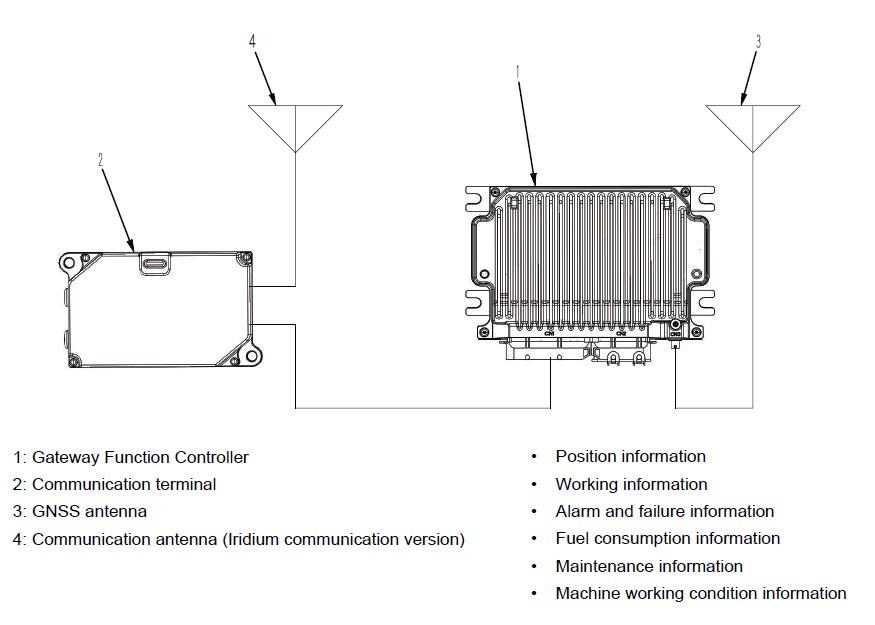

Iridium Satellite Communications
High quality satellite data communications for Komtrax pipelayer telematics in remote areas where cellular communication network coverage is poor or not available. Komtrax data is provided free for life of the machine.

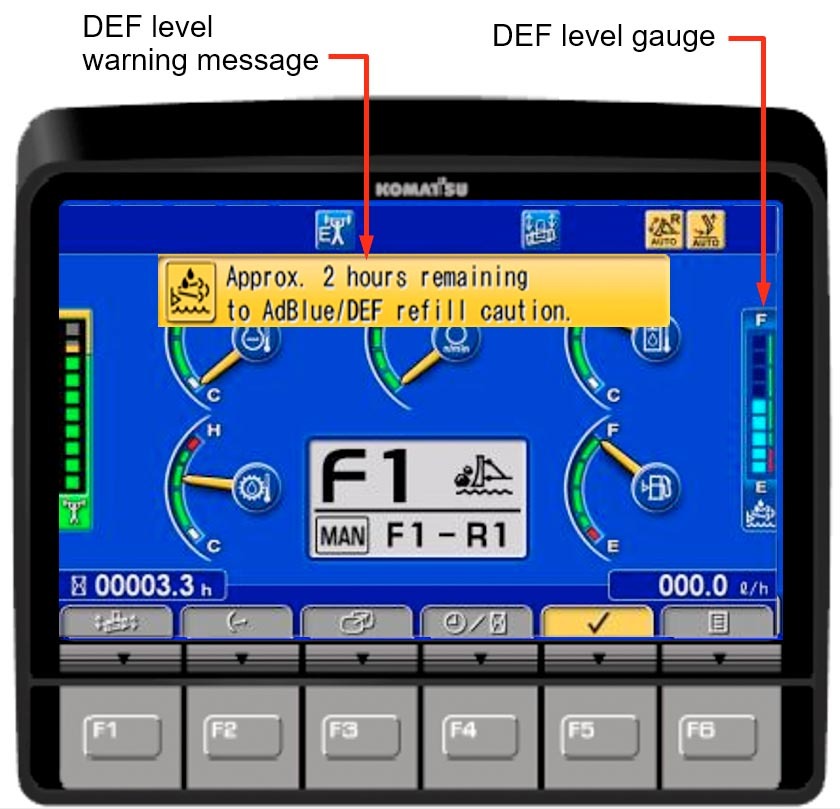

Advanced diagnostic system
Continuously monitor your machines operation and vital systems to identify machine issues, assist with troubleshooting, and minimize downtime.
Specifications
- Full specs
- Standard equipment
- Optional equipment
Metric
Imperial (US)
Expand all
- Boom length standard (ft): 24
- Boom length optional (ft): 28
- Boom parting lines: 5
- Hook line partings: 6
- Hook low speed raise (m/min): 8.5 - 13.0
- Hook low speed raise (FPM): 28 - 42.8
- Hook high speed raise (FPM): 63.3 - 76.6
- Hook high speed raise (m/min): 19.3 - 23.3
- Hook free fall: Yes
- Boom winch drum diameter (in): 10
- Boom winch drum diameter (mm): 254
- Boom winch drum width (in): 11
- Boom winch drum width (mm): 279
- Boom winch drum cable capacity (ft): 247
- Boom winch drum cable capacity (m): 75.3
- Boom winch drum rope diamter (ft): 0.75
- Boom winch drum rope diamter (mm): 19
- Hook winch drum rope diameter (in): 0.75
- Hook winch drum diameter (mm): 254
- Hook winch drum width (mm): 432
- Hook winch drum width (in): 17
- Hook winch drum cable capacity (m): 152
- Hook winch drum cable capacity (ft): 499
- Hook winch drum diameter (in): 10
- Hook winch drum cable capacity (mm): 19
- Counterweight total weight (kg): 6 070
- Counterweight total weight (lbs): 13,380
- Counterweight section quantity: 11
- Weight per section: 11 @ 552 kg
- Weight per section (lbs): 11 @ 1,217 lbs.
- Boom 24' standard (lbs): 3,781
- Boom 28' optional (lbs): 4,249
- Boom 7.3 m standard (kg): 1 715
- Boom 8.5 m optional (kg): 1 927
- Counterweight frame (lbs): 4,146
- Counterweight frame (kg): 1 881
- Counterweight yoke (lbs): 1,400
- Counterweight yoke (kg): 636
- Boom block and load block (lbs): 1,556
- Boom block and load block (kg): 706
- Suspension: Fixed roller, non-oscillating track frame
- Track roller frame: Monocoque, high-tensile strength steel construction
- Type of shoes (standard): Moderate service with clipped grouser
- Number of track rollers (each side): 9
- Number of shoes (each side): 48
- Number of carrier rollers (each side): 2
- Track type: Sealed and lubricated
- Grouser height (in): 3.1
- Grouser height (mm): 80
- Shoe width (standard)(in): 32
- Shoe width (standard)(mm): 810
- Ground contact area (cm^2): 71 000
- Ground contact area (ft2): 76.3
- Ground pressure (with standard shoe)(ISO 16754)(psi): 11
- Ground pressure (with standard shoe)(ISO 16754)(kpa): 77
- Ground pressure (with standard shoe)(ISO 16754)(kg/cm^2): .77
- Track gauge (ft): 7 ft. 10 1/2 in
- Track gauge (mm): 2 400
- Length of track on ground (mm): 3 925
- Length of track on ground (ft): 144 ft. 10 in
- Hydraulic system features: Closed-center load sensing system (CLSS) designed for precise and responsive control, and for efficient simultaneous operation.
- Hydraulic control unit (U.S. gal/min): All spool control valves externally mounted beside the hydraulic tank. Variable piston pump with capacity (discharge flow) of 85.9 US gal for steering and 47.6 US gal for implement at rated engine rpm.
- Hydraulic control unit (ltr/min): All spool control valves externally mounted beside the hydraulic tank. Variable piston pump with capacity (discharge flow) of 325 L/min for steering and 180 L/min for implement at rated engine rpm.
- Relief valve setting (kg/cm^2): 280 - 390
- Relief valve setting (psi): 3,980 - 5,550
- Relief valve setting (MPa): 27.5 - 38.2
- Engine Model: Komatsu SAA6D140E-7**
- Dozers type: 4-cycle, water-cooled, direct injection
- Aspiration: Komatsu Variable Geometry Turbocharged, air-to-air aftercooled, cooled EGR
- Number of cylinders: 6
- Bore x stroke (in): 5.51 x 6.50
- Bore x stroke (mm): 140 x 165
- Piston displacement (L): 15.24
- Piston displacement (in^3): 930
- Governor: Mid-range, electronic
- Footnote: *EPA Tier 4 Final emissions certified
-
Horsepower
- SAEJ1995 - Gross (HP): 360
- SAEJ1995 - Gross (kW): 268
- ISO 9249 / SAE J1349 - Net (HP): 354
- ISO 9249 / SAE J1349 - Gross (kW): 264
- Rated RPM: 1,900
- Fan drive type: Hydraulic
-
Lubrication system
- Filter: Full-flow
- Method: Gear pump, force lubrication
- Transmission features: Komatsu's 3-speed TORQFLOW transmission consists of a water-cooled, 3-element, 1-stage, 1-phase, torque converter, and a planetary gear, multiple-disc clutch transmission which is hydraulically actuated and force-lubricated for optimum heat dissipation. Equipped with gearshift lock lever and neutral safety switch.
-
Reverse
- 1st torqflow reverse (kph): 4.6
- 1st torqflow reverse (mph): 2.9
- 2nd torqflow reverse (mph): 4.2
- 2nd torqflow reverse (kph): 6.8
- 3rd torqflow reverse (kph): 14
- 3rd torqflow reverse (mph): 8.7
-
Forward
- 1st torqflow forward (mph): 2.4
- 1st torqflow forward (kph): 3.8
- 2nd torqflow forward (mph): 3.5
- 2nd torqflow forward (kph): 5.6
- 3rd torqflow forward (mph): 7.2
- 3rd torqflow forward (kph): 11.6
- Fuel tank (L): 625
- Fuel tank (US gal): 165
- Diesel Exhaust Fluid (DEF) tank (US gal): 10.3
- Diesel Exhaust Fluid (DEF) tank (L): 39
- Coolant (US gal): 27.5
- Coolant (L): 104
- Engine oil (US gal): 9.8
- Engine oil (L): 37
- Damper case (L): 1.5
- Damper case (US gal): 0.4
- Torque converter, transmission, bevel gear, and steering system (L): 90
- Torque converter, transmission, bevel gear, and steering system (US gal): 23.8
- Final drive (US gal): 8.2
- Final drive (L): 31
- Hydraulic tank (L): 95
- Hydraulic tank (US gal): 25.1
- Boom winch case (gearbox)(L): 23.8
- Boom winch case (gearbox)(US gal): 6.3
- Hook winch case (gearbox)(US gal): 4.1
- Hook winch case (gearbox)(L): 15.5
- Steering system features: PCCS lever controls for all directional movements. Pushing the PCCS lever forward results in forward machine travel, while pulling it rearward reverses the machine. Simply tilt the PCCS lever to the left to make a left turn. Tilt it to the right for a right turn. Hydrostatic steering system (HSS) is powered by steering planetary units and an independent hydraulic pump and motor. Counter-rotation turns are also available. Wet, multiple-disc, pedal-controlled service brakes are spring-actuated and hydraulically released. Gearshift lock lever also applies parking brakes.
- Final drive features: Double-reduction, spur and planetary final drives increase tractive effort. Segmented sprockets are bolt-on for easy in-the-field replacement.
Metric
Imperial (US)
- Air cleaner, double element with dust indicator
- Alternator, 140 ampere/24V
- Backup alarm
- Batteries, 200 Ah/2 x 12V
- Battery disconnect switch with lockout
- Boom 24’ long
- Boom and C'wt limit switches
- Bumper, front with pull device
- Color monitor, LCD
- Counterweight, segmented
- Decelerator pedal
- Draw works with 24' boom, hook, blocks, cables, extendable counterweight
- Ecology drains
- Engine oil
- Coolant
- Hydraulic oil
- Fuel tank
- Engine hood
- Engine idle auto shutdown with adjustable timer
- Engine intake centrifugal precleaner
- Engine, gull-wing side covers
- Engine shutdown secondary switch
- Exhaust pipe with raincap
- Extended length fixed roller track frame, wide track gauge
- Fast fuel provision
- Fenders
- Front pull hook
- Fuel pre-filter and primary filter
- Fuel priming pump, electric
- Grid heater starting aid in cold weather
- Hard bar, integral non-oscillating
- High mount foot rests
- Horn, warning
- Hydraulic driven radiator cooling fan with manual reverse clean mode and cold weather reverse operating mode
- Hydraulics for draw works and counterweight
- Hydraulics for towing winch (high flow)
- KOMTRAX® Level 5, Iridium satelite
- Komatsu Diesel Particulate Filter (KDPF)
- Variable Geometry Turbocharger (VGT)
- Komatsu Selective Catalytic Reduction (SCR)
- Load Moment Indicator with boom angle indicator and Anti-2-block alarm
- Locks, filler caps and covers
- Oil pressure check ports and covers
- Oil pressure check ports for power train
- PM service connector
- Provision for Load Moment Indicator
- Radiator mask, double door, heavy-duty, hinged perforated
- Radiator reserve tank
- Rear cover
- Restraint harness tie-off points
- ROPS cab
- Air conditioner/heater/defroster
- Autoclimate control
- Pressurized with air precleaner
- Condenser remote mounted
- Skylight in roof
- Emergency exit
- Cab accessories
- 12V power supply (2 ports)
- Cup holder
- Rearview mirro
- Rear view monitoring (1 camera)
- Forward view monitoring (1 camera)
- Right view monitoring (1 camera)
- AM/FM Radio w/remote AUX plug (3.5 mm)
- Lunch box holder
- Work lights, 10 LED type
- 2 front, hood mounted
- 2 front, cab mounted
- 2 side, cab mounted
- 2 rear, fender mounted
- 2 rear, cab mounted
- Monitor with 7" color display
- Diagnostics capability
- Performance records
- Service records
- Air conditioner/heater/defroster
- Seat, air suspension, fabric, heated, low back, rotates 12.5° to right, headrest
- Seat belt, 3", retractable
- Seat belt indicator
- Sealed electrical connectors
- Starting motor, 11.0 kW/24V
- Starting aid, air intake heater grid
- Steering system
- Hydrostatic Steering System (HSS)
- High capacity steering motor
- Hydrostatic Steering System (HSS)
- Storage bracket for blocks during transport
- Torque converter
- Track roller guards, end and center guiding sections
- Track shoe assembly
- 9" pitch sealed and lubricated
- Master links
- 32" clipped moderate service
- Transmission, 3-speed manual powershift
- Underguards, heavy duty
- Hinged belly pans
- Walkway with steps and handrails
- Water separator, fuel
- Wide core cooling package, 6 fins per inch spacing
**Cab meets:
ROPS standard ISO 3471:2008
FOPS Level 2 standard ISO 3449:2005
***Accumulator meets: CRN OH 5729.1
- Air cleaner, double element with dust indicator
- Alternator, 140 ampere/24V
- Backup alarm
- Batteries, 200 Ah/2 x 12V
- Battery disconnect switch with lockout
- Boom 7.3m long
- Boom and C'wt limit switches
- Bumper, front with pull device
- Color monitor, LCD
- Counterweight, segmented
- Decelerator pedal
- Draw works with 7.3m boom, hook, blocks, cables, extendable counterweight
- Ecology drains
- Engine oil
- Coolant
- Hydraulic oil
- Fuel tank
- Engine hood
- Engine idle auto shutdown with adjustable timer
- Engine intake centrifugal precleaner
- Engine, gull-wing side covers
- Engine shutdown secondary switch
- Exhaust pipe with raincap
- Extended length fixed roller track frame, wide track gauge
- Fast fuel provision
- Fenders
- Front pull hook
- Fuel pre-filter and primary filter
- Fuel priming pump, electric
- Grid heater starting aid in cold weather
- Hard bar, integral non-oscillating
- High mount foot rests
- Horn, warning
- Hydraulic driven radiator cooling fan with manual reverse clean mode and cold weather reverse operating mode
- Hydraulics for draw works and counterweight
- Hydraulics for towing winch (high flow)
- KOMTRAX® Level 5, Iridium satelite
- Komatsu Diesel Particulate Filter (KDPF)
- Variable Geometry Turbocharger (VGT)
- Komatsu Selective Catalytic Reduction (SCR)
- Load Moment Indicator with boom angle indicator and Anti-2-block alarm
- Locks, filler caps and covers
- Oil pressure check ports and covers
- Oil pressure check ports for power train
- PM service connector
- Provision for Load Moment Indicator
- Radiator mask, double door, heavy-duty, hinged perforated
- Radiator reserve tank
- Rear cover
- Restraint harness tie-off points
- ROPS cab
- Air conditioner/heater/defroster
- Autoclimate control
- Pressurized with air precleaner
- Condenser remote mounted
- Skylight in roof
- Emergency exit
- Cab accessories
- 12V power supply (2 ports)
- Cup holder
- Rearview mirro
- Rear view monitoring (1 camera)
- Forward view monitoring (1 camera)
- Right view monitoring (1 camera)
- AM/FM Radio w/remote AUX plug (3.5 mm)
- Lunch box holder
- Work lights, 10 LED type
- 2 front, hood mounted
- 2 front, cab mounted
- 2 side, cab mounted
- 2 rear, fender mounted
- 2 rear, cab mounted
- Monitor with 7" color display
- Diagnostics capability
- Performance records
- Service records
- Air conditioner/heater/defroster
- Seat, air suspension, fabric, heated, low back, rotates 12.5° to right, headrest
- Seat belt, 76 mm, retractable
- Seat belt indicator
- Sealed electrical connectors
- Starting motor, 11.0 kW/24V
- Starting aid, air intake heater grid
- Steering system
- Hydrostatic Steering System (HSS)
- High capacity steering motor
- Hydrostatic Steering System (HSS)
- Storage bracket for blocks during transport
- Torque converter
- Track roller guards, end and center guiding sections
- Track shoe assembly
- 228 mm pitch sealed and lubricated
- Master links
- 810 mm clipped moderate service
- Transmission, 3-speed manual powershift
- Underguards, heavy duty
- Hinged belly pans
- Walkway with steps and handrails
- Water separator, fuel
- Wide core cooling package, 6 fins per inch spacing
**Cab meets:
ROPS standard ISO 3471:2008
FOPS Level 2 standard ISO 3449:2005
***Accumulator meets: CRN OH 5729.1
Metric
Imperial (US)
- Rear Attachment
- HD long drawbar 528 lbs. - 28' boom
- Includes longer hook cable
- Rear Attachment
- HD long drawbar 240 kg - 8.5 m boom
- Includes longer hook cable
Support you can count on
Technology that works as hard as you do
- Telematics
Select continent
Related products
Find what works for you
