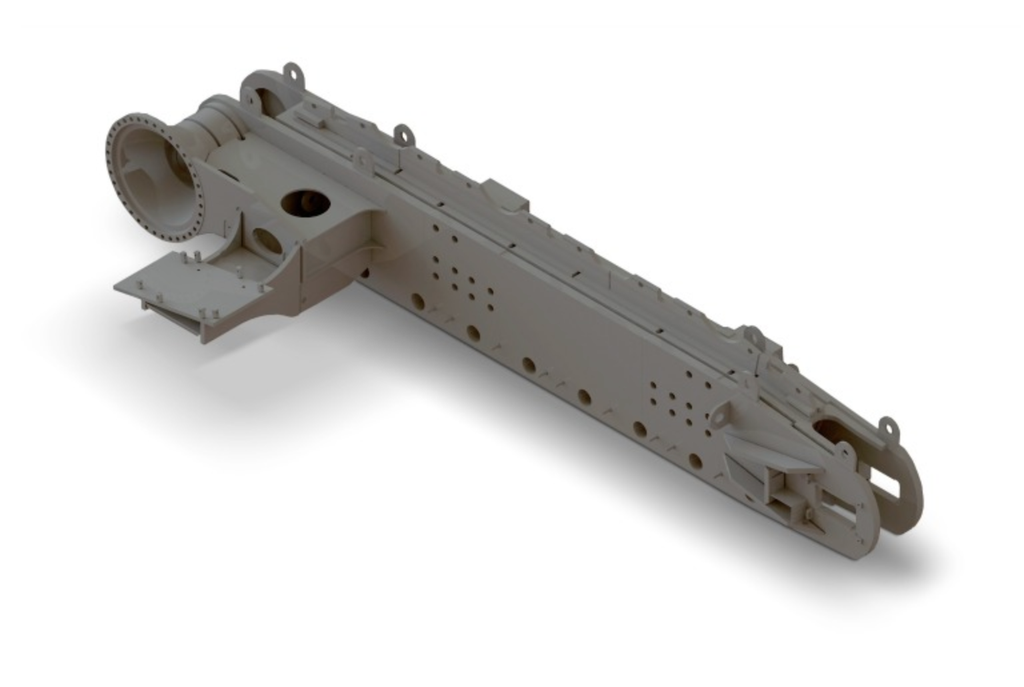

Crawler frame upgrade

Designed with enhanced inner and outer wall plate thickness

The OEM side frame-compatible crawler frame upgrade has been manufactured to help extend your shovel’s structural life. Finite Element Analysis (FEA) and strain gauge studies helped drive design changes, resulting in an enhanced structural life of up to 60,000 hours.

Features that help extend structural life:

  • Enhanced inner and outer wall plate thickness
  • Continuous welded guide rail eliminates cross welds
  • More clearance between frame and crawler shoes

Compatibility features:

  • Interchangeable with OEM side frames
  • Designed to accept different mounting and transmission configurations
  • Can be fitted with P&H final drive shaft upgrade
