Forestry

931XC-3

Wheeled harvesters

  • Weight (kg) From 21 900
  • Weight (lbs) From 48,281
  • Horsepower (HP) 255 net HP @ 1,850 rpm
  • Horsepower (kW DIN) 190 kW DIN @ 1 850 rpm
  • Tractive force (kN) 200
  • Tractive force (lbf) 44,962

Purchase options

Contact a sales representative

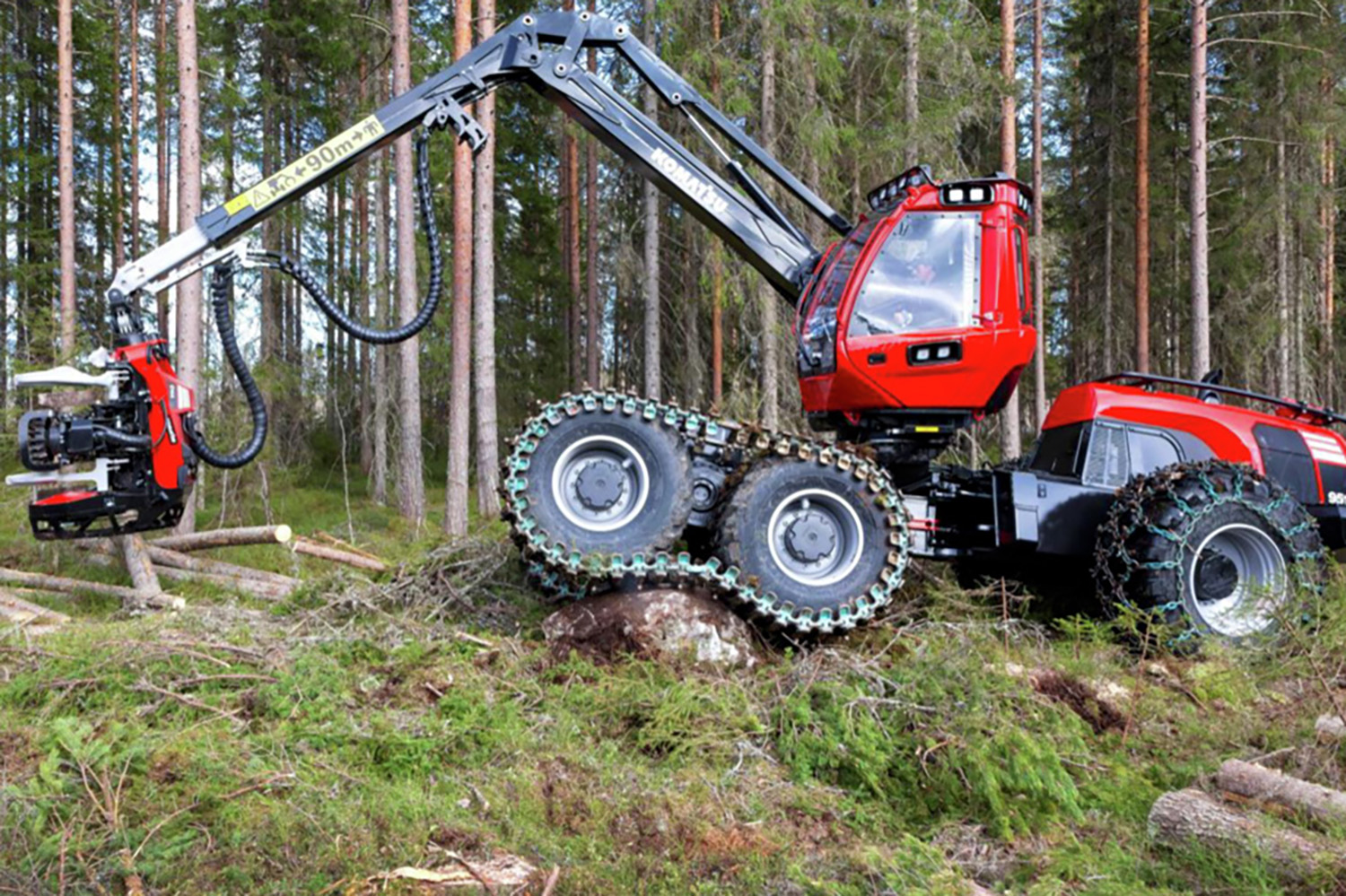

Low ground pressure and great stability - regardless of the terrain

An effective and versatile harvester for anyone working in steep, rugged terrain. The eight-wheel design offers additional stability as well as lower ground pressure, leaving less of a mark on soft ground.

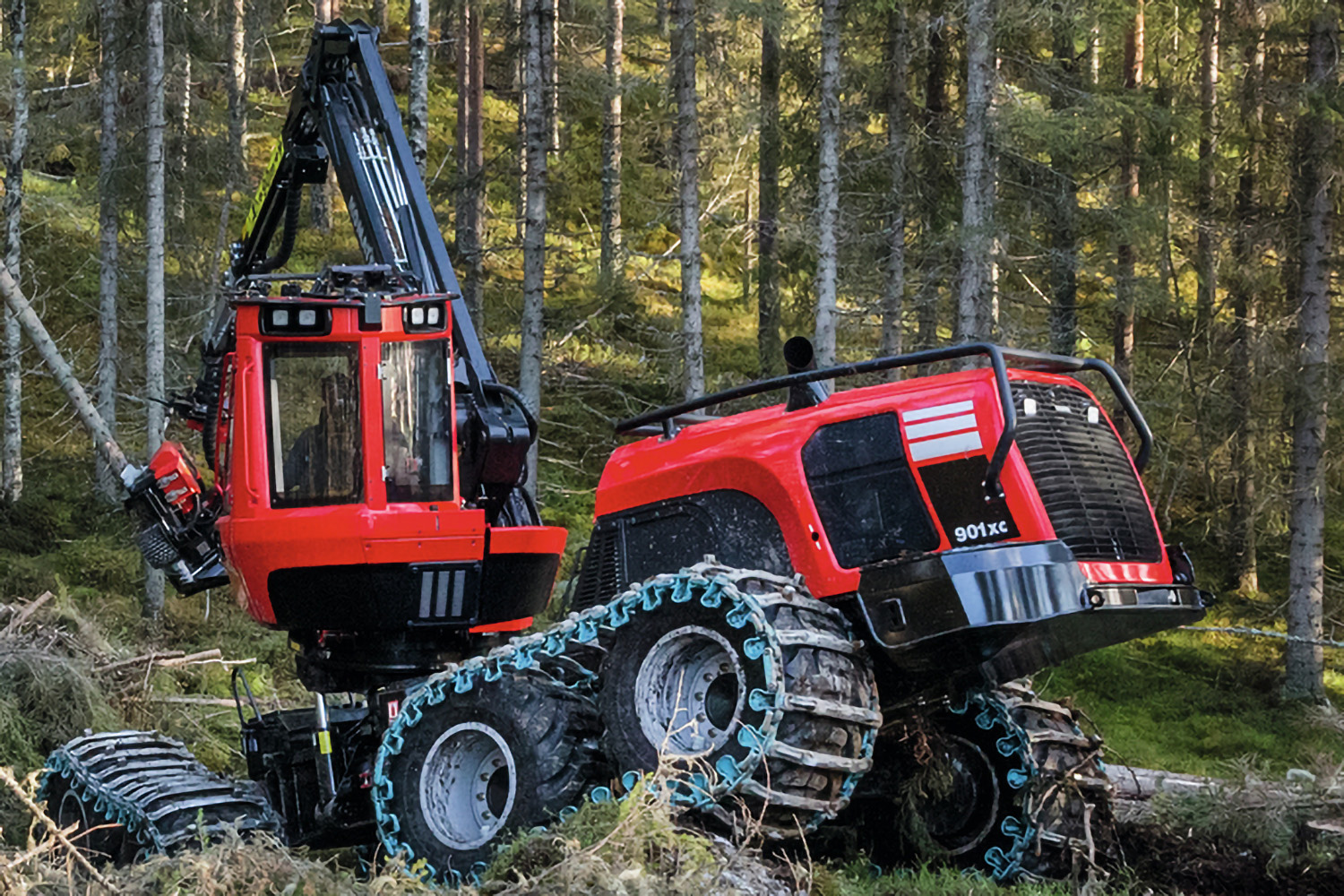

  • 8WD design for high stability and great manoeuvrability in difficult terrain
  • 230H crane with 8.7 / 10 / 11 m reach
  • Choose from our range of options to customise your machine and make your working day even more comfortable and productive

Resources


Specifications

Metric Imperial (US)
Expand all

  • Model and reach (ft): 28 ft. 7 in, 32 ft. 10 in or 36 ft.
  • Model and reach (m): 8.71 m, 10.01 m or 10.97 m
  • Gross slewing torque (lbf-ft): 39828
  • Gross slewing torque (Nm): 54

  • Width (ft): 9 ft. 1 in
  • Width (mm): 2 776
  • Length, total (mm): 8 015
  • Length, total (ft): 26 ft. 4 in
  • Length, front axle to middle joint (mm): 1 930
  • Length, front axle to middle joint (ft): 6 ft. 4 in
  • Length, middle joint to rear axle (ft): 7 ft. 1 in
  • Length, middle joint to rear axle (mm): 2 150
  • Transport height with tire compression (mm): 3 945
  • Transport height with tire compression (ft): 12 ft. 11 in
  • Ground clearance (ft): 2 ft. 4 in
  • Ground clearance (mm): 705
  • Note on dimensions: Stated dimensions are nominal and may vary slightly depending on production tolerances and choice of equipment.

  • Voltage: 24 V
  • Battery capacity: 2 x 180 Ah
  • Generator: 2 x 100 A

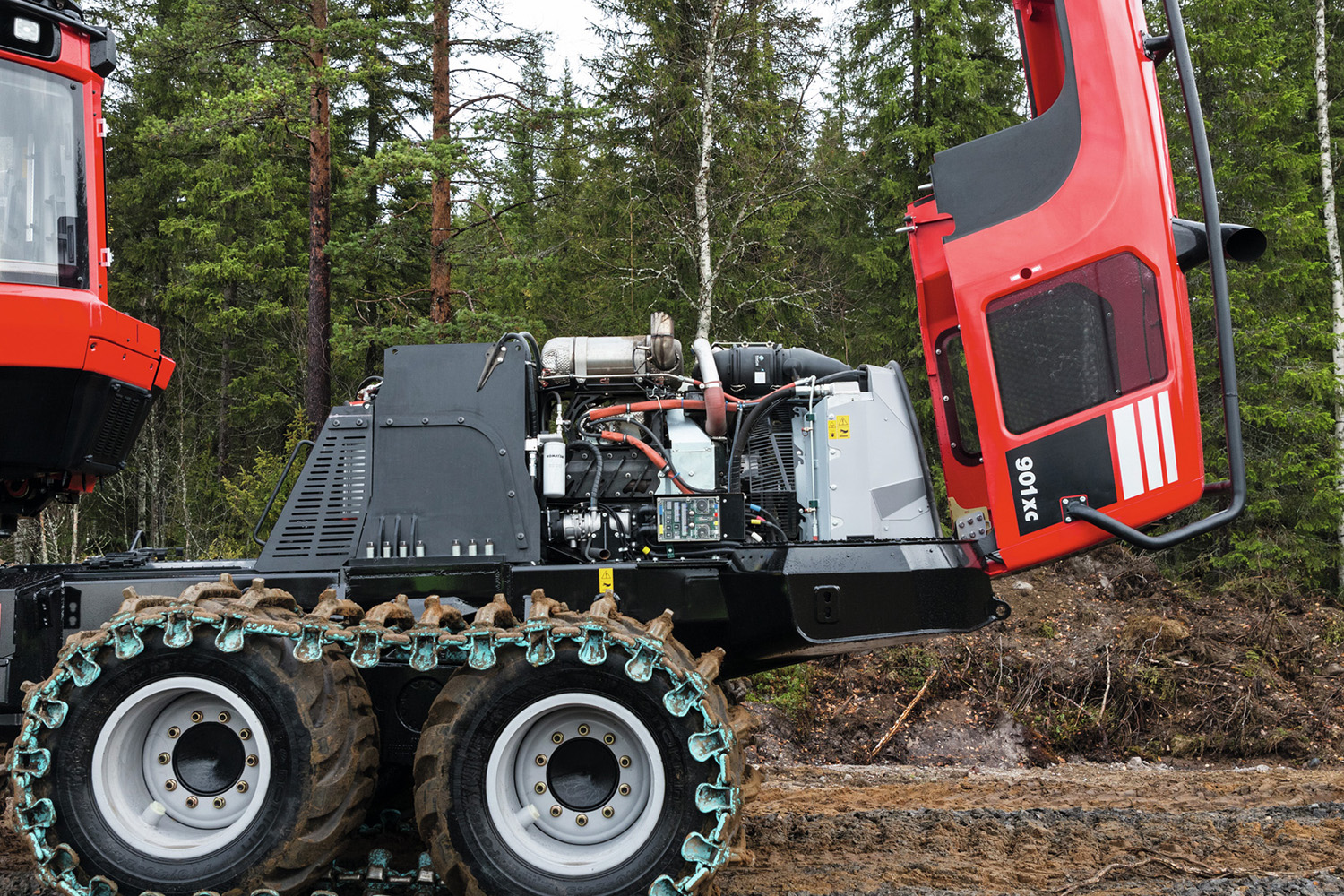

  • Type, Europe and North America: 74 AWF, 6-cylinder diesel engine with turbo and intercooler. EPA Tier 4 Final and EU Stage 4.
  • Stroke volume (US gal): 1.95
  • Stroke volume (L): 7.4
  • Power (kW): 190 kW DIN @ 1 850 rpm
  • Power (HP): 255 net HP @ 1,850 rpm
  • Torque (Nm): 1,130 Nm at 1,500 rpm
  • Torque (ft-lbs): 833 ft.-lbs. at 1,500 rpm
  • Fuel tank (US gal): 127
  • Fuel tank (L): 480

  • Notes: The specifications describe possible equipment, not which equipment is standard or optional. Standard and optional equipment varies between countries. Your sales representative has an up-to-date list of what is included. Weights are based on the equipment specified in the basic specification. Specifications and designs are subject to alteration without prior notice.

  • Flow (L/min): 528 at 1 600 rpm
  • Flow (gpm): 139 at 1,600 rpm
  • System pressure (bar): 280
  • System pressure (psi): 4061

  • Approximate weight (kg): From 21 900
  • Approximate weight (lbs): From 48,281

  • Driving speed (kph): 0 - approximately 20
  • Driving speed (mph): 0 - approximately 12.5
  • Tractive force (lbf): 44962
  • Tractive force (kN): 200

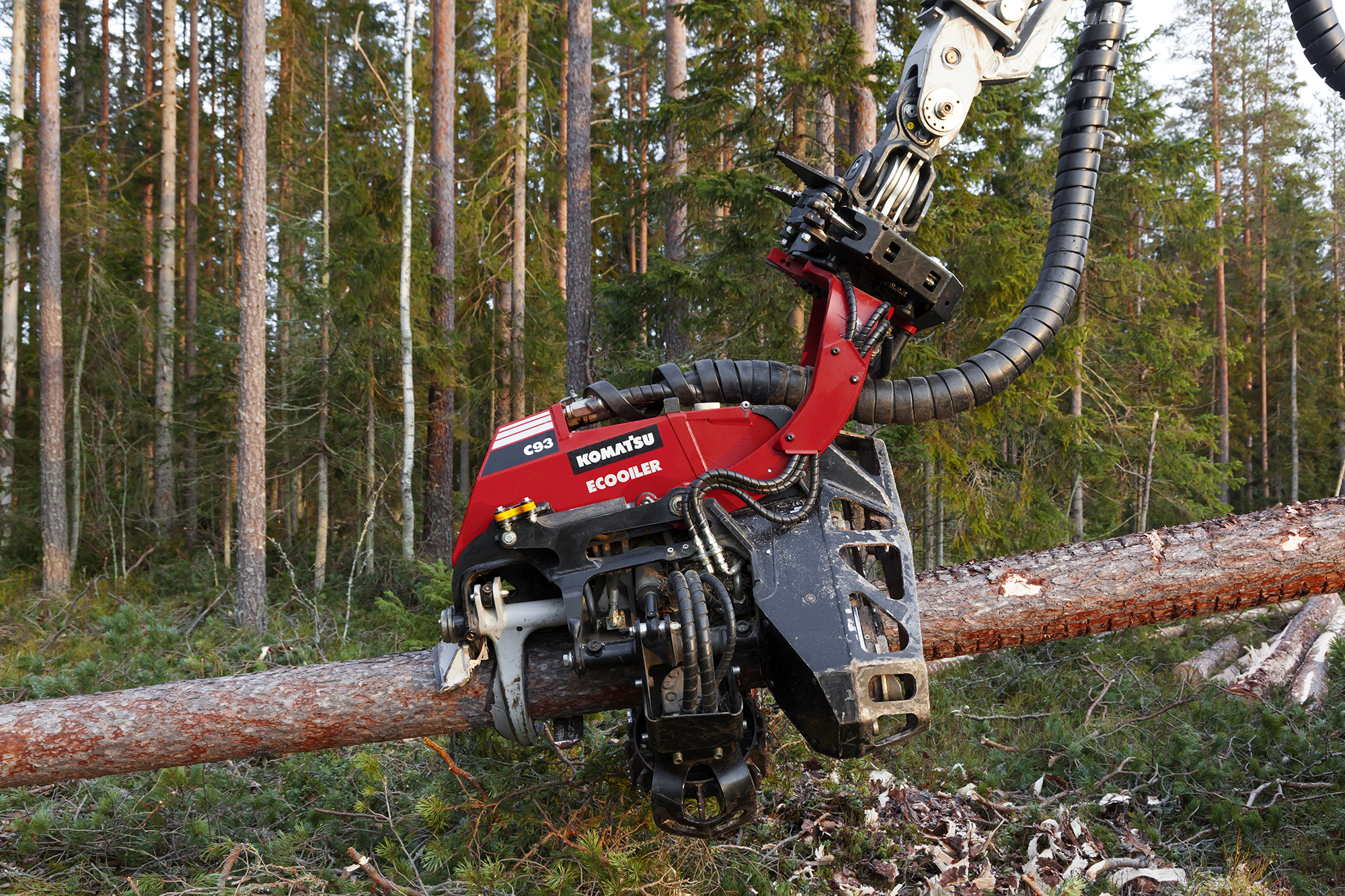

  • Available heads: S92, C93, C123, S132, C144
