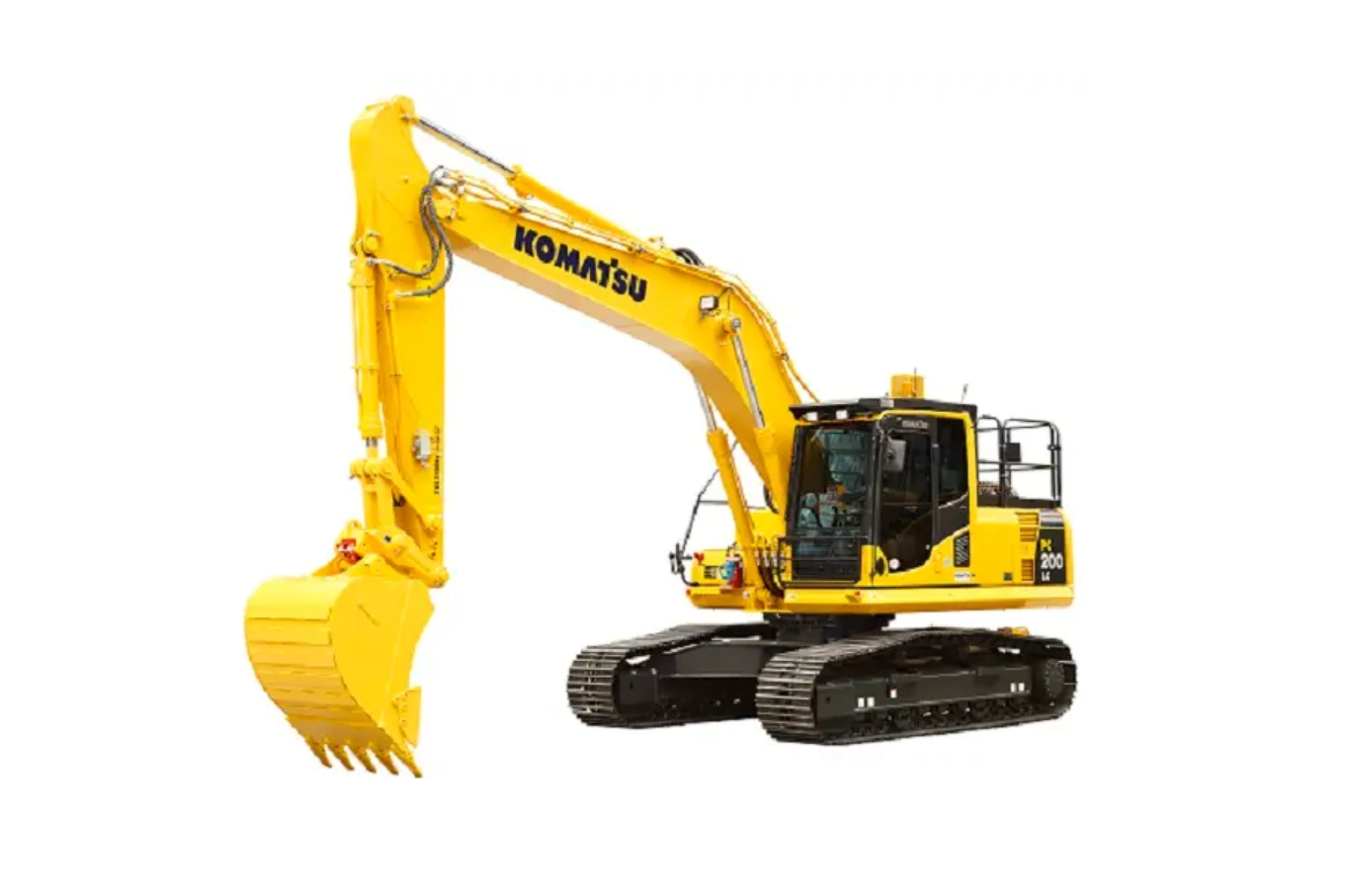

Product Image

Excavators

PC200LC-8M0

Mid-size excavators

  • Engine power (HP) 138
  • Engine power (kW) 103
  • Bucket capacity (m^3) 0.97
  • Bucket capacity (yd^3) 1.27
  • Operating weight (kg) 21960
  • Operating weight (lbs) 48398

Purchase options

Request a quote Rent me

Our PC200/LC-8M0 is a perfect workhorse for civil construction, rental and related industries, capable of a range of earthmoving, excavating and general construction applications. As with all our construction excavators, key components are designed and manufactured by Komatsu to work together in an integrated package. And it comes standard with our Komtrax remote monitoring and location system, backed by our NZ-wide service and support network.

    Resources

    Low vibration with cab damper mounting

    The PC200/LC-8M0 uses viscous mounts for the cab that incorporate a longer stroke and the addition of a spring. The cab damper mounting combined with a high rigidity deck reduces vibration at the operator’s seat.

    cab

    Specifications

    Metric Imperial (US)
    Expand all

    • Drive method: Fully hydrostatic
    • Holding brake/Swing lock: Mechanical disc brake
    • Service brake: Hydraulic lock
    • Swing circle lubrication: Grease-bathed
    • Swing reduction: Planetary gear
    • Swing speed (rpm): 12.4
    • Driven by: Hydrostatic

    • Number of selectable working modes: 6
    • HydrauMind Type: HydrauMind System

    • Main pump

      • Maximum flow (L/min): 439
      • Maximum flow (US gpm): 115.93
      • Pumps for: Boom, arm, bucket, swing, and travel circuits

    • Relief valve setting

      • Implement circuits (kgf/cm^2): 380
      • Implement circuits (MPa): 37.27
      • Implement circuits (psi): 5404.85
      • Travel circuit (psi): 5405
      • Swing circuit (psi): 4196
      • Swing: 1 x axial piston motor with swing holding brake
      • Swing circuit (kgf/cm^2): 295
      • Swing circuit (MPa): 28.9
      • Travel: 2 x axial piston motor with parking brake
      • Travel circuit (MPa): 37.3
      • Travel circuit (kgf/cm^2): 380

    • Hydraulic cylinders

      • Arm (Number of cylinders – bore x stroke x rod diameter)(mm): 1-135 x 1490 x 95
      • Arm (Number of cylinders – bore x stroke x rod diameter)(in): 5.31 x 58.66 x 3.74

    • Aspiration: Turbocharged, aftercooled
    • Engine model: Komatsu SAA6D107E-1
    • Fan drive method for radiator cooling: Mechanical
    • Piston displacement (in^3): 408.24
    • Piston displacement (L): 6.69

    • Horsepower

      • ISO 9249 / SAE J1349 - Net (HP): 138
      • ISO 9249 / SAE J1349 - Net (kW): 103
      • SAEJ1995 - Gross (HP): 147
      • SAEJ1995 - Gross (kW): 110

    • Coolant (US gal): 5.39
    • Coolant (L): 20.4
    • Hydraulic tank (L): 135
    • Hydraulic tank (US gal): 35.66
    • Swing drive (US gal): 1.72
    • Swing drive (L): 6.5
    • Engine (US gal): 6.1
    • DEF tank (US gal): None
    • Fuel tank (L): 400
    • Engine (L): 23.1
    • DEF tank (L): None

    • Gradeability: 70 %
    • Parking brake: Mechanical disc brake
    • Maximum drawbar pull (kgf): 18200

    • Center frame: X-frame leg
    • Number of carrier rollers (each side): 2
    • Number of shoes (each side): 45 - 49
    • Number of track rollers (each side): 7 - 9
    • Track frame: Box-section
    • Track adjuster: Hydraulic

    • Bucket crowd force - ISO (kgf): 15200
    • Arm crowd force - ISO (kgf): 11000
    • Swing radius (in): 108.3
    • Maximum reach at ground level (mm): 9700
    • Digging depth - maximum (mm): 6620
    • Maximum reach at ground level (in): 381.9
    • Arm size (m) and type: 2.9 standard
    • Swing radius (mm): 2750
    • Boom size (m) and type: 5.70 standard

    • Overall track width (mm): 2800 (PC200-8M0), 2980 (PC200LC-8M0)
    • Overall track width (in): 110.2 (PC200-8M0), 117.3 (PC200LC-8M0)

    • Pilot circuit (kgf/cm^3): 33
