Bolter

ZB31

Aisle navigation 1.8 m - 3.6 m 6 ft. - 12 ft.
Height with canopy in drill/tram position 9 017 mm 29 ft. 7 in
Width overall 3 977 mm 13 ft. 1 in

View all specs

Request a quote

Download spec sheet

Overview
Specifications
Service and support
Gallery

A new level of adaptability and capability

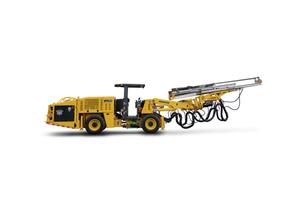

The new Komatsu ZB31 Mechanized Bolting rig features a common platform design that helps increase user adoption and makes training more efficient.

Discover a new way to bolt

The optional pumpable resin system for bolters featuring J-LOK P by JENNMAR offers an alternative to using expensive, limited bolt types. This system leverages all the advantages of bulk resin systems and expands your bolting hardware options to include low-cost rebar — an industry first.

Bolter-ZB31-San Xavier Mine AZ-DS-240807-KOM-4559.jpg

Features and Benefits

Bolter-ZB31-San Xavier Mine AZ-DS-240807-KOM-4357.jpg

Product commonality

With a focus on modularity, the Z3 product line shares common parts and placement for systems, including driveline, hydraulic and electrical. It greatly simplifies user adoption via operator and maintenance training. Streamlines inventory planning and spare parts management too. The bolting head also has double feeds and comes standard with 2 top hammer drills, which share 100% of parts.

Bolter-ZB31-San Xavier Mine AZ-DS-240807-KOM-4420.jpg

ROPS/FOPS-certified operator enclosure

Newly designed, fully enclosed operator cabin meets ISO safety and ergonomics standards. Exceptional noise and vibration reduction, air cleanliness and visibility deliver outstanding operator comfort that promotes efficiency. Open compartment available with telescoping canopy.

Bolter-ZB31-San Xavier Mine AZ-DS-240808-KOM-4703.jpg

Light and durable bolting heads with Komatsu drifters

Cast polymer components reduce weight and improve longevity. Komatsu drifters — manufactured by Montabert — deliver excellent power at the bit and extended consumable life via shockwave transfer technology.

Bolter-ZB31-San Xavier Mine AZ-DS-240807-KOM-4403.jpg

Diesel power

Diesel power engine designed for the rigors of hard rock mining. Our diesel offering includes both Tier III and Euro V Cummins engines to meet the local regulatory requirements of our underground hard rock customers.

Bolter-ZB31-San Xavier Mine AZ-DS-240807-KOM-4438.jpg

Simple, reliable, industry-proven pilot hydraulics

Intuitive, user-friendly controls allow the operator to perform multiple controls simultaneously, thus fast-tracking your bolting cycle. Maintenance and diagnostics simplified through a clean and clear hydraulic design.

Bolter-ZB31-San Xavier Mine AZ-DS-240807-KOM-4378.jpg

Flexibility for varying bolting applications

Komatsu bolting heads accommodate multiple bolt lengths and types. Allows the installation of all four major types of rock bolts: friction, hydro-expanding, mechanical and chemical bolts.

Bolter-ZB21B-San Xavier Mine AZ-DS-240405-KOM-9283.jpg

Screen handler and chemical injection system

Integrated screen handling allows full completion of bolting cycle from inside the operator enclosure. New chemical injection system provides superior alignment and accuracy and can help boost productivity with reduced bolting cycle times.

Bolter-ZB31-San Xavier Mine AZ-DS-240808-KOM-4704.jpg

Innovative bolting head

Limited moving mechanical parts and a simple design for smooth operability. Reduced bolting cycle times and increased drifter uptime helps you keep production moving.

Bolter-ZB31-San Xavier Mine AZ-DS-240808-KOM-4678.jpg

Productive drifters

Exceptional consumable life with technologies designed to enhance drilling productivity. Drifter model options include the Komatsu JZD10 and JZD12, JZD14 and JZD21 manufactured by Montabert.

Specifications for ZB31

Full specifications

Standard equipment

Optional equipment

Close all Expand all

US system Metric

Drilling equipment

Bolter hydraulics	Variable displacement piston pumps with load sensing for bolting head and boom movements.
Controls	Intelsense control system incorporating these features: collaring, anti-jamming, auto return to start position following hole completion, and control levers for operating bolter head.
Bolter position	Inline
Boom quantity	1
Boom extension	1400 mm
Feed extension	438 mm
Stinger extension	453 mm
Boom rollover	360°
Carousel capacity	9 bolts

Bolter hydraulics	Variable displacement piston pumps with load sensing for bolting head and boom movements.
Controls	Intelsense control system incorporating these features: collaring, anti-jamming, auto return to start position following hole completion, and control levers for operating bolter head.
Bolter position	Inline
Boom quantity	1
Boom extension	4 ft. 7 in
Feed extension	1 ft. 5 in
Stinger extension	1 ft. 6 in
Boom rollover	360°
Carousel capacity	9 bolts

Rock drills

Rock drills
Komatsu (Montabert)	10 kW
Komatsu (Montabert)	12 kW
Komatsu (Montabert)	15 kW
Komatsu (Montabert)	21 kW

Rock drills
Komatsu (Montabert)	13.4 HP
Komatsu (Montabert)	16.1 HP
Komatsu (Montabert)	20.1 HP
Komatsu (Montabert)	28.2 HP

Leveling jacks

Front (standard with unit)	2
Rear (standard with unit)	2

Front (standard with unit)	2
Rear (standard with unit)	2

Drilling configurations

8 ft. bolting head
Drill rod length	2 784 mm
Max drill depth	2 545 mm
Installable bolt lengths	1 829 mm - 2 438 mm
10 ft. bolting head
Drill rod length	3 404 mm
Max drill depth	3 155 mm
Installable bolt lengths	2 438 mm - 3 048 mm
12 ft. bolting head
Drill rod length	4 014 mm
Max drill depth	3 764 mm
Installable bolt lengths	3 048 mm - 3 658 mm

8 ft. bolting head
Drill rod length	9 ft. 2 in
Max drill depth	8 ft. 4 in
Installable bolt lengths	6 ft. - 8 ft.
10 ft. bolting head
Drill rod length	11 ft. 2 in
Max drill depth	10 ft. 4 in
Installable bolt lengths	8 ft. - 10 ft.
12 ft. bolting head
Drill rod length	13 ft. 2 in
Max drill depth	12 ft. 4 in
Installable bolt lengths	10 ft. - 12 ft.

Drilling electrics

JZD10, JZD12	One 56 kW (75 HP) TEFC electric motor (voltage as per application) NEMA 4 MCP enclosure.
JZD14, JZD21	One 75 kW (100 HP) TEFC electric motor (voltage as per application) NEMA 4 MCP enclosure.
Power requirements (configuration dependent)
380 V	70 kW	113 kW
440 V	70 kW	114 kW
480 V	70 kW	113 kW
525 V	70 kW	113 kW
575 V	70 kW	113 kW
Cable reel capacity (configuration dependent)
Maximum	Up to 200 m

JZD10, JZD12	One 56 kW (75 HP) TEFC electric motor (voltage as per application) NEMA 4 MCP enclosure.
JZD14, JZD21	One 75 kW (100 HP) TEFC electric motor (voltage as per application) NEMA 4 MCP enclosure.
Power requirements (configuration dependent)
380 V	94 HP	152 HP
440 V	94 HP	153 HP
480 V	94 HP	152 HP
525 V	94 HP	152 HP
575 V	94 HP	152 HP
Cable reel capacity (configuration dependent)
Maximum	Up to 656 ft.

Control system

User interface (tram console)

CAN bus

User interface (tram console)

CAN bus

Operating weights

Base unit	20 700 kg
Fully optioned	25 400 kg

Base unit	45 636 lbs.
Fully optioned	55,997 lbs.

Driving speeds forward and reverse

1st gear (0% grade) - Tier III	5.9 km/h
2nd gear (0% grade) - Tier III	13.1 km/h
1st gear (0% grade) - Stage V	5.1 km/h
2nd gear (0% grade) - Stave V	11.4 km/h

1st gear (0% grade) - Tier III	3.6 mph
2nd gear (0% grade) - Tier III	8.1 mph
1st gear (0% grade) - Stage V	3.2 mph
2nd gear (0% grade) - Stave V	7.1 mph

Powertrain

General
Fuel tank capacity	98 L	25.9 US gal
Engine
Model	Cummins QSB4.5	Cummins QSB4.5
Displacement	4.5 L	4.5 L
Certification	EPA Tier 3 MSHA, Canmet	EURO Stage V MSHA, Canmet
Cooling type	Water cooled, charge air cooled	Water cooled, charge air cooled
Air filtration	Single-stage dry type	Single-stage dry type
Output	97 kW (130 HP) @ 2 500 rpm	99 kW (133 HP) @ 2 200 rpm
Transmission
Model	Dana
Shifting	Powershift
Speeds	Two forward/two reverse
Axles
Front and rear	Dana
Differential	Limited slip
Service brakes	Enclosed wet disc
Parking brakes	Hydraulically-released/spring-applied
Oscillation angle	+/- 6 deg
Tires
Type	Pneumatic, lugged
Size	14:00-24

General
Fuel tank capacity	98 L	25.9 US gal
Engine
Model	Cummins QSB4.5	Cummins QSB4.5
Displacement	4.5 L	4.5 L
Certification	EPA Tier 3 MSHA, Canmet	EURO Stage V MSHA, Canmet
Cooling type	Water cooled, charge air cooled	Water cooled, charge air cooled
Air filtration	Single-stage dry type	Single-stage dry type
Output	97 kW (130 HP) @ 2 500 rpm	99 kW (133 HP) @ 2 200 rpm
Transmission
Model	Dana
Shifting	Powershift
Speeds	Two forward/two reverse
Axles
Front and rear	Dana
Differential	Limited slip
Service brakes	Enclosed wet disc
Parking brakes	Hydraulically-released/spring-applied
Oscillation angle	+/- 6 deg
Tires
Type	Pneumatic, lugged
Size	14:00-24

Carrier hydraulics

General	Variable displacement piston pumps with load
Oil tank volume	395 L
Steering hydraulics	Variable displacement piston pumps with load sense; two double-acting steer cylinders.
Brake system	Totally enclosed service brake is hydraulically-applied, spring-released on front and rear axles with automatic brake application.

General	Variable displacement piston pumps with load
Oil tank volume	104 US gal
Steering hydraulics	Variable displacement piston pumps with load sense; two double-acting steer cylinders.
Brake system	Totally enclosed service brake is hydraulically-applied, spring-released on front and rear axles with automatic brake application.

Carrier electrics

Alternator	24 V / 120 A
Batteries	2 x 12 V
Starter	24 V heavy-duty
Tram lights	8 forward/5 rearward
Drill lights	8 front

Alternator	24 V / 120 A
Batteries	2 x 12 V
Starter	24 V heavy-duty
Tram lights	8 forward/5 rearward
Drill lights	8 front

Parking brake
Articulation lock brace mounted to machine
Back-up alarm
Four emergency stops
ROPS/FOPS certified canopy (ISO 3449:2005 | ISO 3471:2008)

3-point access to cabin
LED working lights
Single 20 lbs. fire extinguisher
LCD dash ◦ Mechanical suspension seat
Joystick boom/drill controls
Switched 24VDC power supply
12VDC Power port
2x 2.1A USB power port
Engine diagnostic port

2.4 m (8 ft.) bolting head
- Fixed end centralizer
- Komatsu (Montabert) JZD12 rock drills
- Variable bolt length functionality (configuration dependent)
Water pump
11 kW (14.8 HP) air compressor
Water flushing
Trailing cable reel with spooling device
Manual hand pump for hydraulic tank filling
Centralized carrier lubrication station
Tier 3 Cummins QSB 4.5L diesel engine
Pneumatic tires
Double wall insulated exhaust piping
DOC exhaust
Floor mat

Parking brake
Articulation lock brace mounted to machine
Back-up alarm
Four emergency stops
ROPS/FOPS certified canopy (ISO 3449:2005 | ISO 3471:2008)

3-point access to cabin
LED working lights
Single 20 lbs. fire extinguisher
LCD dash ◦ Mechanical suspension seat
Joystick boom/drill controls
Switched 24VDC power supply
12VDC Power port
2x 2.1A USB power port
Engine diagnostic port

2.4 m (8 ft.) bolting head
- Fixed end centralizer
- Komatsu (Montabert) JZD12 rock drills
- Variable bolt length functionality (configuration dependent)
Water pump
11 kW (14.8 HP) air compressor
Water flushing
Trailing cable reel with spooling device
Manual hand pump for hydraulic tank filling
Centralized carrier lubrication station
Tier 3 Cummins QSB 4.5L diesel engine
Pneumatic tires
Double wall insulated exhaust piping
DOC exhaust
Floor mat

Various voltages: 380V / 50Hz, 440V / 60Hz, 480V / 60Hz, 525V / 50Hz, 575V / 60Hz
Drill on diesel power
Trailing cable (standard or extended length)
Cable hangers
18.5 kW (24.8 HP) air compressor
Fiberglass exhaust wrap (tier 3 only)
DPF exhaust (tier 3 only)
Fire suppression system (manually actuated)
Fire suppression system (manually actuated) with Checkfire system
Secondary 20 lb. fire extinguisher
Hydro expanding bolt unit
Pressure washer with 20 m (66 ft.) hose reel
Electric fill for hydraulic tank
Wiggins fill for oils and coolants
Wiggins fill for fuel tank
Centralized greasing for boom
Carrier automatic lubrication system
Grease station with hose reel and drum pump
Red/green directional lights (front and rear)
Beacon light kit
Brake lights
Rear view camera
Wheel chocks (10”) with bracket
Front electronic curtain
Jump start receptacle
Air/water maintenance kit
Rear-mounted reel control box
Dewatering pump ready (pump not included)
Abrasion resistant boom hosing

Cabin/canopy options

ROPS/FOPS certified enclosed cabin (ISO 3449:2005 | ISO 3471:2008)
- Climate control (cabin only)
- Filtered and pressurized
- Safety glass windows
- Integrated 2-way radio mounting
Stereo system (music player with speakers)
Rock guard (front of cabin or canopy)
Floor mat
Seatbelt sensor
Door sensor (cabin only)
Manual controlled spot lights (canopy only)
Joystick controlled spot lights (cabin only)
2-way radio antenna mounting
Boot washer

Environmental options

High altitude environment package
Low ambient temperature environment package
Corrosive environment package

Flushing options

Water flushing + air blast
Water flushing + air blast + air mist

Tag and display language options

English, Spanish, Russian, French, Portuguese

Bolting head and rock drill options

Bolting heads:8 ft., 10 ft., 12.
Rock drill options: JZD10, JZD12, JZD14, JZD21
Centralizers
- Hydraulic centralizer (end)
- Quick change centralizer with hard bushings (end and/or travelling)
- Quick change centralizer with soft bushings (end and/or travelling)
Auto return
Rod handler
Integrated screen/mesh handler
Bolting packages (configurable)
- Cartridge resin injection system arrangement (23mm, 25mm, 28mm, 30mm, 32mm)
- Pumpable resin injection system arrangement
- Friction bolt arrangement
- Hydro-expanding type friction bolt arrangement
- Mechanical bolt arrangement
- Other bolt type packages available (ask your Komatsu sales and service representative)

Various voltages: 380V / 50Hz, 440V / 60Hz, 480V / 60Hz, 525V / 50Hz, 575V / 60Hz
Drill on diesel power
Trailing cable (standard or extended length)
Cable hangers
18.5 kW (24.8 HP) air compressor
Fiberglass exhaust wrap (tier 3 only)
DPF exhaust (tier 3 only)
Fire suppression system (manually actuated)
Fire suppression system (manually actuated) with Checkfire system
Secondary 20 lb. fire extinguisher
Hydro expanding bolt unit
Pressure washer with 20 m (66 ft.) hose reel
Electric fill for hydraulic tank
Wiggins fill for oils and coolants
Wiggins fill for fuel tank
Centralized greasing for boom
Carrier automatic lubrication system
Grease station with hose reel and drum pump
Red/green directional lights (front and rear)
Beacon light kit
Brake lights
Rear view camera
Wheel chocks (10”) with bracket
Front electronic curtain
Jump start receptacle
Air/water maintenance kit
Rear-mounted reel control box
Dewatering pump ready (pump not included)
Abrasion resistant boom hosing

Cabin/canopy options

ROPS/FOPS certified enclosed cabin (ISO 3449:2005 | ISO 3471:2008)
- Climate control (cabin only)
- Filtered and pressurized
- Safety glass windows
- Integrated 2-way radio mounting
Stereo system (music player with speakers)
Rock guard (front of cabin or canopy)
Floor mat
Seatbelt sensor
Door sensor (cabin only)
Manual controlled spot lights (canopy only)
Joystick controlled spot lights (cabin only)
2-way radio antenna mounting
Boot washer

Environmental options

High altitude environment package
Low ambient temperature environment package
Corrosive environment package

Flushing options

Water flushing + air blast
Water flushing + air blast + air mist

Tag and display language options

English, Spanish, Russian, French, Portuguese

Bolting head and rock drill options

Bolting heads:8 ft., 10 ft., 12.
Rock drill options: JZD10, JZD12, JZD14, JZD21
Centralizers
- Hydraulic centralizer (end)
- Quick change centralizer with hard bushings (end and/or travelling)
- Quick change centralizer with soft bushings (end and/or travelling)
Auto return
Rod handler
Integrated screen/mesh handler
Bolting packages (configurable)
- Cartridge resin injection system arrangement (23mm, 25mm, 28mm, 30mm, 32mm)
- Pumpable resin injection system arrangement
- Friction bolt arrangement
- Hydro-expanding type friction bolt arrangement
- Mechanical bolt arrangement
- Other bolt type packages available (ask your Komatsu sales and service representative)
