Feeder breaker

UFB-17

  • Seam Height 122 - 152 cm 48 - 60 in
  • Throughput (Standard) Up to 1 089 MTPH Up to 1,200 TPH
  • Breaker Pick force Up to 58 967 kg Up to 130,000 lbs.

Integral to your operation’s productivity

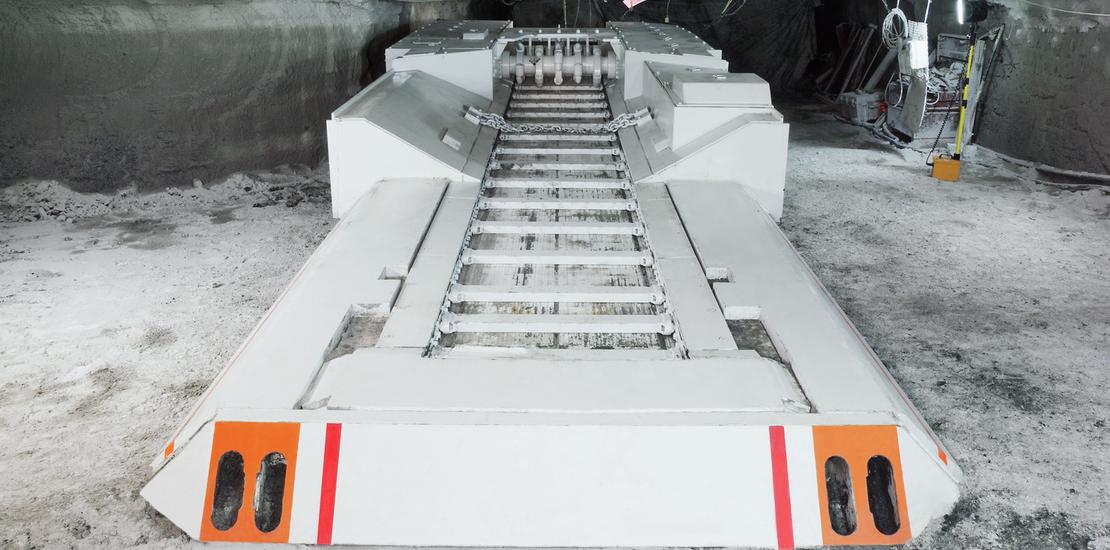

The Joy UFB-17 feeder breaker is designed to cut operating costs and increase production rates by helping your mining, haulage and conveying systems to work efficiently. This machine provides a reliable means for continuous feeding and breaking of most bedded, mined materials.

  • Lower seam applications
  • Low operating cost
  • High capacity

Features and benefits


Promotes increased productivity

Since the feeder breaker is located closer to the working face, haulage distances and travel times are reduced, resulting in increased production and efficiency of the remaining section equipment.
Breaker_literature link_UFB_ICT crawler assembly.psd

Easier section moves

Equipped with a powerful crawler drive system for quick, efficient belt moves. Plus, the feeder breaker can be connected to the conveyor belt to move them both simultaneously, saving time.
GPL2112_withGPL6391VFD_forcrushingwebsite image.psd

Optidrive VFD [option]

Joy Optidrive, an AC variable-frequency drive system, integrates software with the electronic and mechanical systems to provide precise conveyor speed control and breaker overload protection.
under ground ufb_literature link_Splined Breaker Drive.jpeg

Splined breaker shafts

Splined connection versus a compression connection can reduce assembly and disassembly time by more than 50%, reducing downtime for replacement and service. Splined connection is also 25% stronger than previous connections.* *based on internal testing
under ground ufb_literature link_Bolt on Flights.jpeg

Bolt-on flights [option]

Downtime to replace conveyor flights is reduced by up to 75% with an easy bolt-on, alloy steel flight design. Operators have the flexibility to add additional flights and improve product sizing.

Camera system

Forward and rearward cameras provide remote monitoring of haulage equipment receiving payload and discharging onto the material handling system.
under ground ufb_literature link_Hydraulic conveyor chain take up.jpg

Hydraulic conveyor chain take-up [option]

Changes chain tension in two minutes, compared to four man-hours with standard system, reducing labor and material costs. Promotes extended chain and sprocket life.
under ground ufb_literature link_QUICK DISCONNECT WITH MOTOR.psd

Quick disconnect hydraulic pump [option]

Easily disengages the hydraulic pump when the feeder breaker (electro-mechanical conveyor) is not tramming.
under ground ufb_literature link_Tailshaft with enclosed bearings.jpeg

Enclosed tail shaft bearings [option]

Extends the bearing life by lessening contamination from mud, coal and water.

Specifications for UFB-17

Close all Expand all
US system Metric
General

Seam Height

122 - 152 cm

Throughput (Standard)

Up to 1 089 MTPH

Breaker Pick Force

Up to 58 967 kg

Seam Height

48 - 60 in

Throughput (Standard)

Up to 1,200 TPH

Breaker Pick Force

Up to 130,000 lbs.
