Excavators

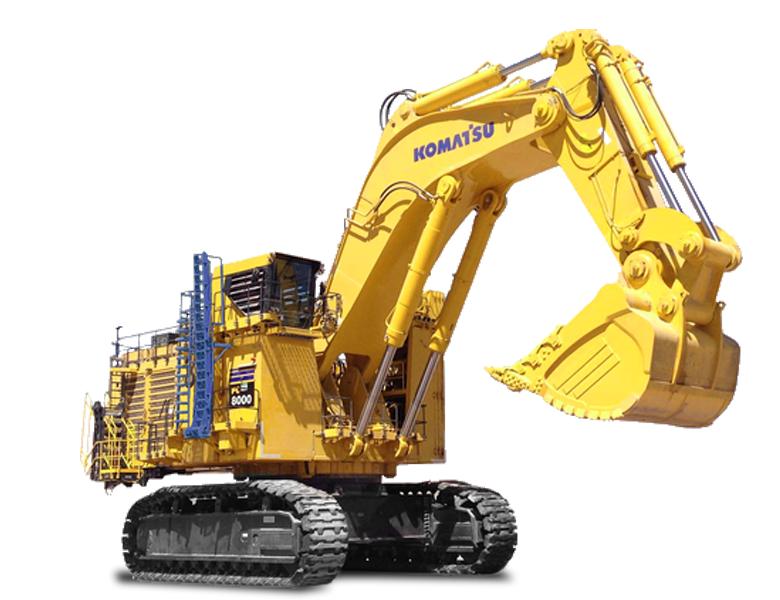

PC8000-11
Surface mining excavators
- Horsepower (HP) 4020
- Horsepower (kW) 3000
- Operating weight (kg) 752 000
- Operating weight (lbs) 1657874
- Bucket capacity (m^3) 42
- Bucket capacity (yd^3) 55
Available in both backhoe and face shovel configurations, the 42m³ capacity PC8000-6 is the largest in the Komatsu mining shovel line up and has been built to operate efficiently and productively across multiple mining applications. Key components are designed and manufactured by Komatsu to work together in an integrated package. The unit comes standard with our Komtrax Plus remote monitoring and location system and is backed by our Southern Africa-wide service and support network.
Resources
Specifications
- Full specs
Metric
Imperial (US)
Expand all
- Hydraulic system features: The power train consists of two main drives. Each of the two gearboxes drives four identical main pumps which draw hydraulic oil from an unpressurized hydraulic tank. Open circuit hydraulics provide maximum cooling and filtering efficiency.
- Flow description: The four-circuit systems feature a load-limiting governor with oil delivery summation to the working circuits and incorporates pressure cut-off control. Hydropilot prioritizes hydraulic flow giving smooth hydraulic response, simple hydraulic system layout, and a reduced number of components. The hydraulic system includes large swing-out vertical air-to-oil hydraulic coolers with temperature-regulated hydraulically driven fans.
- Type of main hydraulic pumps: 8 identical swash plate pumps
- Swing flow rate(L/min): 2 070
- Swing flow rate(gpm): 547
- Hydraulic pressure (all circuits)(bar): 310
- Hydraulic pressure (all circuits)(psi): 4,495
- Main hydraulic flow per pump(gpm): 273
- Main hydraulic flow per pump(L/min): 1 035
- High pressure screens: 200 microns
- Hand-lever (ISO 5349-1): Lower than 2.5 m/s2
- Whole body vibration and shock (ISO 2631-1): Below 0.5 m/s2
- Greenhouse gas: R 134 A
- D CO2 equivalent(t): 5.005 - 11.869
- D quantity of gas(kg): 3.5 - 8.3
- E CO2 equivalent(t): 10.240 - 17.16
- E quantity of gas(kg): 7.2 - 12
- Model (Tier 4): 2x Komatsu SDA16V160E-3
- Aspiration: Turbocharged and aftercooled
- Number of cylinders: 16
- Engines amount (Diesel): 2
- Rated power per engine (kW): 1 500 kW @ 1 800 rpm
- Rated power per engine (HP): 2,010 HP @ 1,800 rpm
- Governor: All-speed, electronic
- DEF tank capacity (tier 4) (L): 2 x 592.4
- DEF tank capacity (tier 4) (gal): 2 x 156.5
- Mining Type_Diesel drive: 4-cycle, water-cooled, direct injection
- Hydraulic motors and swing gears: 3
- Swing brake, dynamic: Hydraulic brake
- Swing brake, parking: Multiple-disc
- Swing ring teeth: External
- Swing speed (max)(rpm): 2.7
- Gradeability: Up to 50%
- Travel speed (max)(kph): 2.4
- Travel speed (max)(mph): 1.5
- Service brake: Hydraulic brake
- Parking brake: Multiple brake
- Argus PLM ready: Yes
- Komtrax plus features: The Komtrax Plus monitoring system is designed for Komatsu mining equipment to provide real time and stored information about the operating status of the machine. Fault messages are immediately available to the operator via a digital display and in the event of critical malfunctions the engine is also shut down. The digital storage provides failure summary and analysis, which can be down loaded by laptop computer. This data will assist in predicting or reduction downtime. Optionally available is Orbcomm satellite transmission (check for availability in your territory).
- Version: Komtrax Plus 2
- Hydraulic oil tank (L): 7 750
- Hydraulic oil tank (US gal): 2,047
- Hydraulic system (US gal): 3,038
- Hydraulic system (L): 11 500
- Fuel (L): 13 925
- Fuel (US gal): 3,679
- Engine oil (US gal): 153
- Engine oil (L): 580
- Lubrication system (total)(US gal): 238
- Lubrication system (total)(L): 900
- Engine coolant(L): 860
- Engine coolant(US gal): 227
- Damping pads (amount): Enclosed steel cab mounted on viscous pads
- AC System: Air-condition unit
- Suspension of seat: Full suspension operator seat with belt
- Heating of seat: Electrically heated
- Seat belt: Trainer seat with belt
- Adjustments of seat: Multiple adjustments
- Joystick controls: Electro-hydraulic joystick controls
- Foot controls: Foot control for shovel clam, crawler and swing brake
- Radio version: AM-FM radio with MP3 ready CD player and AUX in
- Windshield washers: 1 large parallel windshield wash wiper
- Windshield washer speed: Two speeds and intermittent operation
- Additional mirrors: 2 heated rear mirrors
- Sun blinds: Internal and external
- Roller blinds: Standard on all windows (excluding rear door)
- Sliding window: ESG escape window, VSG according to ECE R43
- Window tinting: Parsol green
- Penetration proof windows: Impact resistant front window (21 mm and tolerances)
- Walkway: Walkway around the cab
- Engineering standards: ISO 3449, ISO 6394, ISO 10263-4 TL: EN474-1, EN 474-5, DIN 15018, BR2-S DIN EN 1063, ECE R43, ISO 10262
- Type_Electric drive: Asynchronous motor
- E-drive availability-11: Not available
- Engines amount (Electric): 2
- Rated power per engine (kW): 1 448.93 kW @ 1,800 rpm
- Rated power per engine (HP): 1,970 HP @ 1,800 rpm
- Voltage: 6 000 - 7 200 V
- Amperage (approx.): 2 x 155 A - 2 x 128 A
- Frequency standard: 60 Hz @ 1 800 rpm
- Frequency option: 50 Hz @ 1 500 rpm
- Track adjustment: Automatic hydraulic type
- Number of bottom rollers each side: 8
- Number of top rollers each side: 3
- Number of track shoes each side: 49
- System: 24 V
- Batteries: 8 x 12 V
- Alternator: 2 x 140 A
- Standard service lights: Throughout the platform including emergency egresses and stairways
- Standard working lights (amount): 14 LED lights
- Automatic lubrication system (L): Three hydraulically powered Lincoln single line automatic lubrication systems are provided as standard, complete with time and volume variable controls. The two central lubrication circuits and open gear grease circuit are supplied by identical pump assemblies from refillable containers which have a capacity of 1 x 600 and 1 x 300 L (total 238 gal). Replenishment of the containers is through the Wiggins connections on the service arm.
- Automatic lubrication system (US gal): Three hydraulically powered Lincoln single line automatic lubrication systems are provided as standard, complete with time and volume variable controls. The two central lubrication circuits and open gear grease circuit are supplied by identical pump assemblies from refillable containers which have a capacity of 1 x 600 and 1 x 300 L (total 238 gal). Replenishment of the containers is through the Wiggins connections on the service arm.
