Wheel loaders

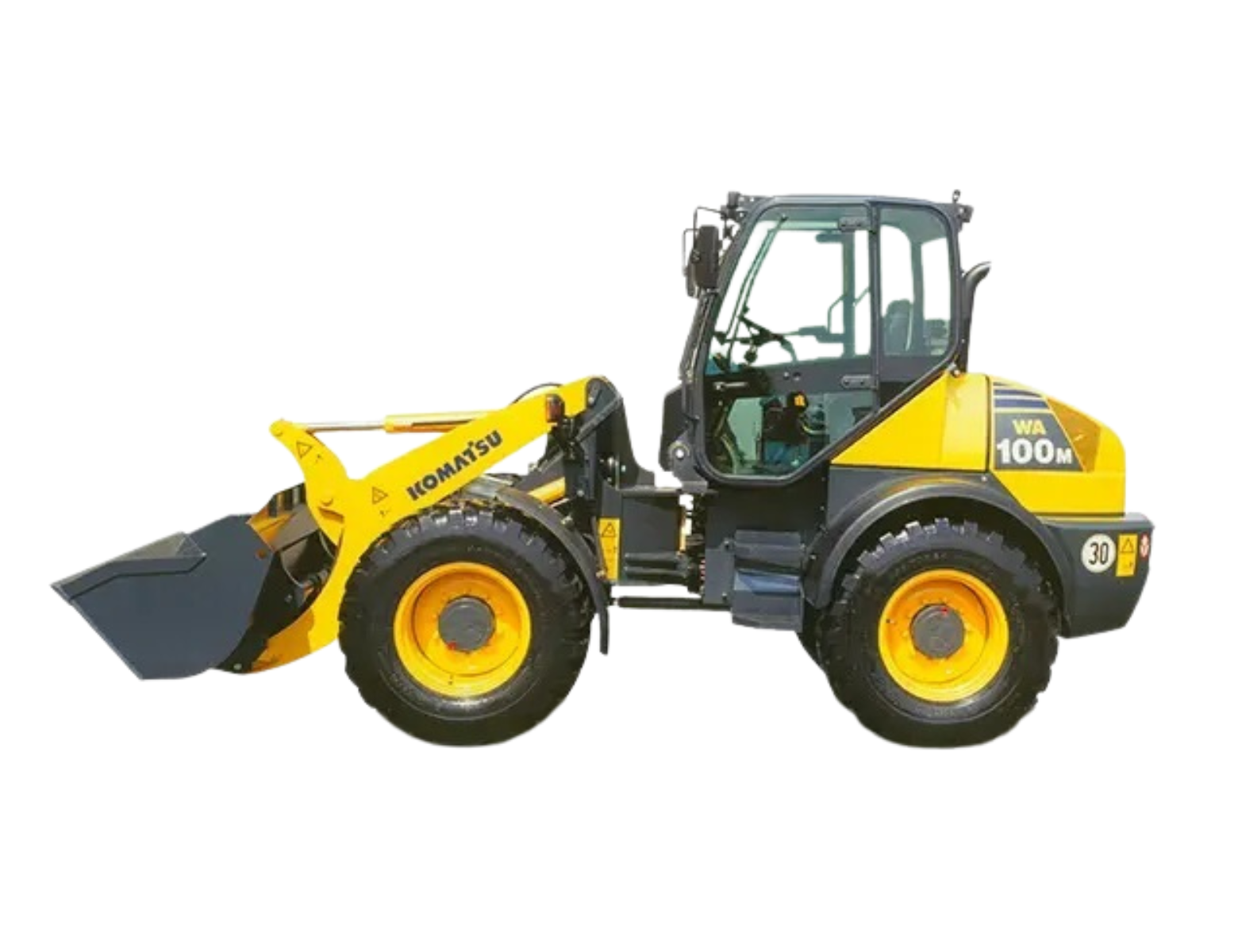

WA100M-8E0
Small wheel loaders
- Bucket capacity (m^3) 1.3
- Bucket capacity (yd^3) 1.7
- Engine power (HP) 94
- Engine power (kW) 69.8
- Operating weight (kg) 7065
- Operating weight (lbs) 15578
With bucket capacities from 1.05-1.8 m3, our hydrostatic drive WA100-8 loader features a latest-technology Komatsu engine, delivering increased power, performance, productivity and ease of maintenance – loading and handling many different types of material, across a wide range of industry sectors. As with all our wheel loaders, key components are designed and manufactured by Komatsu to work together in an integrated package. And it comes standard with our Komtrax remote monitoring and location system, backed by our NZ-wide service and support network.
Resources
Powerful and environmentally friendly
- Greater engine power
- Increased capacity for the standard bucket
- Faster travel speed
- Wide-core radiator
- Highly efficient hydrostatic drive line
- Low operating costs
Specifications
- Full specs
- Engine Model: Komatsu SAA4D94LE-3
- Bore x stroke of engine (mm): 94 x 110
- Bore x stroke of engine (in): 3.70 x 4.33
-
Horsepower
- Rated RPM: 2000
- Boom cylinder (mm): 80 × 714 mm
- Working pressure, max (bar): 270
- Hydraulic control lever: Multifunction lever
- Option (ltr/min): 120
- Number of boom/bucket cylinders: 2/1
-
Steering System
- Bore x stroke (mm): 60 × 369
- Bore x stroke (in): 2.36 x 14.53
-
Cylinders
- Bucket cylinder - 1 (in): 3.94 × 18.74
- Bucket cylinder - 1 (mm): 100 × 476
- Operating brakes: Combined inch brake pedal actuates maintenance free, wet multi-disc type brakes in the front axle Self-braking via the hydrostatic drive
- Parking brake: Integrated wet multi-disc type brake
- Type of hydrostatic: 1 variable piston motor, 1 variable piston pump
- Hydraulic system (US gal): 13.21
- Axle front (US gal): 2.4
- Cooling system (US gal): 5.89
- Fuel tank (L): 110
- Axle rear (US gal): 2.4
- Transfer case (L): 1.3 (at 20 km/h) / 1.6 (at 40 km/h)
- Engine (L): 10.5
- Hydraulic system (L): 50
- Cooling system (L): 22.3
- Fuel tank (US gal): 29.06
- Axle rear (L): 9.1
- Engine (US gal): 2.77
- Axle front (L): 9.1
- Transfer case (US gal): 0.34 (at 20/km/h) / 0.43 (at 40 km/h)
- Steering system type: Hydraulic, double-action, articulated frame steering
- Working pressure (bar): 175
- Steering angle: 42°
- Number of steering cylinders: 2
- Tires: 455/70 R20 (standard)
- Chassis axles type: Planetary rigid axles with automatic limited slip differentials in both axles 100% locking differentials as option
- Drive System: Hydrostatic
