Forestry

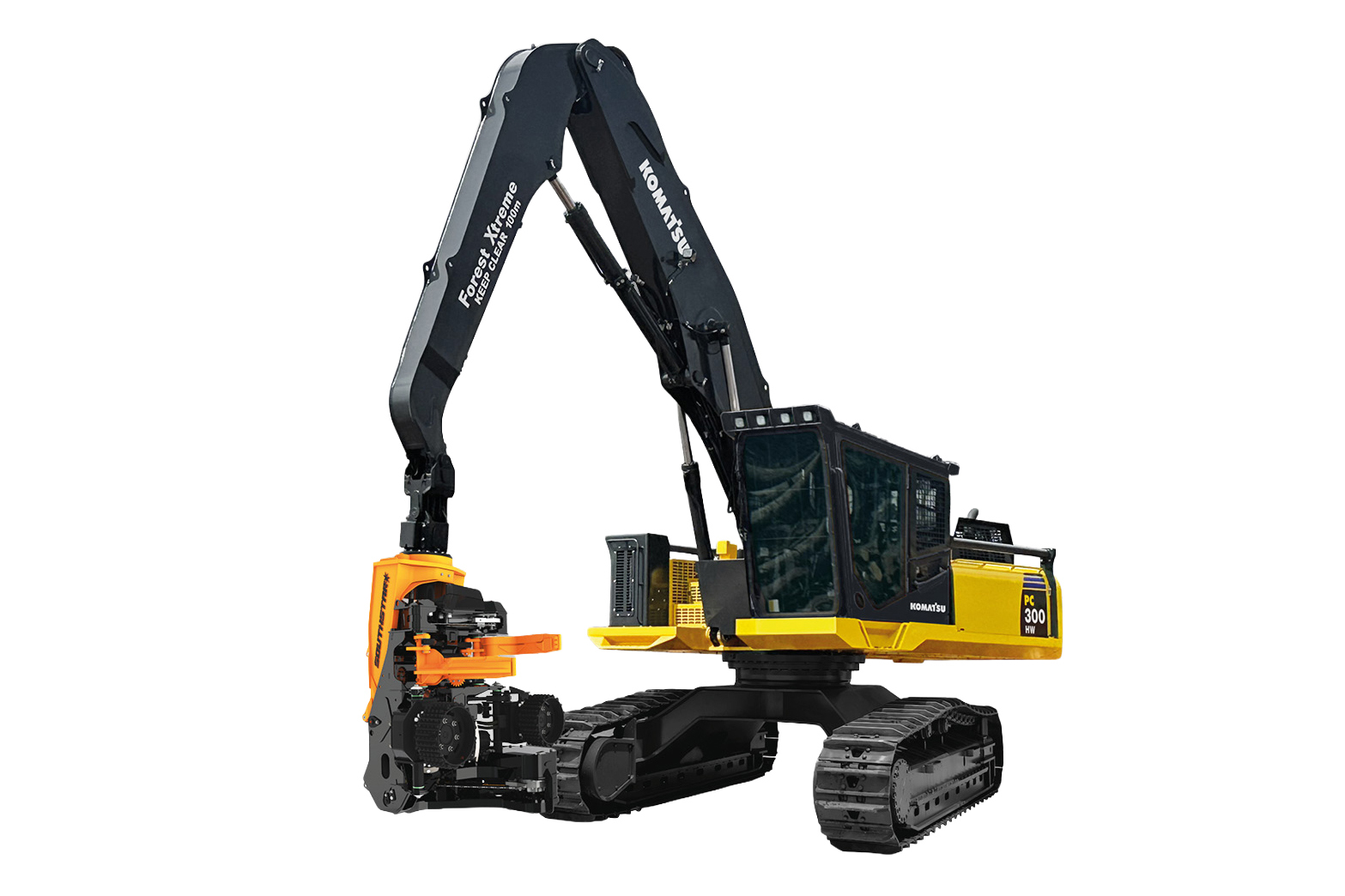

PC300HW-8

Swing machines

Purchase options

Contact a sales representative

Productive Xtreme Carrier for heavy-duty forestry attachments

The PC300HW-8 is built to handle large attachments and demanding applications. With renowned stability and advanced hydraulics, it’s a productive choice for professional contractors.

  • High Wide undercarriage with reinforced components
  • Forestry boom set for processors and felling heads
  • Heavy-duty cooling system for hot environments - Aux Hydraulic Cooler
  • Certified forestry cab for safety and comfort

Resources

Features and benefits

High wide undercarriage

High wide undercarriage

Track guards and HD covers

Track guards and HD covers

Internal attachment hoses

Internal attachment hoses

Working gear boom set

Working gear boom set

Certified forestry cabin

Certified forestry cabin

Internal knuckle hoses

Internal knuckle hoses


Specifications

Metric Imperial (US)
Expand all

  • Approximate operating weight (kg): 38 500
  • Approximate operating weight (lbs): 84878

  • Hydraulics type: HydrauMind
  • : 4

  • Hydraulic motors

    • Swing: 1 x axial piston motor
    • Travel: 2 x axiel piston motors

  • Main pump

    • Hydraulic type: Variable displacement piston type
    • Pumps for: Boom, arm, attachment, swing and travel circuit
    • Maximum flow (L/min): 450
    • Maximum flow (US gpm): 119

  • Steering control: Two levers with pedals
  • Maximum drawbar pull: 264 kN
  • Maximum drawbar pull (lbs): 59330
  • Gradeability: 70%, 35 degrees

  • Maximum travel speed (auto-shift)

    • High (mph): 2.8
    • High (kph): 4.5
    • Parking brake: Mechanical disc brake

  • Drive method: Hydrostatic

  • Maximum travel speed (auto-shift)

    • Service brake: Hydraulic lock

  • Fuel tank (US gal): 105.7
  • Fuel tank (L): 400
  • Engine (US gal): 9.8
  • Engine (L): 37
  • Final drive (US gal): 2.2
  • Final drive (L): 8.5
  • Swing drive (L): 8.2
  • Swing drive (US gal): 2.2
  • Hydraulic tank (L): 132
  • Hydraulic tank (US gal): 34.9

  • Engine Model: Komatsu SAA6D114E-3
  • Engine type: Water-cooled, 4-cycle, direct injection
  • Aspiration: Turbocharged, aftercooled
  • : 6

  • Center frame: X-frame
  • Track frame: Box-section
