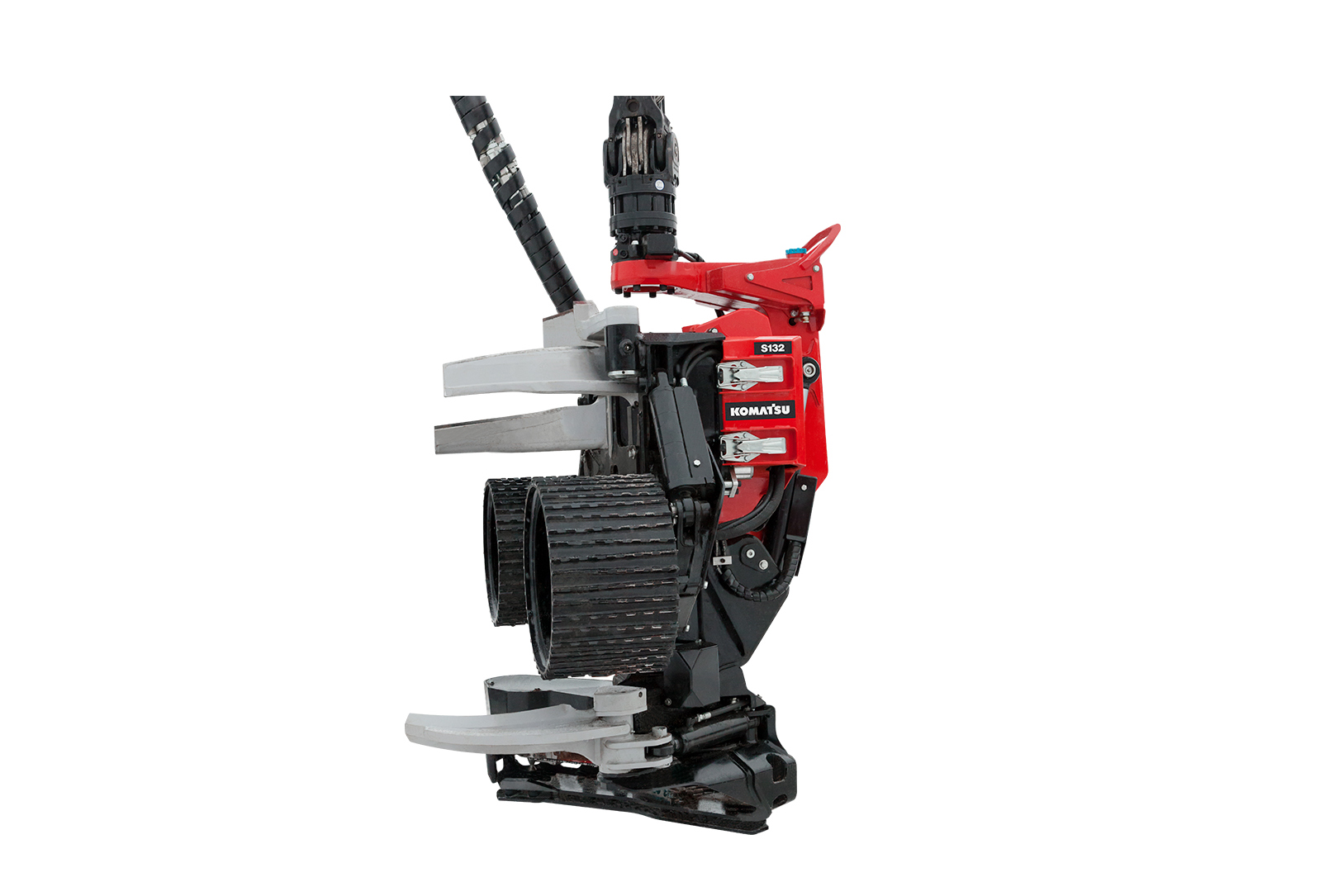

Forestry
S132-2
Harvester heads
- Weight (kg) 1380
- Weight (lbs) 3042
- Maximum cutting diameter (in) 27.9
- Maximum cutting diameter (mm) 710
- Head opening (in) 24.6
- Head opening (mm) 625
Purchase options
Contact a sales representativeEfficient and reliable for final felling
The Komatsu S132 is an efficient and reliable head, optimised for final felling. With its strong design and service-friendly features, it delivers productivity and durability even in demanding terrain.
- Built for final felling with strength and reliability
- High traction combined with Flex Friction Control ensures efficient feeding of the stems
- Customise your head with options like four-point measuring, colour marking, and stump treatment
Resources
Features and benefits

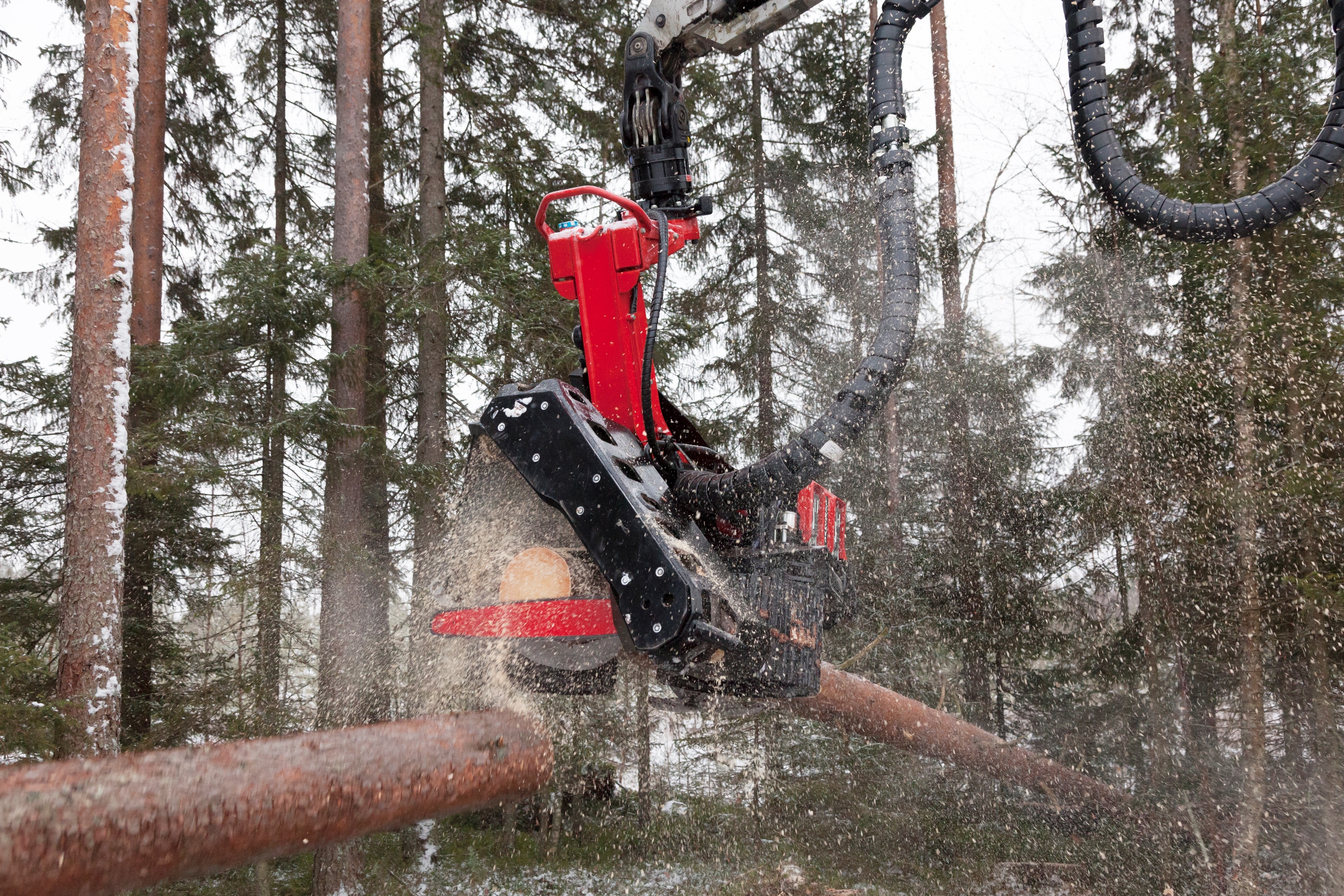

Designed for final felling
With three hydraulically operated delimbing knives and a movable top knife, the S132 delivers precise delimbing and effective handling of large stems. The large tilt angle of the felling link also reduces strain when working in steep terrain, boosting performance and comfort.

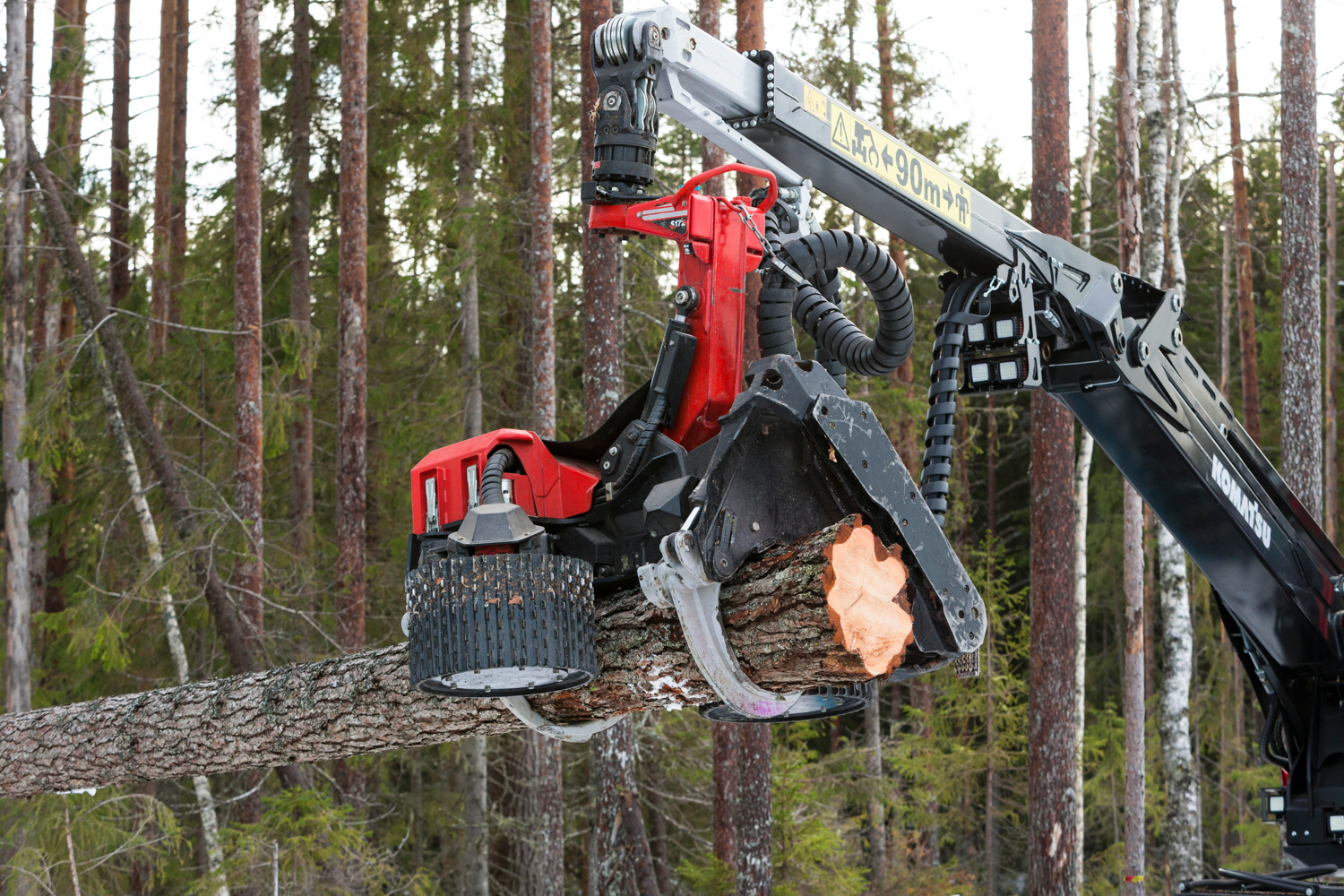

Simple, proven design
Smart hose routing and protected head components ensure dependable operation and reduced downtime. The head’s straightforward design makes it a durable and reliable partner for heavy-duty forestry work.

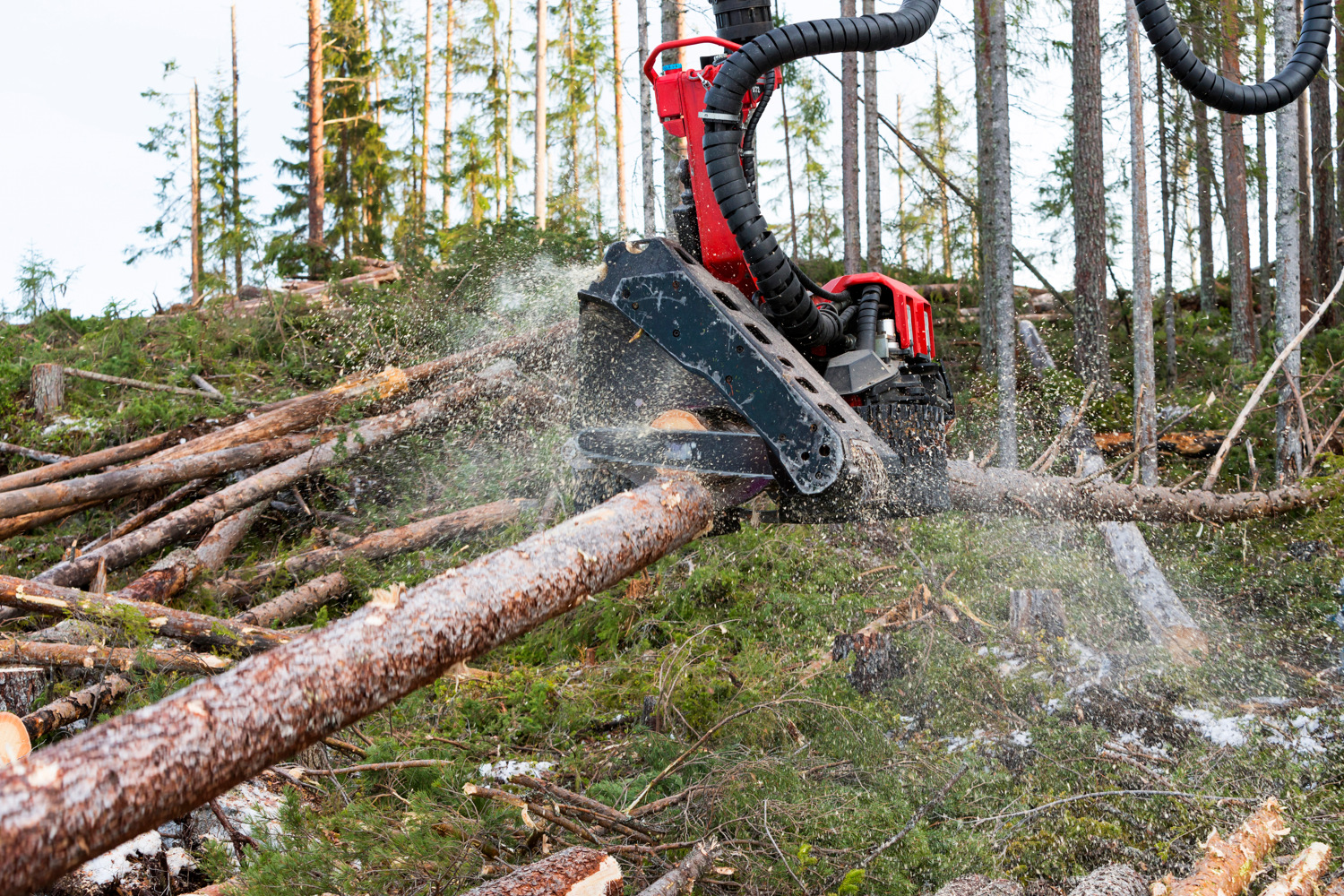

Tailored to your needs
Adapt to your working conditions with smart options like multi-tree handling, which boosts production capacity, or the robust measuring system featuring a contactless sensor for consistently accurate results. The optional Find End function resets the length measurement without cutting the stem, helping to minimise waste and preserve valuable timber.

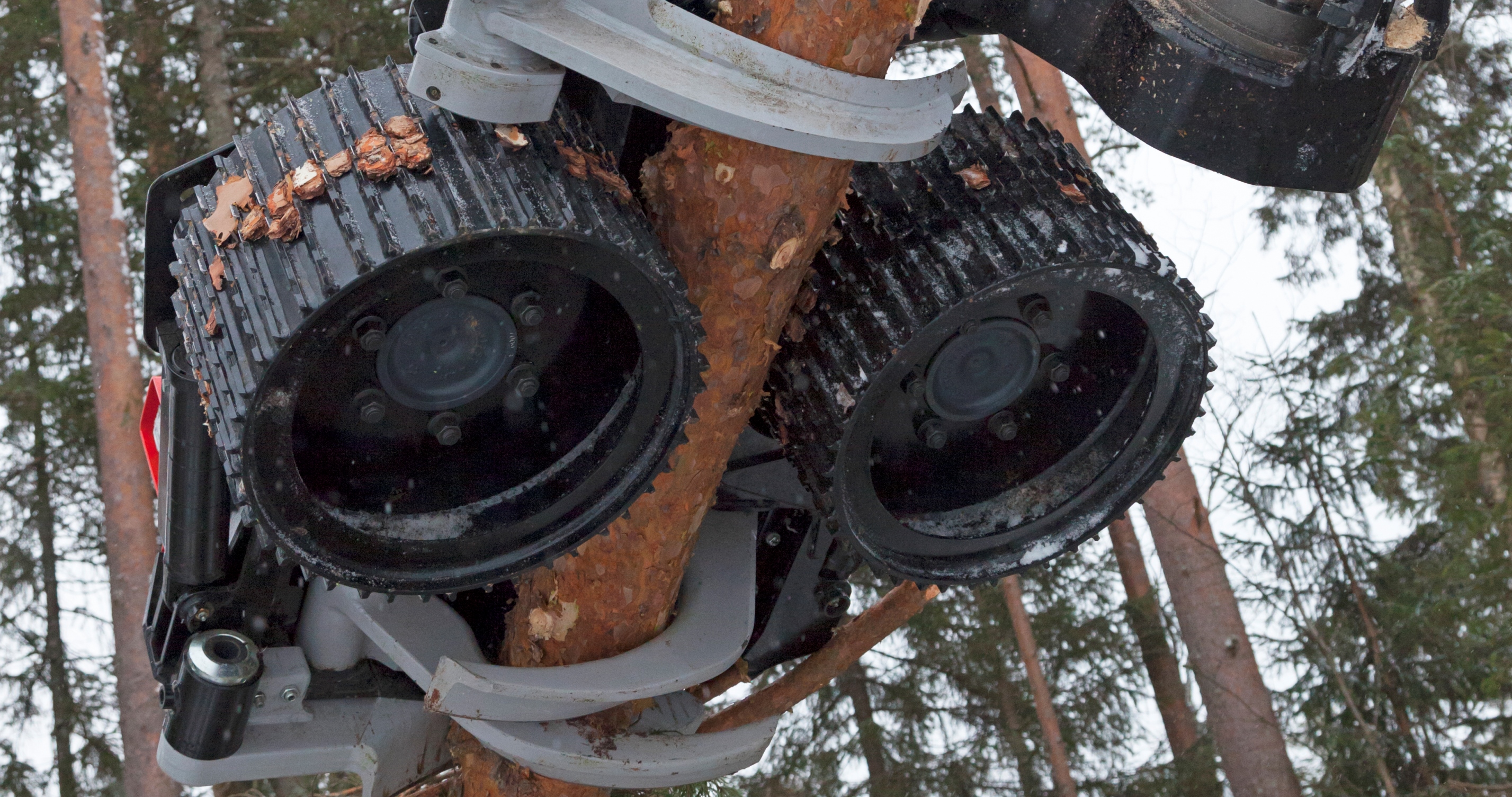

Smooth feeding and precise log control
The two-wheel feed ensures smooth and efficient feeding. With Flex Friction Control keeping the stem in the optimal feed position, the head delivers both low friction and great delimbing performance.

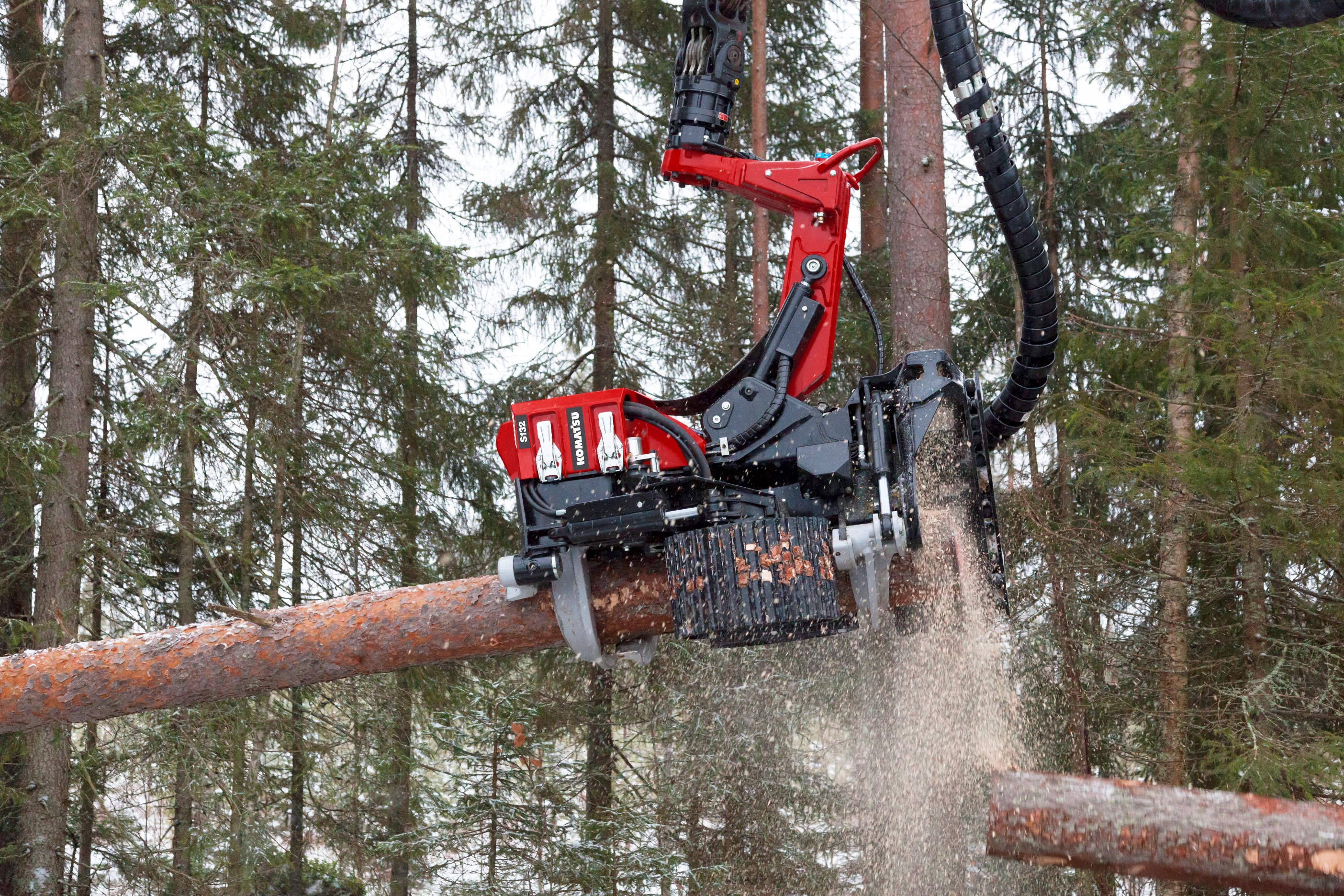

Efficient cutting with Constant Cut
The Constant Cut saw unit maintains a high and consistent chain speed throughout the cutting cycle. This prevents overspeeding while reducing the risk of cracks, resulting in reliable cutting and improved timber quality.

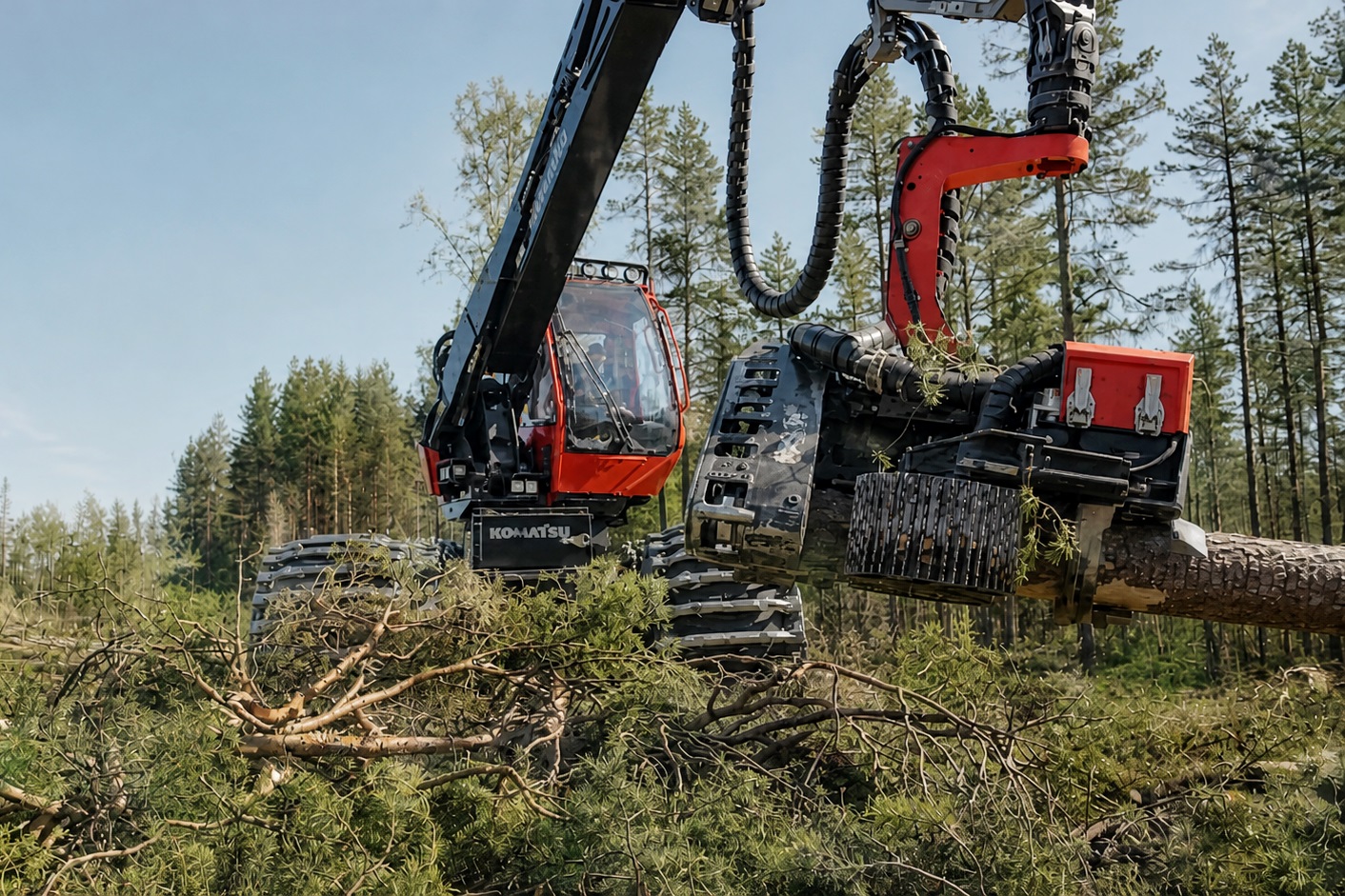

Easy to service
Designed with accessibility in mind, the S132 simplifies service and maintenance through well-placed service points. Automatic chain tensioning helps extend the lifespan of both bar and chain, reducing downtime and keeping performance high.
Specifications
- Full specs
- Max width (in): 66.5
- Max width (mm): 1 689
- Height including rotator (mm): 2 142
- Height including rotator (in): 84.3
- Roller diameter (mm): 641
- Roller diameter (in): 25.2
- Roller opening, max (in): 20.9
- Roller opening, max (mm): 532
- Opening knives, lower (in): 24.6
- Opening knives, lower (mm): 625
- Opening knives, upper (in): 27.2
- Opening knives, upper (mm): 690
- Maximum delimbing diameter (in): 16.9
- Maximum delimbing diameter (mm): 428
- Weight (lbs): 3042
- Weight (kg): 1 380
- Feed speed (m/s): 0 - 4.8, 0 - 5
- Feed speed (ft/s): 0 - 15.7, 0 - 16.4
- Gross feed force (kN): 21, 26.1, 28.7
- Gross feed force (lbf): 4,720.9, 5,867.5 or 6,452
- Feed wheel type: Steel rollers
- Delimbing knives, number: 4
- Delimbing knives, opening (mm): 428
- Delimbing knives, opening (in): 16.85
- Bar (option)(in): 32.48
- Bar (option)(cm): 82.5
- Saw motor (in^3/rev): 7.5
- Saw motor (cm^3/rev): 19
- Fell/Cut diam. theor. max (mm): 710
- Fell/Cut diam. theor. max (in): 27.95
- Max hydraulic flow (L/min): 330
- Max hydraulic flow (gpm): 87.17
- Max hydraulic pressure (psi): 4061
- Max hydraulic pressure (MPa): 28
- Notes: Standard and extra equipment are market-dependent and vary between countries. The specification describes possible equipment, not that which is standard or optional. Stated weights are based on standard equipment. Specifications and designs are subject to change without notice.
