Excavators

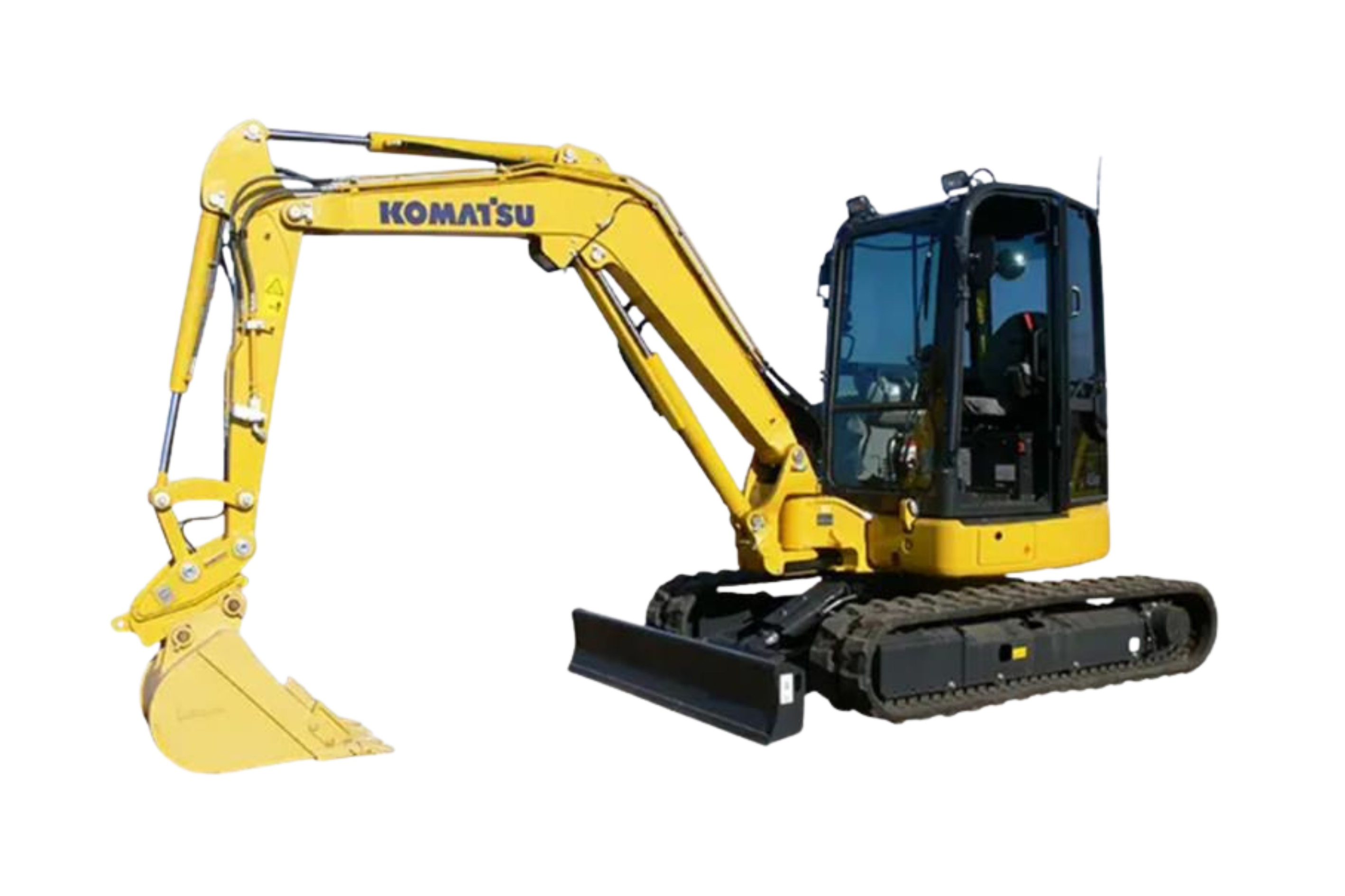

PC45MR-5
Small excavators
- Operating weight (kg) 4980
- Operating weight (lbs) 10978
- Bucket capacity (m^3) 0.14
- Bucket capacity (yd^3) 0.18
- Engine power (HP) 38
- Engine power (kW) 28.3
Now with a low-emission Tier 4 Final-compliant Komatsu engine, our 4.9 tonne PC45MR-5 is ideal for contractors, rental fleets, owner-operators, builders – or anyone who needs a powerful compact digger for confined conditions. It incorporates features of bigger Komatsu excavators, with key components designed and manufactured by Komatsu to work together in an integrated package. And it’s standard with our Komtrax remote monitoring and location system, backed by our NZ-wide service and support network.
Resources
Features and benefits
Komtrax
Through the web application, a variety of search parameters are available to quickly find information about specific machines based on key factors. Moreover, Komtrax finds out machines with problems from your fleet and shows you through an optimal interface.
Large vertical pin and steel bushing
A large vertical pin and steel bushing are used at the boom foot for improved durability. An abrasion-resistant steel bushing further improves service life.
Specifications
- Full specs
- HydrauMind Type: HydrauMind System
-
Main pump
- Pumps for: Boom, arm, bucket, and travel circuits
- Maximum flow (US gpm): 40.52
- Maximum flow (L/min): 153.3
-
Relief valve setting
- Travel: 2 x axial piston motors with parking brake
- Swing: 1 x axial piston motor with swing holding brake
- Implement circuits (psi): 3841.29
- Travel circuit (psi): 3839
- Swing circuit (psi): 3129
- Implement circuits (MPa): 26.48
- Implement circuits (kgf/cm^2): 270
- Swing circuit (kgf/cm^2): 220
- Swing circuit (MPa): 21.57
- Travel circuit (kgf/cm^2): 270
- Travel circuit (MPa): 26.5
-
Hydraulic cylinders
- Arm (Number of cylinders – bore x stroke x rod diameter)(mm): 1-80 x 649 x 50
- Arm (Number of cylinders – bore x stroke x rod diameter)(in): 3.15 x 25.55 x 1.97
- Maximum drawbar pull (kgf): 4280
- Parking brake: Mechanical disc brake
- Gradeability: 30 %
- Drive method: Fully hydrostatic
- Swing reduction: Planetary gear
- Swing circle lubrication: Grease-bathed
- Service brake: Hydraulic lock
- Holding brake/Swing lock: Mechanical disc brake
- Swing speed (rpm): 9
- Driven by: Hydrostatic
- Engine Model: Komatsu 4D88E-7
- Aspiration: Cooled EGR
- Piston displacement (L): 2.189
- Piston displacement (in^3): 133.52
- Fan drive method for radiator cooling: Mechanical
-
Horsepower
- SAEJ1995 - Gross (HP): 39
- SAEJ1995 - Gross (kW): 29.1
- ISO 9249 / SAE J1349 - Net (HP): 38
- ISO 9249 / SAE J1349 - Net (kW): 28.3
- Fuel tank (L): 65
- Engine (L): 8.1
- Engine (US gal): 2.14
- Coolant (L): 8.9
- Coolant (US gal): 2.35
- DEF tank (L): None
- DEF tank (US gal): None
- Hydraulic tank (US gal): 14.53
- Hydraulic tank (L): 55
- Center frame: X-frame leg
- Track frame: Box-section
- Track adjuster: Hydraulic
- Number of shoes (each side): 39
- Number of carrier rollers (each side): 1
- Number of track rollers (each side): 4
- Pilot circuit (kgf/cm^3): 32
Support you can count on
Tier 4 Engine KDPF Regeneration
As the technology of diesel engines has progressed from Tier 3 to Tier 4 Final, design aspects of the engines have been fine-tuned to comply with regulations to cover regulated diesel engine exhaust pollutants.
The result is that these new diesel engines are cleaner than ever before, and in many cases more fuel efficient too. Along with this comes the need to properly manage and maintain these new generation of machines to make sure that operating costs are minimised.
