Excavators

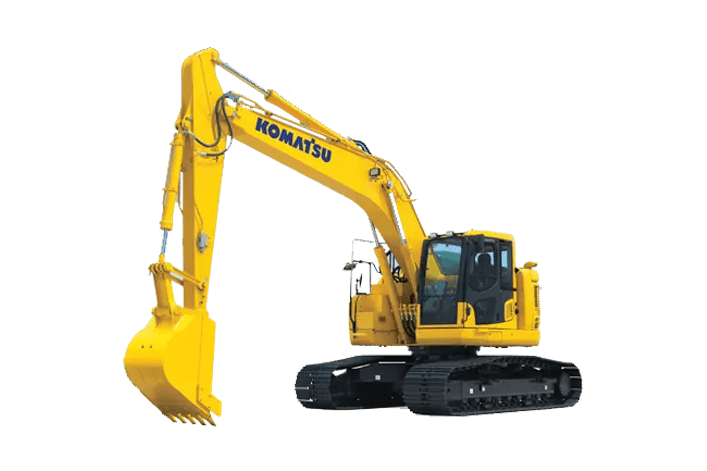

PC228USLC-11
Mid-size excavators
- Engine power (HP) 165
- Engine power (kW) 123
- Bucket capacity (m^3) 0.97
- Bucket capacity (yd^3) 1.27
- Operating weight (kg) 24120
- Operating weight (lbs) 53185
When you need big-machine productivity and plenty of excavating power in confined spaces or busy urban areas, our PC228US/LC-11 excavator – now powered by a Komatsu low emission Tier 4-Compliant engine – is an ideal solution. The PC228US-11 is also available with blade. As with all our construction excavators, key components are designed and manufactured by Komatsu to work together in an integrated package. And it comes standard with our Komtrax remote monitoring and location system, backed by our NZ-wide service and support network.
Resources
Features and benefits

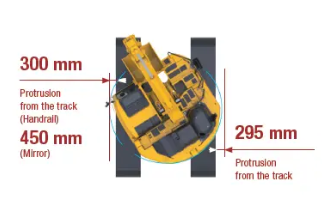

Short tail swing radius
The PC228US/LC-11 is an ideal machine for applications such as road work, underground utilities or other applications where a conventional excavator will not fit. The contoured cab design and convex sliding door allow the cab to swing within the same radius as the counterweight. Trucks can be positioned closer to the machine when working within one lane of traffic, improving operator confidence and job efficiency.

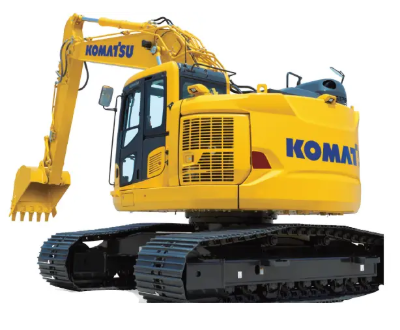

Fuel consumption reduced
The PC228US/LC-11's new tier 4 final engine along with enhancements in the hydraulic system considerably decreases fuel consumption. Fuel consumption reduced by 4% compared to the older model.

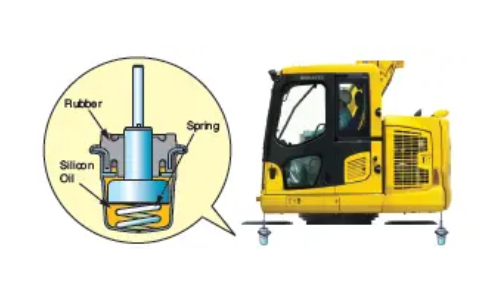

Low vibration with viscous cab mounts
The PC228US/LC-11 uses viscous mounts for the cab that incorporate a longer stroke and the addition of a spring. The cab damper mounting combined with a high rigidity deck reduces vibration at the operator’s seat.
Specifications
- Full specs
- Drive method: Fully hydrostatic
- Swing reduction: Planetary gear
- Swing circle lubrication: Grease-bathed
- Service brake: Hydraulic lock
- Holding brake/Swing lock: Mechanical disc brake
- Swing speed (rpm): 11
- Driven by: Hydraulic motor
-
Main pump
- Pumps for: Boom, arm, bucket, swing, and travel circuits
- Maximum flow (L/min): 490
- Maximum flow (US gpm): 129.44
-
Relief valve setting
- Travel: 2 x axial piston motor with parking brake
- Swing: 1 x axial piston motor with swing holding brake
- Implement circuits (psi): 5404.85
- Travel circuit (psi): 5405
- Swing circuit (psi): 4252
- Implement circuits (MPa): 37.27
- Implement circuits (kgf/cm^2): 380
- Swing circuit (kgf/cm^2): 299
- Swing circuit (MPa): 28.9
- Travel circuit (kgf/cm^2): 380
- Travel circuit (MPa): 37.3
-
Hydraulic cylinders
- Arm (Number of cylinders – bore x stroke x rod diameter)(mm): 1-135 x 1490 x 95
- Arm (Number of cylinders – bore x stroke x rod diameter)(in): 5.31 x 58.66 x 3.74
- Engine Model: Komatsu SAA6D107E-3
- Aspiration: Turbocharged, aftercooled
- Piston displacement (in^3): 408.24
- Piston displacement (L): 6.69
-
Horsepower
- SAEJ1995 - Gross (HP): 165
- SAEJ1995 - Gross (kW): 123
- ISO 9249 / SAE J1349 - Net (HP): 165
- ISO 9249 / SAE J1349 - Net (kW): 123
- Coolant (US gal): 7.48
- Engine (US gal): 6.1
- Swing drive (US gal): 1.72
- Swing drive (L): 6.5
- Hydraulic tank (L): 126
- Hydraulic tank (US gal): 33.28
- DEF tank (US gal): 3.43
- Fuel tank (L): 290
- Coolant (L): 28.3
- Engine (L): 23.1
- DEF tank (L): 13
- Maximum drawbar pull (kgf): 20600
- Parking brake: Mechanical disc brake
- Gradeability: 70 %
- Center frame: X-frame leg
- Track frame: Box-section
- Track adjuster: Hydraulic
- Number of shoes (each side): 49
- Number of carrier rollers (each side): 2
- Number of track rollers (each side): 9
- Bucket crowd force - ISO (kgf): 15200
- Arm crowd force - ISO (kgf): 11000
- Swing radius (in): 90.9
- Maximum reach at ground level (mm): 9700
- Digging depth - maximum (mm): 6620
- Maximum reach at ground level (in): 381.9
- Arm size (m) and type: 2.9 standard
- Swing radius (mm): 2310
- Boom size (m) and type: 5.7 standard
- Pilot circuit (kgf/cm^3): 33
Support you can count on
Tier 4 Engine KDPF Regeneration
As the technology of diesel engines has progressed from Tier 3 to Tier 4 Final, design aspects of the engines have been fine-tuned to comply with regulations to cover regulated diesel engine exhaust pollutants.
The result is that these new diesel engines are cleaner than ever before, and in many cases more fuel efficient too. Along with this comes the need to properly manage and maintain these new generation of machines to make sure that operating costs are minimised.
