Excavators
PC170LC-11
Mid-size excavators
- Engine power (HP) 121
- Engine power (kW) 90
- Bucket capacity (m^3) 0.77
- Bucket capacity (yd^3) 1.01
- Operating weight (kg) 17790
- Operating weight (lbs) 39234
Powered by Tier 4 Final engines, the PC170LC-11 is ideal for a wide range of earthmoving, excavating and general construction applications. As with all our construction excavators, key components are designed and manufactured by Komatsu to work together in an integrated package. And it comes standard with our Komtrax remote monitoring and location system, backed by our NZ-wide service and support network.
Resources
Features and benefits

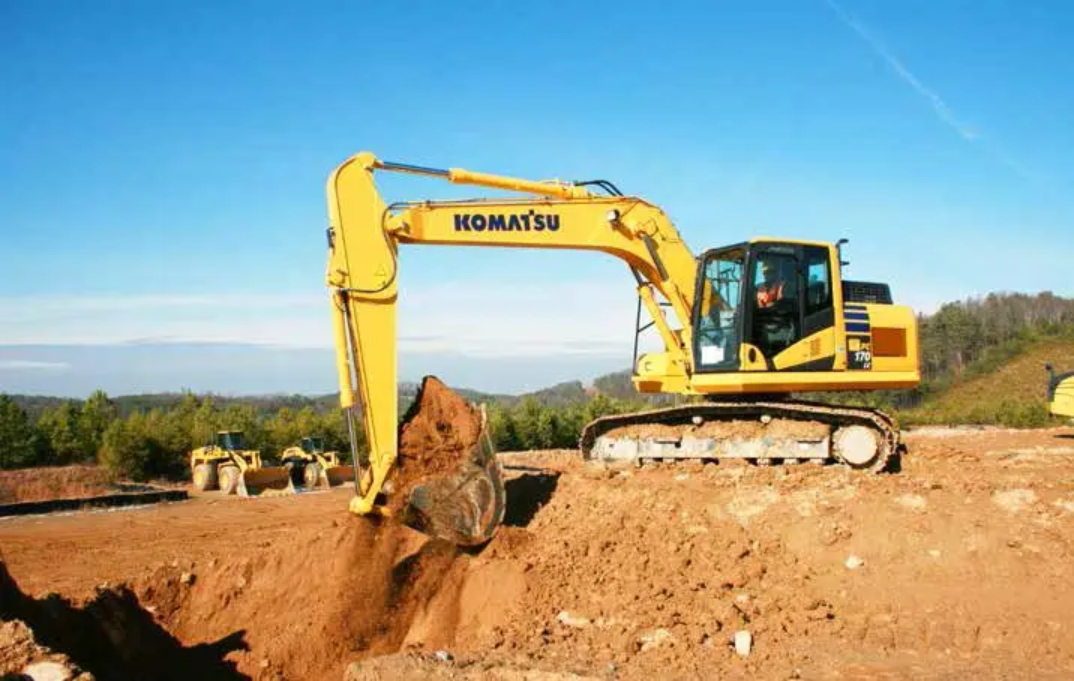

Tier 4 Final Engine
The Komatsu SAA4D107E-3 engine is EPA Tier 4 Final emissions certified and provides exceptional performance and efficiency. Based on Komatsu proprietary technologies developed over many years, this new diesel engine reduces nitrogen oxides (NOx) by more than 80% when compared to Tier 4 interim levels.
Auto idle shutdown
Komatsu auto idle shutdown automatically shuts the engine down after idling for a set period of time to reduce unnecessary fuel consumption and exhaust emissions.

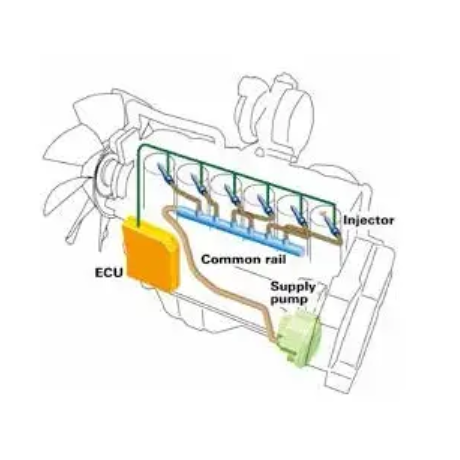

Heavy-Duty High-Pressure Common Rail (HPCR) Fuel Injection System
The system is designed to achieve an optimal injection of high-pressure fuel by means of computerised control, providing close to complete combustion to reduce PM emissions.
Specifications
- Full specs
- Drive method: Fully hydrostatic
- Holding brake/Swing lock: Mechanical disc brake
- Service brake: Hydraulic lock
- Swing circle lubrication: Grease-bathed
- Swing reduction: Planetary gear
- Swing speed (rpm): 12
- Driven by: Hydraulic motor
- Number of selectable working modes: 6
- HydrauMind Type: HydrauMind (Hydraulic Mechanical Intelligence)
-
Main pump
- Maximum flow (L/min): 312
- Maximum flow (US gpm): 82.44
- Pumps for: Boom, arm, bucket, swing, and travel circuits
-
Relief valve setting
- Implement circuits (kgf/cm^2): 380
- Implement circuits (MPa): 37.27
- Implement circuits (psi): 5404.85
- Travel circuit (psi): 5405
- Swing circuit (psi): 4196
- Swing: 1 x axial piston motor with swing holding brake
- Swing circuit (kgf/cm^2): 295
- Swing circuit (MPa): 28.9
- Travel: 2 x piston motors with parking brake
- Travel circuit (MPa): 37.3
- Travel circuit (kgf/cm^2): 380
-
Hydraulic cylinders
- Arm (Number of cylinders – bore x stroke x rod diameter)(mm): 1-120 x 1342 x 85
- Arm (Number of cylinders – bore x stroke x rod diameter)(in): 4.72 x 52.84 x 3.35
- Aspiration: Variable geometry turbocharged, aftercooled, cooled EGR
- Engine model: Komatsu SAA4D107E-3* Tier 4 Final
- Fan drive method for radiator cooling: Mechanical with viscous fan clutch
- Piston displacement (in^3): 272.16
- Piston displacement (L): 4.46
-
Horsepower
- ISO 9249 / SAE J1349 - Net (HP): 121
- ISO 9249 / SAE J1349 - Net (kW): 90
- Fan at maximum speed - Net (HP): 114
- Fan at maximum speed - Net (kW): 85
- Hydraulic tank (L): 121
- Hydraulic tank (US gal): 31.97
- Swing drive (US gal): 1.19
- Swing drive (L): 4.5
- Engine (US gal): 4.76
- DEF tank (US gal): 7.82
- Radiator (L): 27.3
- Radiator (US gal): 7.21
- Fuel tank (L): 300
- Engine (L): 18
- DEF tank (L): 29.6
- Gradeability: 70%
- Parking brake: Mechanical disc brake
- Maximum drawbar pull (kgf): 15950
- Center frame: X-frame leg
- Number of carrier rollers (each side): 2
- Number of shoes (each side): 44
- Number of track rollers (each side): 7
- Track frame: Box-section
- Track adjuster: Hydraulic
- Swing radius (in): 100.2
- Maximum reach at ground level (mm): 8800
- Arm crowd force - ISO (kN): 80.4
- Digging depth - maximum (mm): 5960
- Maximum reach at ground level (in): 346.5
- Bucket crowd force - ISO (kN): 123
- Arm size (m) and type: 2.6 standard
- Swing radius (mm): 2545
- Boom size (m) and type: 5.15 standard
- Overall track width (mm): 2490
- Overall track width (in): 98
- Pilot circuit (kgf/cm^3): 33
Support you can count on
Tier 4 Engine KDPF Regeneration
As the technology of diesel engines has progressed from Tier 3 to Tier 4 Final, design aspects of the engines have been fine-tuned to comply with regulations to cover regulated diesel engine exhaust pollutants.
The result is that these new diesel engines are cleaner than ever before, and in many cases more fuel efficient too. Along with this comes the need to properly manage and maintain these new generation of machines to make sure that operating costs are minimised.
