Excavators

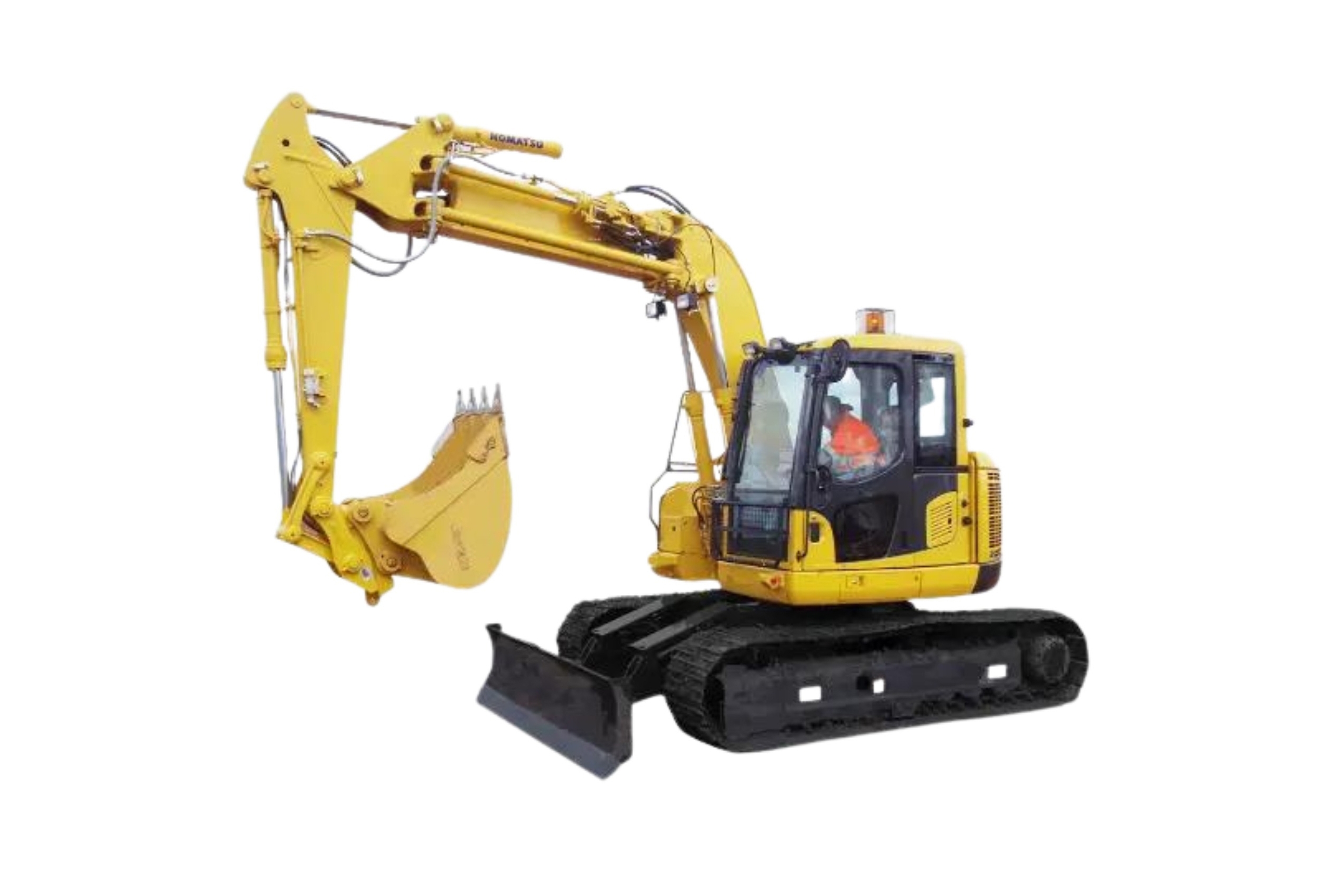

PC138US-8OS
Mid-size excavators
- Engine power (HP) 92
- Engine power (kW) 68.4
- Bucket capacity (m^3) 0.64
- Bucket capacity (yd^3) 0.84
- Operating weight (kg) 15170
- Operating weight (lbs) 33457
When you need even extra flexibility in confined spaces, such as digging alongside buildings or walls, our PC138US-8 excavator with offset boom is the perfect choice. As with all our construction excavators, key components are designed and manufactured by Komatsu to work together in an integrated package. And it comes standard with our Komtrax remote monitoring and location system, backed by our NZ-wide service and support network.
Resources
Short tail swing radius
Short tail swing radius of the PC138US-8OS allows the machine to work in more confined areas than a conventional machine.
Specifications
- Full specs
- Drive method: Fully hydrostatic
- Swing reduction: Planetary gear
- Swing circle lubrication: Grease-bathed
- Service brake: Hydraulic lock
- Holding brake/Swing lock: Wet, multiple-disc brake
- Swing speed (rpm): 11
- Swing torque (kg-m): 3357
- Swing torque (ft-lbs): 24270.7
- HydrauMind Type: HydrauMind System
-
Main pump
- Pumps for: Boom, arm, bucket, swing, and travel circuits
- Maximum flow (L/min): 242
- Maximum flow (US gpm): 63.92
-
Relief valve setting
- Travel: 2 x piston motor with parking brake
- Swing: 1 x piston motor with swing holding brake
- Implement circuits (psi): 5050.27
- Travel circuit (psi): 5050
- Swing circuit (psi): 3925
- Implement circuits (MPa): 34.81
- Implement circuits (kgf/cm^2): 355
- Swing circuit (kgf/cm^2): 276
- Swing circuit (MPa): 27
- Travel circuit (kgf/cm^2): 355
- Travel circuit (MPa): 34.8
- Engine Model: Komatsu SAA4D95LE-5
- Aspiration: Variable flow, turbocharged, air-to-air aftercooled
- Piston displacement (in^3): 198.93
- Piston displacement (L): 3.26
-
Horsepower
- SAEJ1995 - Gross (HP): 97
- SAEJ1995 - Gross (kW): 72
- ISO 9249 / SAE J1349 - Net (HP): 91.19
- ISO 9249 / SAE J1349 - Net (kW): 68
- Coolant (US gal): 3.28
- Engine (US gal): 2.91
- Swing drive (US gal): 0.66
- Swing drive (L): 2.5
- Hydraulic tank (L): 69
- Hydraulic tank (US gal): 18.23
- Fuel tank (L): 195
- Coolant (L): 12.4
- Engine (L): 11
- Maximum drawbar pull (kgf): 12500
- Center frame: X-frame leg
- Track frame: Box-bathed
- Track adjuster: Combined Spring & Hydraulic roller
- Number of shoes (each side): 43
- Number of carrier rollers (each side): 1
- Number of track rollers (each side): 7
- Arm crowd force - ISO (kgf): 7300
- Swing radius (in): 58.3
- Maximum reach at ground level (mm): 7315
- Bucket digging force - ISO (kgf): 9000
- Digging depth - maximum (mm): 4820
- Maximum reach at ground level (in): 288
- Arm size (m) and type: 2.1 standard
- Swing radius (mm): 1480
- Boom size (m) and type: 4.29 standard
- Overall track width (mm): 2490
- Overall track width (in): 98
- Pilot circuit (kgf/cm^3): 33
