Excavators

PC450LC-8SE

Large excavators

  • Engine power (HP) 345
  • Engine power (kW) 257
  • Bucket capacity (m^3) 2.5
  • Bucket capacity (yd^3) 3.27
  • Operating weight (kg) 46880
  • Operating weight (lbs) 103382

Purchase options

Request a quote

Our 46.9 tonne PC450LC-8 Super Earthmover is designed for heavy duty construction and quarrying applications, delivering high productivity and lower owning and operating costs. As with all our construction excavators, key components are designed and manufactured by Komatsu to work together in an integrated package. And it comes standard with our Komtrax remote monitoring and location system, backed by our NZ-wide service and support network

    Resources

    Increased productivity and durability

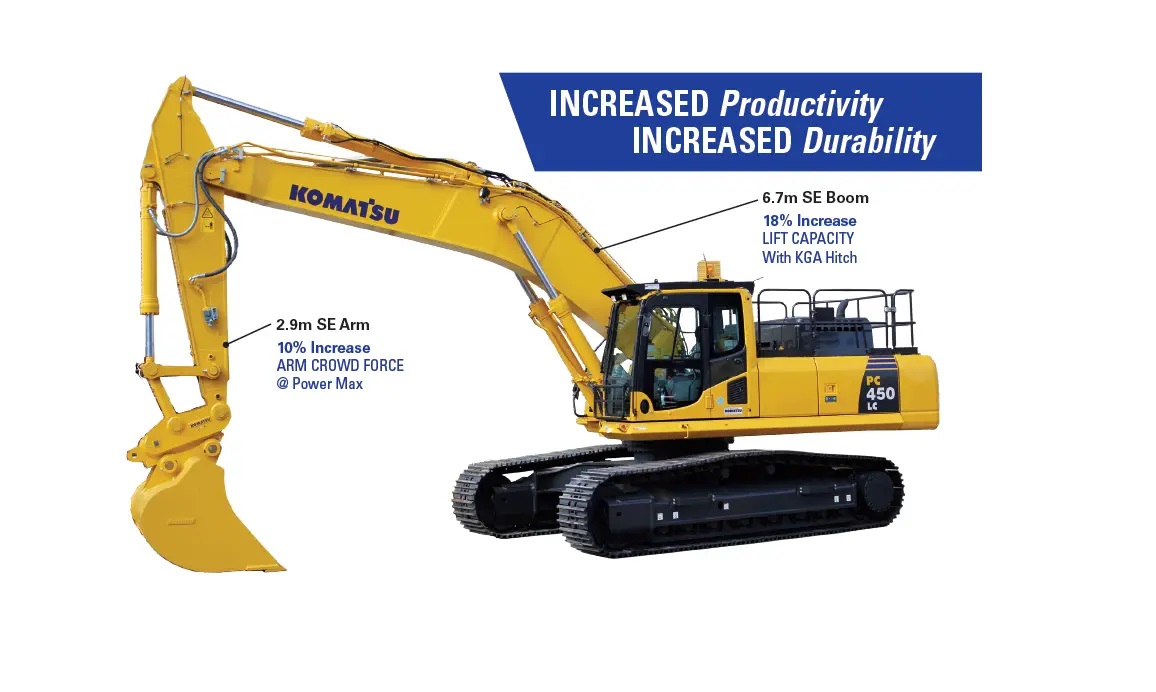

    The PC450LC-8 Super Earthmover is equipped with a strengthened boom and arm that provides increased productivity with a 18% increase in lift capacity and 10% increase in arm crowd force as well as improved durability in heavy duty construction and quarry applications.

    Increased productivity and durability

    Specifications

    Metric Imperial (US)
    Expand all

    • Drive method: Fully hydrostatic
    • Swing reduction: Planetary gear
    • Swing circle lubrication: Grease-bathed
    • Service brake: Hydraulic lock
    • Holding brake/Swing lock: Mechanical disc brake
    • Swing speed (rpm): 9.1
    • Driven by: Hydrostatic

    • HydrauMind Type: HydrauMind System

    • Hydraulic cylinders

      • Arm (Number of cylinders – bore x stroke x rod diameter)(in): 7.28 x 78.15 x 5.12
      • Arm (Number of cylinders – bore x stroke x rod diameter)(mm): 1-185 x 1985 x 130

    • Main pump

      • Pumps for: Boom, arm, bucket, swing, and travel circuits
      • Maximum flow (US gpm): 182.28
      • Maximum flow (L/min): 690

    • Relief valve setting

      • Travel: 2 x axial piston motor with parking brake
      • Swing: 1 x axial piston motor with swing holding brake
      • Implement circuits (psi): 5404.85
      • Travel circuit (psi): 5405
      • Implement circuits (MPa): 37.27
      • Swing circuit (psi): 4196
      • Implement circuits (kgf/cm^2): 380
      • Swing circuit (kgf/cm^2): 295
      • Swing circuit (MPa): 28.94
      • Travel circuit (kgf/cm^2): 380
      • Travel circuit (MPa): 37.3

    • Coolant (US gal): 9.51
    • Engine (US gal): 9.77
    • Swing drive (L): 20
    • Swing drive (US gal): 5.28
    • Hydraulic tank (L): 248
    • Hydraulic tank (US gal): 65.52
    • DEF tank (US gal): None
    • Engine (L): 37
    • DEF tank (L): None
    • Fuel tank (L): 650
    • Coolant (L): 36

    • Engine Model: Komatsu SAA6D125E-5
    • Aspiration: Turbocharged, aftercooled, cooled EGR
    • Piston displacement (L): 11.04
    • Piston displacement (in^3): 673.69
    • Fan drive method for radiator cooling: Mechanical

    • Horsepower

      • SAEJ1995 - Gross (kW): 270
      • SAEJ1995 - Gross (HP): 362
      • ISO 9249 / SAE J1349 - Net (kW): 257
      • ISO 9249 / SAE J1349 - Net (HP): 345

    • Maximum drawbar pull (kgf): 33700
    • Parking brake: Mechanical disc brake
    • Gradeability: 70 %

    • Center frame: X-frame leg
    • Track frame: Box-section
    • Track adjuster: Hydraulic
    • Number of shoes (each side): 49
    • Number of carrier rollers (each side): 2
    • Number of track rollers (each side): 8

    • Pilot circuit (kgf/cm^3): 33

    • Bucket crowd force - ISO (kgf): 28300
    • Swing radius (in): 143.5
    • Boom size (m) and type: 6.7 heavy duty
    • Maximum reach at ground level (mm): 10868
    • Digging depth - maximum (mm): 6902
    • Maximum reach at ground level (in): 427.8
    • Arm size (m) and type: 2.9 heavy duty
    • Arm crowd force - ISO (kgf): 26200
    • Swing radius (mm): 3645

    • Overall track width (in): 135
    • Overall track width (mm): 3430
