Electric rope shovels

4800XPC

  • Nominal payload (metric tons) 123
  • Nominal payload (short tons) 135
  • Dipper capacity (m^3) 66 - 70
  • Dipper capacity (yd^3) 86 - 92
  • Production (MTPH) 8 810 - 11 748
  • Production (TPH) 9,712 - 12,950

Purchase options

Request a quote

Built for tough environments, the 4800XPC ultra-class three-pass-loading-tool delivers consistent uptime and high cutting force. Engineered for increased digging power and faster cycle times, utilising the latest mining technology.

    Resources

    Features and benefits

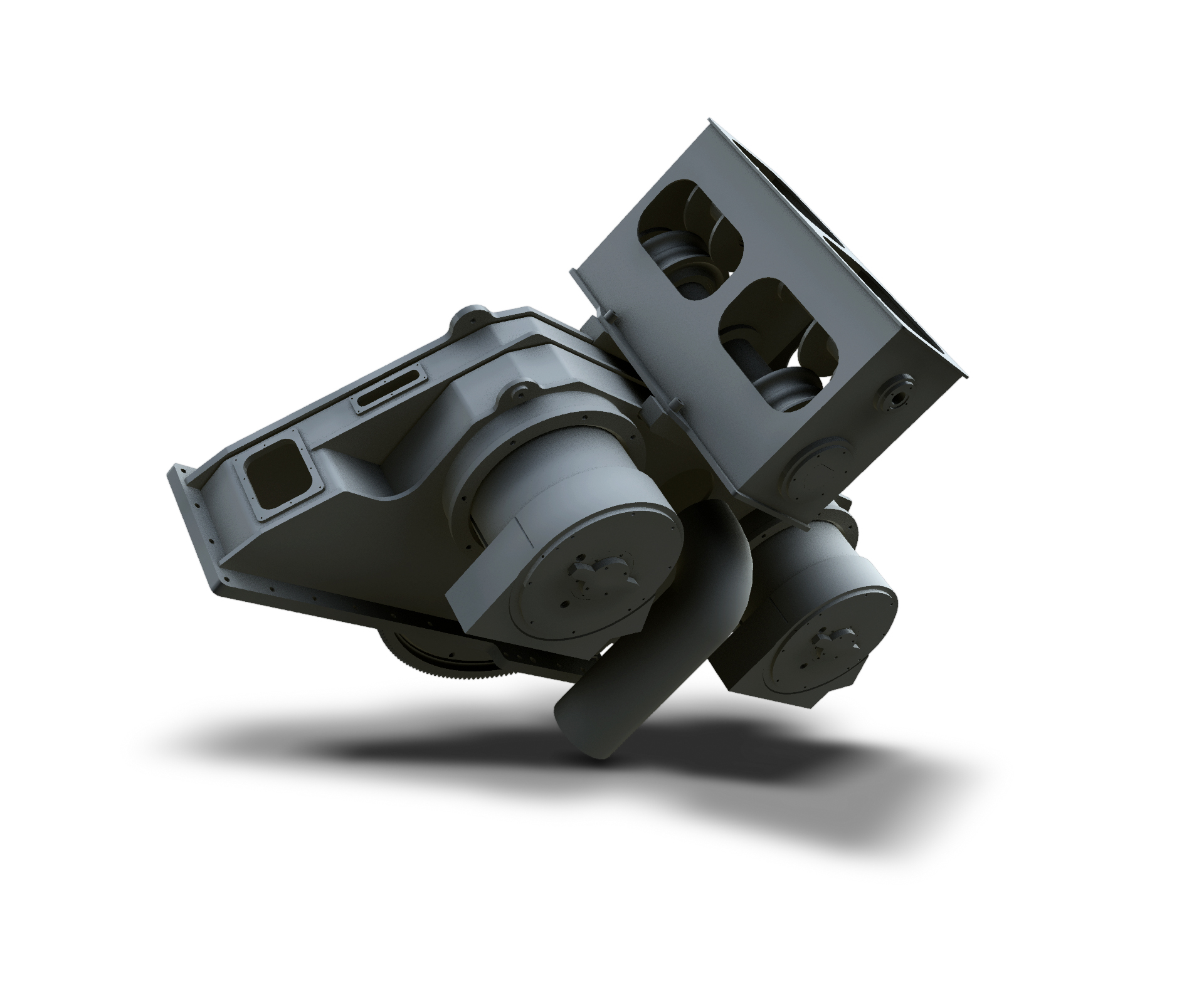

    Direct drive crowd

    Direct drive crowd

    The low inertia design of the responsive, dynamic crowd design system allows fine motion control by shovel operators, high crowd forces to assist with toe penetration, and reduced damage associated with abuse events.

    Protects tracks and undercarriage

    Protects tracks and undercarriage

    The P&H Track Shield helps protect your machine’s tracks and undercarriage from dipper strikes. It monitors dipper movement and position to help you predict imminent collisions and takes appropriate actions to mitigate damage to dipper or tracks.

    Latest dipper technology

    Latest dipper technology

    The dipper is one of the hardest working pieces on your shovel. The 4100/4800 features the latest in dipper technology: a low-maintenance latching system, optimal toe penetration and the ability to pass match shovels with trucks.


    Specifications

    Metric Imperial (US)
    Expand all

    • Nominal dipper capacity SAE 2:1 (m^3): 65.7 - 70.3
    • Nominal dipper capacity SAE 2:1 (yd^3): 85.93-91.95
    • Rated suspended load (st): 246.5
    • Rated suspended load (mt): 224
    • Optimum truck size (360 mt (400 st) truck shown) (st): 400
    • Optimum truck size (360 mt (400 st) truck shown) (mt): 360

    • Height of cut (ft): 62.01
    • Height of cut (m): 18.9
    • Radius of cut (ft): 78 ft. 7 in
    • Radius of cut (m): 24
    • Dumping height* door open (ft): 35.43
    • Dumping height* door open (m): 10.8
    • Maximum dump reach (furthest distance to center of truck) (m): 19.4
    • Maximum dump reach (furthest distance to center of truck) (ft): 63.65
    • Floor level radius (m): 16.2
    • Floor level radius (ft): 53.15
    • Tail swing radius (m): 9.9
    • Tail swing radius (ft): 32.48
    • Operator eye level (m): 10.1
    • Operator eye level (ft): 33.14

    • Supply transformer: (Minimum) 3 750 kVA
    • Minimum short circuit VA available at shovel: 30 MVA
    • Supply voltage note: *Voltage per customer requirements
