Electric rope shovels
4100XPC
- Nominal payload (metric tons) 99.8 - 108.9
- Nominal payload (short tons) 120
- Dipper capacity (m^3) 52.8 - 61.2
- Dipper capacity (yd^3) 69 - 82
- Production (MTPH) 7 834 - 10 444
- Production (TPH) 8,635 - 11,513
Purchase options
Request a quotePowerful cutting force, maximum load capacity and low-cost-per-ton loading — the P&H 4100XPC AC is engineered to deliver all three, with a unique twin-leg handle design and the latest in rope shovel dipper technology.
Resources
Features and benefits
Stability throughout the dig cycle
Built to handle hard materials with focus on penetrating the bank, the P&H twin leg handle focuses energy and cutting force by preventing the twisting or rotating of the dipper.
Controls designed to boost production
P&H Adaptive Controls is a suite of integrated control functions designed to build on the strengths of the P&H shovel. Engineered to increase production by up to 9% and eliminate boom jacking by up to 50% with no negative effects on shovel structures.

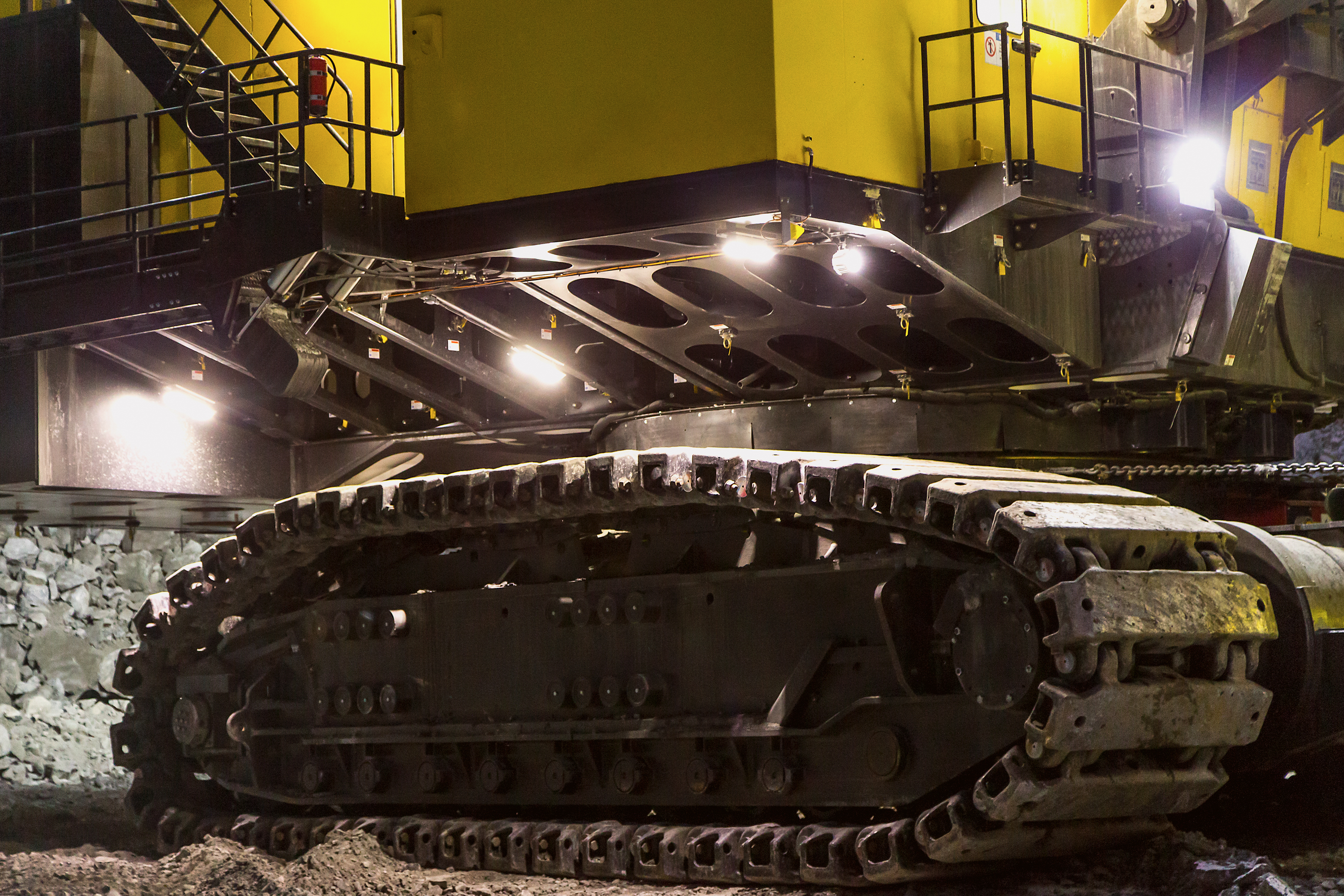

Delta style undercarriage
Minimise maintenance with a proven shoe and tumbler that requires minimal intervention and allows for operation in a loose track configuration.
Specifications
- Full specs
- Nominal dipper capacity SAE 2:1 (m^3): 58.3 - 67.6
- Nominal dipper capacity SAE 2:1 (yd^3): 76.27-88.43
- Rated suspended load (st): 215
- Rated suspended load (mt): 195
- Optimum truck size (360 mt (400 st) truck shown) (st): 240 - 400
- Optimum truck size (360 mt (400 st) truck shown) (mt): 218 - 363
- Height of cut (ft): 55.12
- Height of cut (m): 16.8
- Radius of cut (ft): 78 ft. 8 in
- Radius of cut (m): 23.9
- Dumping height* door open (ft): 31.17
- Dumping height* door open (m): 9.5
- Floor level radius (m): 16
- Floor level radius (ft): 52.49
- Tail swing radius (m): 9.8
- Tail swing radius (ft): 32.15
- Operator eye level (m): 10.1
- Operator eye level (ft): 33.14
- Supply transformer: (Minimum) 3 750 kVA
- Minimum short circuit VA available at shovel: 30 MVA
- Supply voltage note: *Voltage per customer requirements
Support you can count on
A family overview of Komatsu's electric rope shovels
The P&H shovel family brings to bear more than 100 years of expertise in designing and engineering tough, smart loading machines built to pursue the lowest cost/ton operation in the industry.
