Room and pillar

12CM15

Continuous miners

  • Maximum cutting height (in) 145 - 181
  • Maximum cutting height (mm) 3 685 - 4 600
  • Minimum cutting height (in) 55 - 85
  • Minimum cutting height (mm) 1 400 - 2 150
  • Total power (HP) 818 HP @ 60 Hz, 811 HP @ 50 Hz
  • Total power (kW) 610 kW @ 60 Hz, 605 kW @ 50 Hz

Heritage meets innovation for mid- to high-seam productivity

The 12CM15 continuous miner is best suited for mid- to high-seam, narrow-entry applications. Solid-head cutting head system and 762-mm (30-in) conveyor width.

  • Exceptional availability
  • Outstanding production

Features and benefits

High seam mining

High seam mining

The 12CM continuous miners are designed specifically for high seam mining up to 4.6 meters (181 in).

Exceptional productivity

Exceptional productivity

Using the latest technologies, this machine is designed to provide excellent productivity in rigorous conditions.

Engineered for reliability

Engineered for reliability

Designed to leverage 40 years of continuous mining experience, providing high levels of reliability.


Specifications

Metric Imperial (US)
Expand all

  • Cutter head design: Solid head
  • Cutter head diameter (in): 44
  • Cutter head diameter (mm): 1 120
  • Weight (lbs): 135,000
  • Weight (kg): 61 235
  • Ground pressure (kPa): 200
  • Ground pressure (psi): 29
  • Ground clearance (in): 12
  • Ground clearance (mm): 305
  • Conveyor width (in): 30
  • Conveyor width (mm): 760
  • Tram speed (m/min): First - 4.6, Second - 9.1, Third - 19.8, Third (optional, turbo) - 25.9
  • Tram speed (ft/min): First - 15, Second - 30, Third - 65, Third (optional, turbo) - 85
  • Machine input voltage: 950 V @ 60 Hz, 950 or 1050 V @ 50 Hz
  • Dust collector (kW): 22 or 30 kW @ 60 Hz, 19 or 26 kW @ 50 Hz
  • Dust collector (HP): 30 or 40 HP @ 60 Hz, 25 or 35 HP @ 50 Hz
  • Cutter (HP): 235 HP @ 60 Hz, 228 HP @ 50 Hz
  • Cutter (kW): 175 kW @ 60 Hz, 170 kW @ 50 Hz
  • Pump (HP): 54 HP @ 60 Hz, 74 HP @ 50 Hz
  • Pump (kW): 40 kW @ 60 Hz, 55 kW @ 50 Hz
  • Gathering head (kW): 50 kW x 2 @ 60 Hz, 45 kW x 2 @ 50 Hz
  • Gathering head (HP): 67 HP x 2 @ 60 Hz, 60 HP x 2 @ 50 Hz
  • Traction (HP): 80 HP x 2
  • Traction (kW): 60 kW x 2

Technology that works as hard as you do

Select continent

Smart Solutions

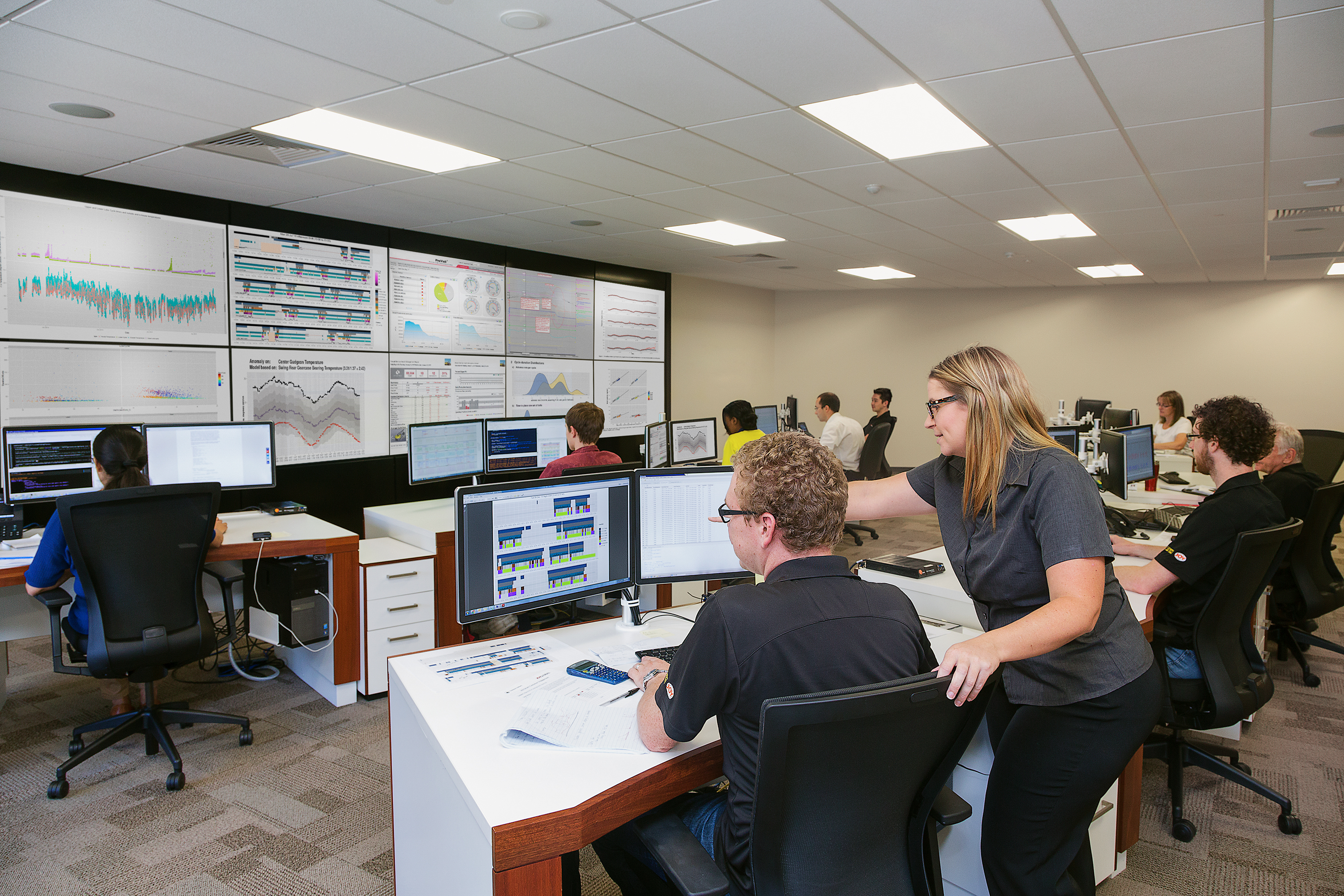

We help solve our customers’ toughest challenges using data-driven intelligence, collaboration and service execution. Our goal is to help reduce costs and increase productivity to help our customers achieve their operating and financial goals.

technology-image

The electronic heart of our continuous miners combines operator assistance tools, automated sequences, advanced diagnostics, machine performance monitoring and more to help you optimize your operation.

OptiDrive AC

Patented Joy OptiDrive AC system integrates software with the electronic and mechanical systems to provide a durable, maneuverable machine.

technology-image
