Feeder breaker

SFB-40

  • Pick force 1 557 kN 350,000 lbf.
  • Weight 70 - 80 tonnes 77 - 89 tons
  • Throughput Up to 3 000 MTPH Up to 3,307 TPH
View all specs
Request a quote Find a service location
Download brochure

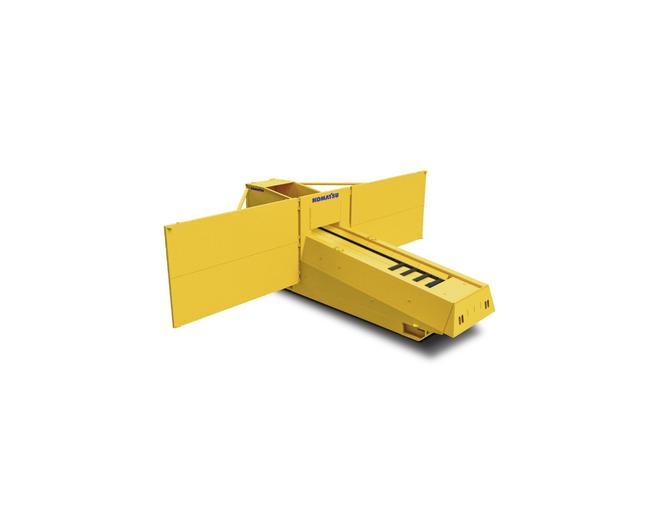

  • Komatsu SFB-40 crushing surface feeder breaker in white background

Single-source crushing and conveying

For streamlined operation, feeder breakers combine the receiving, sizing and conveying of mineral material into a single unit. For additional efficiency, each model features a specially designed surge hopper, helping trucks and other haulage equipment to discharge material at their maximum rate.

  •

Features and benefits

Komatsu SFB-32 surface feeder breaker loaded by two wheel loaders

Low profile allows flexibility

You have more loading options with a low horizontal profile feeder breaker ― most haulage equipment can discharge directly into the feeder hopper. If you use trucks, the ramp and foundation can be lower and more economical.
surface feeder breaker_SFB29_literature link_FB14753_FeederBreaker_Cutaway.psd

Conveying and crushing in one unit

Simplify your operation with a feeder breaker that combines receiving, feeding and sizing into a single unit.
GPL9914.psd

Managed output

Get the correct material output size for your operation from breaker picks and pick pattern designed for your operation and conveyor flights.
Komatsu SFB-32 surface feeder breaker

Long-life, low-maintenance conveyor chain

To keep the feeder breaker running, the conveyor uses a high strength engineered chain with hardened link pins.
GPL12239_Conveyor Drive Exploded.psd

Choose Electro-mechanical or hydraulic conveyor drive

Depending on the needs of your site, choose from a electro-mechanical or hydraulic drive.
GPL10899.psd

Mobility options to match your operation

All feeder breakers can be fitted with skids, wheels or self-propelled crawler tracks – so you can get exactly the configuration that meets your operation.
GPL12238_Chain & Flights.psd

Hydraulic conveyor chain tensioning system

Yes, chain tensioning can improve your cycle and uptimes. More accurate tensioning can increase performance and component life. Adjusting take-up without shims or removing covers reduces adjustment time from two hours to two minutes.* *Based on internal testing
GPL9910.psd

Surge capacity control for no waiting

Our unique hopper design helps haulage equipment to discharge material at the maximum rate — eliminating the need for a loader to wait and meter. This can improve cycle times and productivity
SFB-32 surface feeder breaker in mine site

Reduced fines, increased consistency

You can move a variety of material consistencies — wet, dry, sticky or a combination — through a single piece of equipment, as feeder breakers break, instead of crush, materials, reducing fines.

Specifications for SFB-40

Close all Expand all
US system Metric
Typical Applications*

Harder Limestone, Phosphate Rock

*Larger Surface Feeder breakers are often used to crush softer minerals due to required capacity or feed size.

Harder Limestone, Phosphate Rock

*Larger Surface Feeder breakers are often used to crush softer minerals due to required capacity or feed size.
Capacity**
Up to 3 000 MTPH

**The rated capacity, maximum mineral compressive strength, and feed size of a Feeder breaker are interdependant.

Up to 3,307 TPH

**The rated capacity, maximum mineral compressive strength, and feed size of a Feeder breaker are interdependant.
Machine Weight
70 - 80 tonnes
77 - 89 tons
Chain Pitch
139.7 mm
5.5 in
Mineral Hardness

Medium

Medium
Maximum Feed Size**

1 200 mm

**The rated capacity, maximum mineral compressive strength, and feed size of a Feeder breaker are interdependant.

47.2 in

**The rated capacity, maximum mineral compressive strength, and feed size of a Feeder breaker are interdependant.

Support you can count on

Komatsu service and rebuild programs

Service and rebuild programs that return your machines to their original specifications and performance.

Training programs

Our instructors offer operator, technical, service, and technology training and provide plenty of supporting materials for equipment operation, maintenance, and service.

Related products

Komatsu SFB-29 crushing surface feeder breaker in white background

SFB-29

  • Pick force 1 112 kN 250,000 lbf.
  • Weight 20 - 30 tonnes 22 - 33 tons
  • Throughput Up to 1 500 MTPH Up to 1,655 TPH
Surfce Feeder Breaker_SFB-29 UPSWEPT DISCHARGE.psd

SFB-31

  • Pick force 1 334 kN 300,000 lbf.
  • Weight 40 - 60 tonnes 44 - 66 tons
  • Throughput Up to 2 500 MTPH Up to 2,755 TPH
SFB38_GPL11039.psd

SFB-38

  • Pick force 1 779 kN 400,000 lbf.
  • Weight > 100 tonnes > 110 tons
  • Throughput Up to 4 000 MTPH Up to 4,410 TPH
