Sizer

MVT-II 800

  • Capacity Up to 2 500 MTPH Up to 2,760 TPH
  • Standard Output Product Sizes 50/100 mm 2/4 in
View all specs
Request a quote Find a service location
Download MVT-II sizer brochure Download sizer family brochure
  • Komatsu MVT-II 600 Crushing in white background

Reduce fines and abrasive wear

Secondary sizers use matched velocity technology (MVT) to minimize fines. Timed center-sizing rolls enable teeth to mesh together and control product size in three dimensions. Shaft assemblies include cast wear segments with replaceable teeth for extended life.

  • Picks designed with long-lasting wear segments
  • Designed to reduce costs
  • Picks allow a harder mineral to be broken with the same force, when compared to compressive crushers

Features and benefits

Komatsu Crushing Sizer MVTII in mining site

Designed to improve profitability

Reduces the number of crushing/dump stations required and can work with very large lump sizes to increase crushing ratios.
Komatsu Crushing Sizer MVTII in mining site

Compact footprint

Sizer can be installed where other crushers would not fit and at a potentially lower cost. Ideal for mobile or underground applications with a small machine envelope. Secondary sizers often installed between conveyor transfer points to reconcile material handling issues.
Komatsu Sizer Crusher iXRS 600 close up rock

Ability to crush wet, sticky materials

Meshing action of timed center sizing shaft scrubs wet sticky material off shafts. Unlike conventional side sizing designs that can only clean between rings of teeth on the shaft, these machines handle wet, sticky minerals more easily.
Crusher Sizer_HRX1000_M4A6562.psd

Engineered for low TCO

Minimize total cost of ownership with standard sizer accessories and controls, energy-efficient helical gear reducers, robust power transmission components, automatic lubrication system and extended life bimetallic wear components.
Crusher Sizer_HRX1000_M4A6894.psd

Minimize fines and wear

Minimize fines and wear with matched velocity technology (MVT) that aligns the tooth speed of the roll with the velocity of the mineral falling through the crusher.
GPL7912.psd

Control and optimize product size

Timed shafts and oil gap adjustment enables control of product size to minimize transfer issues to chutes, transfer points and conveyor belts.
Crusher_MVT II_KO_DSC_0715.psd

Variable speed drives

Use of variable speed drives to minimize energy use, component wear and improved performance.
Sizer_IXRS 600_Taea_IMG_0434.psd

Bearing temperature and vibration monitoring

Sizers use smart machine technology to monitor components to predict maintenance requirements. Get ahead of servicing needs and minimize downtime.
Sizer Crusher_iXRS 600_pickstif.psd

Replaceable teeth

Wear segments have replaceable teeth that allow customers to swap them out for renewed performance. Extends machine life and lowers costs compared to conventional “throwaway” designs.

Specifications for MVT-II 800

Close all Expand all
US system Metric
Applications
Bauxite, phosphate, shale, coal, limestone, nickel, gold, copper, coke, borax, polyhalite, and gypsum

Bauxite, phosphate, shale, coal, limestone, nickel, gold, copper, coke, borax, polyhalite, and gypsum

Capacity
Up to 2 500 MTPH
Up to 2,760 TPH
Mass
20 - 26 tonnes
22 - 28.7 tons
Roll spacing
800 mm
31.5 in
Feed size
≤ 350 mm
≤ 13.8 in
Standard output product sizes
50/100 mm
2/4 in
Roll length range
1 500 - 3 000 mm
59 - 118 in

Related products

sizer_MVT-II 600_literature link_GPL5942.psd

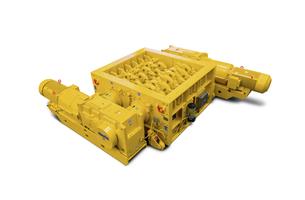

MVT-II 600
