Reclaim feeder

Stamler RF-5

  • Throughput Up to 3 629 MTPH Up to 4,000 TPH
  • Power rating range Up to 300 kW Up to 400 HP

Operational flexibility with low total cost of ownership

Promote productivity with a cost-effective feeder that is designed for ease of operation and maintenance. Engineered for flexibility — easy to relocate and fits multiple applications. Start production quickly with this standard unit — 25-30% faster delivery than engineered solutions.

  • 25-30% faster than customized OE alternatives
  • 15 years average life
  • Replacement parts costs as low as $0.01/ton

Features and benefits

Komatsu SFB29 crushing surface feeder breaker on mining site

Lower cost of ownership

Low installation costs and high availability of parts may help reduce downtime and reduce cost-per-ton for parts with a standard vs. custom reclaim feeder. Engineered for machine durability and long-term value.
Komatsu crushing reclaim feeder RF5 on mining site

Flexibility for your operation

The reclaim feeder can be easily relocated to areas of greatest need. Designed to handle a wide range of applications, including coal/coke, aggregates, industrial minerals and other wet, sticky materials.

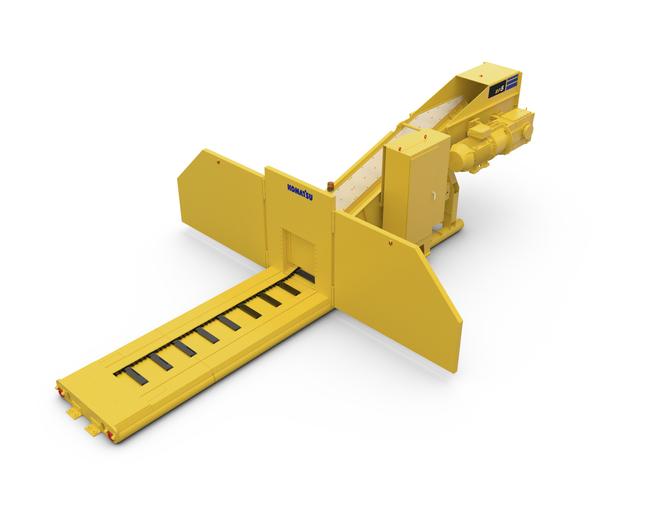

Komatsu Crushing Reclaim Feeder RF5 in white background

Designed for reliability

This unit offer an average in-service life of more than 15 years. Simple design with steel components for reliability to promote production. Accepts pre-engineered, bolt-on/plug-in options and upgrades, helping to enhance performance with minimal impact on OE lead time.
Komatsu crushing reclaim feeder RF5

Controllability and job site Integration

Connecting to the Stamler RF-5 from Machine Control Center (MCC) helps deliver efficient operational adjustment and production. Remote connectivity and the Komatsu-engineered onboard VFD integrates with greenfield operations and existing work sites.
Komatsu SFB32 crushing surface feeder breaker in mining site

Reduce downtime

Take manual component lubrication out of the maintenance equation with electric automatic lubrication. Set the component greasing schedule and let the electric automatic lubrication system do the work for you, even with the machine operating.

Specifications for RF-5

Close all Expand all
US system Metric
General


Machine Models

Dimension

5Q

5B

5E

Overall Width

2 304 mm

2 690 mm

3 543 mm

Conveyor Width

914 mm

1 270 mm

1 676 mm

Overall Length
(Baseline)

12 090 mm

Overall Height

3 183 mm

Intake Length
(Baseline)

5 000 mm

Discharge Height

1 700 mm

Mass
(Weight)

21 000 kg

23 000 kg

31 000 kg

Power Rating
(Baseline)

150 kW

300 kW



Machine Models

Dimension

5Q

5B

5E

Overall Width

7 ft. - 7 in

8 ft. - 10 in

11 ft. - 7 in

Conveyor Width

36 in

50 in

66 in

Overall Length
(Baseline)

39 ft. - 7 in

Overall Height

10 ft. - 5 in

Intake Length
(Baseline)

16 ft. - 5 in

Discharge Height

5 ft. - 6 in

Mass
(Weight)

46,200 lbf. 50,600 lbf. 68,200 lbf.

Power Rating
(Baseline)

200 HP

400 HP
