• Aisle navigation Inside 3 m up to 2.4 m bolting head Inside 10 ft. up to 8 ft. bolting head
  • Height with canopy in drill/tram position 2.8 m 9 ft. 4 in
  • Width overall 1.7 m 5 ft. 6 in

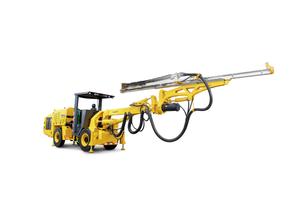

Excellent versatility in a small-class bolting platform

The innovative ZB21 offers convenience and productivity on a flexible common carrier platform. This solid workhorse allows completion of the bolting cycle from the operator enclosure to reduce human interaction with screens and bolts.

  • 100% of bolting cycle can be performed from the operator’s compartment
  • 2 of the major bolt types can be installed off a single carousel
  • 100% tunnel bolting coverage — walls, and backs

Features and benefits

Bolter_ZB21_Sudbury CAN_JH_221220_KO 4.psd

Innovative bolting head

Limited moving mechanical parts and a simple design for smooth operability. Reduced bolting cycle times and increased drifter uptime helps you keep production moving.
Bolter_ZB21_Sudbury CAN_JH_221220_KO 7.psd

Performance-boosting operator enclosure

Ergonomic, ISO-compliant and ROPS/FOPS-certified cabins or canopies. Optional enclosed cabin available with climate control.
Bolter_ZB21_Sudbury CAN_JH_221220_20.jpg

Productive drifters

Exceptional consumable life with technologies designed to enhance drilling productivity. Drifter model options include the Komatsu JZD08, JZD10 and JZD12, manufactured by Montabert.
Bolter_ZB21_Sudbury CAN_JH_221220_25.jpg

Screen handler and chemical injection system

Integrated screen handling allows full completion of bolting cycle from inside the operator enclosure. New chemical injection system provides superior alignment and accuracy and can help boost productivity with reduced bolting cycle times.
Bolter_ZB21_Sudbury CAN_JH_221220_10.jpg

Common carrier design between ZB21 and ZJ21

New platform offers universal controls, outer boom structure, driveline and operator enclosure configurations. Designed to give your mining operation versatility while simplifying maintenance and training.
Bolter_ZB21_Sudbury CAN_JH_221220_KO 5.psd

Superior coverage

Exceptional coverage for vertical and horizontal reach. Ideal for fitting into many smaller mine sections and can use a variety of bolt types: mechanical, friction, chemical and hydro expanding.
