Shaft sinking equipment
ZS02

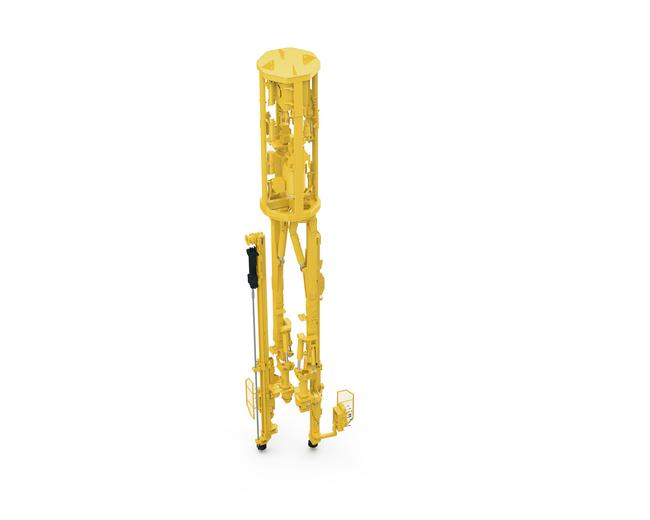

Shaft jumbo
- Number of booms 2
- Bucket well diameter (ft) 6 ft. 2 in
- Bucket well diameter (m) 1.88
- Resevoir capacity (L) 244
- Resevoir capacity (US gal) 64
A versatile shaft sinking jumbo
For exceptional versatility, the ZS02 jumbo can accommodate small to large shaft sizes. The two-boom configuration can help provides increased productivity and additional redundancy to ensure limited operational disruption.
- Ability to drill at 90 deg — allows for bolting and ease of starting stations
- 360 degree rotation at top turret on jumbos — maximizes boom coverage
Resources
Features and benefits
Performance drifters
Equipped with drifters manufactured by a leader in the industry, Montabert. Drifters can help lower operating costs and boost productivity through improved penetration rates using shockwave technology.
Drill at 90 degree
Drill holes at 90 degrees with the ZS02 added to your fleet. Shaft jumbos are capable of bolting efficiently and starting shaft stations easily. Versatile design reduces components and can help lower overall capital costs.
Maximum boom coverage
Can operate with a 360-degree rotation at the top turret so your operations can gain the benefits of maximum boom coverage. This innovative design can help make your operations more productive.
Auto parallelism
Precision and accuracy in a shaft sinking drill. The user-friendly auto-parallelism feature ensures the proper alignment of holes while helping to boost mucking productivity.
Nested cage structure
Engineered to reduce the required bucket well diameter in which the drill accesses the shaft bottom. This is achieved by the jumbo nesting within the cage structure.
Multiple boom options
Shaft jumbos can be modified to use one, two or three booms. Multiple boom capability provides increased productivity and additional redundancy to ensure limited service disruption.
