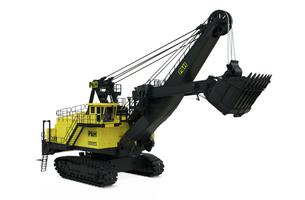

Electric rope shovel

1900XPC

Nominal payload 18 mt 20 st
Dipper capacity 11 m³ 14 yd³
Production 1 348 - 1 797 MTPH 1,486 - 1,981 TPH

View all specs

Request a quote Find a service location

Download a brochure

Overview
Specifications
Gallery

Performance and reliability for less

Offering the same performance you’ve come to expect from larger P&H shovels, the 1900XPC comes with a Centurion electrical control system that provides excellent bail pull for smooth, rapid passage of the dipper when encountering heavy digging.

Up to 22% less power consumed vs. 1900AL
Up to 46% less CO2 released per tonne of material moved compared to eqv HEX machines

Features and benefits

rope shovel_literature link_4100XPC_GPL8397.jpg

Centurion control system and AC drives

Get the performance and reliability you expect from the larger 4100XPC series shovels delivered in a smaller package with the P&H Centurion control system and ABB Mining Duty drives.

Electric rope shovels_2300XPC_Dual propel.png

Dual planetary propel

Improve your machine performance and reduce maintenance with dual planetary transmissions propel systems that build on the legacy and reliability of P&H manufacturing.

Twin leg handle

The P&H twin leg handle allows the shovel to engage the hardest of materials and easily focus on penetrating the bank instead of wasting energy on twisting or rotating the dipper.

Engineered for performance

In the mines, performance matters. The P&H 1900XPC was designed with the latest in advanced simulation software and built with high-quality steels that are meant to last for 120,000 hours.

Delta style undercarriage

Minimize maintenance with a proven shoe and tumbler that requires minimal intervention and allows for operation in a loose track configuration.

Designed for the challenges of developing markets

Everywhere you need to be. Leveraging global supply chains, we’re here to support you with an adaptable footprint and flexibility for import taxes and duties.

Specifications for 1900XPC

Full specifications for 1900XPC

Close all Expand all

US system Metric

Working ranges

Height of cut	13.0 m
Radius of cut	17.8 m
Dumping height* (door open)	8.2 m
Floor level radius	11.6 m
Tail swing radius	7.0 m
Operator eye level	7.4 m

*Height shown with bail-type dipper. Heights will be greater than bail-less or compact-bail dippers. Actual dumping height can be greater than door clearance height.

Height of cut	42 ft. 6 in
Radius of cut	58 ft. 6 in
Dumping height* (door open)	27 ft. 0 in
Floor level radius	38 ft. 0 in
Tail swing radius	23 ft. 0 in
Operator eye level	24 ft. 3 in

*Height shown with bail-type dipper. Heights will be greater than bail-less or compact-bail dippers. Actual dumping height can be greater than door clearance height.

Capacity

Nominal payload*	18 mt
Nominal dipper capacity*	10.7 m³
Range dipper capacity	7.5 - 19.1 m³
Rated suspended load	37.2 mt

*Payload and dipper capacity are dependent on many factors. Contact Komatsu Mining for an analysis of your specific application.

Nominal payload*	20 st
Nominal dipper capacity*	14 y³
Range dipper capacity	10 - 25 y³
Rated suspended load	41 st

*Payload and dipper capacity are dependent on many factors. Contact Komatsu Mining for an analysis of your specific application.

Overall dimensions

Width	8.05 m
Length	10.36 m
Height over gantry	10.11 m
Width of crawler shoes	1 066 mm 1 219 mm
Width of crawlers (42")	6.71 m
Length of crawlers	7.62 m
Ground clearance	0.66 m
Height - ground to bottom of counterweight slabs	1.70 m

Width	26 ft. 5 in
Length	34 ft. 0 in
Height over gantry	33 ft. 2 in
Width of crawler shoes	42 in 48 in
Width of crawlers (42")	22 ft. 0 in
Length of crawlers	25 ft. 0 in
Ground clearance	2 ft. 2 in
Height - ground to bottom of counterweight slabs	5 ft. 7 in
